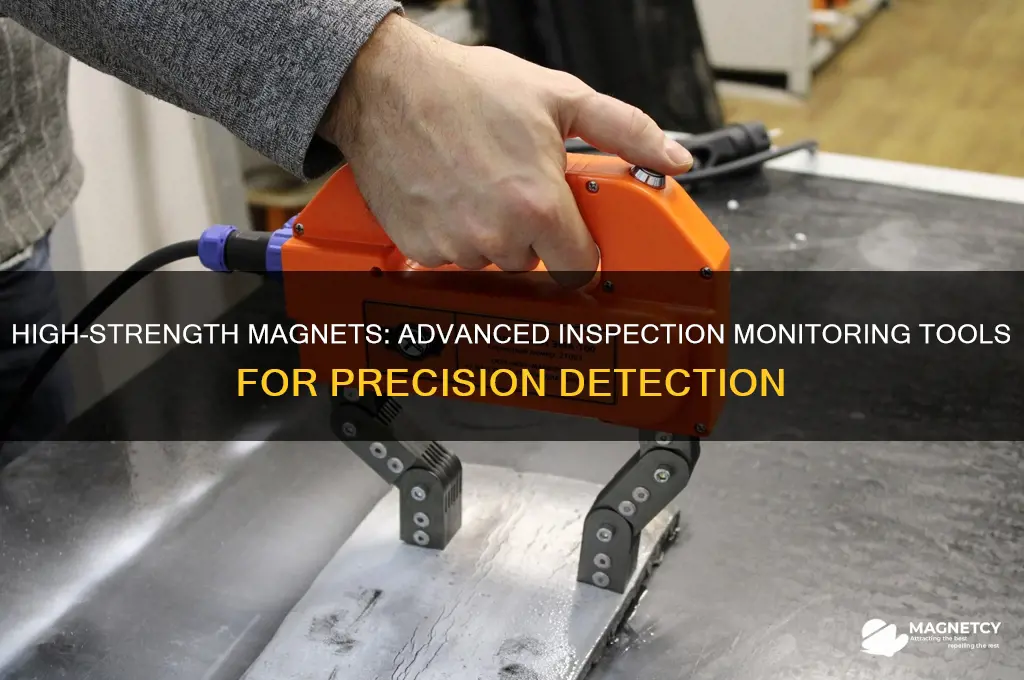

High-strength magnets are integral to certain inspection monitoring tools, particularly those used in non-destructive testing (NDT) and material examination. One prominent example is magnetic particle inspection (MPI), a technique that leverages powerful magnets to detect surface and near-surface flaws in ferromagnetic materials like iron, steel, and nickel. During MPI, a magnetic field is applied to the material, and magnetic particles (often iron oxide) are sprinkled onto its surface. These particles accumulate at areas of magnetic flux leakage, which occur where defects such as cracks or voids disrupt the material's magnetic continuity. This method is widely used in industries like aerospace, automotive, and manufacturing to ensure structural integrity and safety without damaging the inspected components.
Explore related products
What You'll Learn
Magnetic Particle Inspection (MPI) Basics
Magnetic Particle Inspection (MPI) is a non-destructive testing method that leverages high-strength magnets to detect surface and near-surface flaws in ferromagnetic materials. By applying a magnetic field to the material, MPI creates a visible indication of defects through the accumulation of magnetic particles on areas where the magnetic flux leaks out due to cracks or discontinuities. This technique is widely used in industries such as aerospace, automotive, and manufacturing to ensure structural integrity and safety.
To perform MPI, the process begins with thorough surface preparation. The material must be clean and free of dirt, grease, or paint that could obscure defects. Next, a magnetic field is induced using either a permanent magnet or an electromagnetic yoke. The direction of the magnetic field is critical; it should be perpendicular to the suspected flaw to maximize detection sensitivity. Magnetic particles, typically iron or fluorescent powders, are then applied to the surface. These particles are attracted to the magnetic flux leakage, forming patterns that reveal the location and extent of defects.
One of the key advantages of MPI is its ability to detect both surface and slightly subsurface flaws, typically up to 0.5 mm deep. However, the method is limited to ferromagnetic materials like iron, steel, nickel, and cobalt. Non-ferromagnetic materials such as aluminum or titanium cannot be inspected using MPI. Additionally, the technique is highly dependent on operator skill and interpretation, as the visibility of indications can vary based on lighting, particle type, and application method.
Practical tips for effective MPI include using fluorescent particles in low-light conditions to enhance visibility and employing a wet method (suspending particles in a liquid) for complex geometries. It’s also crucial to demagnetize the part after inspection to prevent interference with subsequent processes or material performance. While MPI is relatively quick and cost-effective, it requires careful execution to avoid false positives or negatives. When done correctly, MPI provides a reliable and efficient means of identifying critical defects before they lead to failure.
