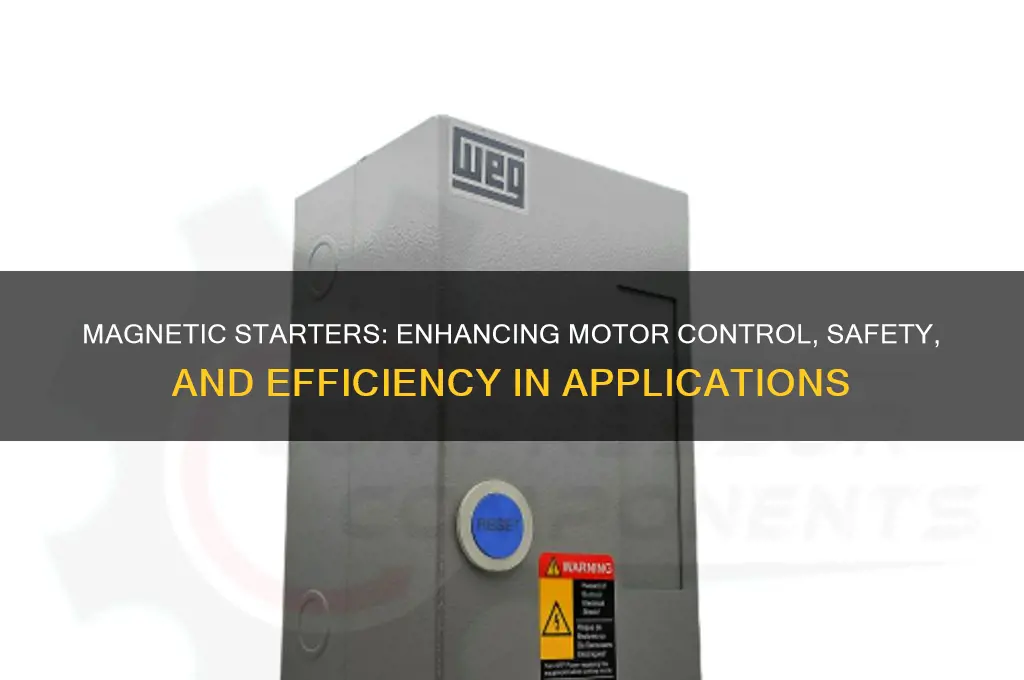

A magnetic starter is an essential device used in industrial and commercial applications to control the operation of electric motors safely and efficiently. It serves as a protective mechanism by providing overload protection, preventing motor damage due to excessive current, and ensuring smooth starting and stopping of motors. Magnetic starters also enhance safety by isolating the motor circuit, allowing for secure maintenance and reducing the risk of electrical accidents. Their ability to handle high inrush currents during motor startup and their compatibility with various motor sizes make them a reliable and versatile solution for motor control, ultimately improving system longevity and operational reliability.
| Characteristics | Values |
|---|---|
| Motor Protection | Protects motors from overloads, short circuits, and phase imbalances. |
| Remote Control | Allows for safe start/stop operations from a distance. |
| Reduced Wear | Minimizes mechanical wear on motor contacts and switches. |
| Overload Protection | Automatically trips to prevent motor damage due to excessive current. |
| Phase Loss Protection | Detects and protects against single or multiple phase failures. |
| Manual Reset | Requires manual intervention after tripping, ensuring operator awareness. |
| Compact Design | Space-efficient compared to traditional starter systems. |
| Energy Efficiency | Reduces energy consumption by optimizing motor startup. |
| Cost-Effective | Lower maintenance and operational costs over time. |
| Versatility | Suitable for various motor sizes and applications. |
| Enhanced Safety | Reduces risk of electrical accidents during operation. |
| Easy Installation | Simplified wiring and setup process. |
| Durability | Long lifespan due to fewer moving parts and robust construction. |
| Compatibility | Works with both single-phase and three-phase motors. |
| Diagnostic Features | Some models include indicators for fault diagnosis and monitoring. |
Explore related products
What You'll Learn
- Enhanced Motor Protection: Safeguards motors from overloads, short circuits, and phase imbalances effectively
- Simplified Control: Centralizes start, stop, and reversal functions for easy motor management
- Energy Efficiency: Reduces power consumption by optimizing motor startup and operation
- Extended Motor Life: Minimizes wear and tear by preventing frequent direct starts
- Safety Features: Includes thermal and magnetic trip mechanisms to prevent electrical hazards
Enhanced Motor Protection: Safeguards motors from overloads, short circuits, and phase imbalances effectively
Electric motors are the workhorses of industry, but they’re vulnerable to faults that can lead to costly downtime or permanent damage. Overloads, short circuits, and phase imbalances are silent predators, often striking without warning. A magnetic starter acts as a vigilant guardian, detecting these threats and responding instantly to protect the motor. Its bimetallic overload relays expand with heat, tripping the starter and cutting power before damage occurs. This proactive defense mechanism ensures motors operate within safe thermal limits, extending their lifespan and minimizing unexpected failures.
Consider a scenario where a conveyor belt motor is tasked with moving heavier loads than usual. The increased current causes the motor to overheat. Without protection, the insulation could melt, leading to a short circuit or even a fire. A magnetic starter, however, senses the overload, activates the overload relay, and halts the motor before temperatures reach critical levels. This not only prevents immediate damage but also allows operators to address the root cause—whether it’s an overloaded system or mechanical friction—before restarting.
Phase imbalances, often overlooked, can be just as destructive. They occur when one phase in a three-phase system carries significantly more current than the others, causing uneven heating and mechanical stress. Magnetic starters equipped with phase-loss protection detect these imbalances and disconnect the motor, preventing bearing wear, insulation breakdown, and premature failure. For instance, in a manufacturing plant, a phase imbalance in a pump motor could lead to reduced efficiency and eventual burnout. A magnetic starter with phase protection would isolate the motor, allowing maintenance teams to rebalance the system or repair faulty connections.
The effectiveness of a magnetic starter lies in its ability to combine multiple protective functions into a single, compact unit. Unlike manual resets or basic fuses, it provides automatic, instantaneous response to faults. This is particularly critical in high-demand applications like HVAC systems, where motors operate continuously. By safeguarding against overloads, short circuits, and phase imbalances, magnetic starters not only protect motors but also ensure uninterrupted operation, reducing the risk of production halts or safety hazards.
Incorporating a magnetic starter into your motor control system is a straightforward yet impactful upgrade. Start by selecting a starter rated for your motor’s full-load amps (FLA) and ensuring it includes overload relays and phase-loss protection. Regularly inspect the heater coils in the overload relays for proper calibration, as these are critical to accurate fault detection. For added safety, pair the starter with a ground fault relay to protect against electrical leaks. By investing in this technology, you’re not just protecting motors—you’re safeguarding your entire operation from the hidden dangers of electrical faults.
Neodymium Magnets: The Secret Behind Organized Spice Jar Storage
You may want to see also
Explore related products
Simplified Control: Centralizes start, stop, and reversal functions for easy motor management
Motor control can quickly become a tangled mess of wires and switches without a centralized system. A magnetic starter simplifies this complexity by consolidating start, stop, and reversal functions into a single, user-friendly interface. Imagine a manufacturing floor where operators need to manage multiple motors simultaneously. Instead of juggling individual switches for each function, a magnetic starter allows them to control all operations from one panel, reducing the risk of errors and streamlining workflows. This centralization is particularly beneficial in high-pressure environments where quick decision-making is critical.
From an operational standpoint, the magnetic starter acts as a command center for motor management. It eliminates the need for separate circuits or devices to handle starting, stopping, and reversing, which not only saves space but also reduces installation and maintenance costs. For instance, in a conveyor system, reversing the motor direction might otherwise require a complex relay setup. With a magnetic starter, this function is integrated, allowing operators to switch directions with a single command. This integration is especially valuable in applications where motors frequently change direction, such as in packaging machinery or automated assembly lines.
Safety is another critical aspect of simplified control. Magnetic starters often include built-in overload protection, which automatically shuts down the motor if it draws excessive current. This feature prevents motor damage and reduces the risk of electrical fires, a common hazard in industrial settings. For example, in a woodworking shop where motors power saws and routers, a magnetic starter can act as a safeguard, ensuring that overheating motors are immediately deactivated. This dual functionality—control and protection—makes magnetic starters indispensable in environments where both efficiency and safety are paramount.
Practical implementation of a magnetic starter requires careful consideration of the motor’s specifications. Ensure the starter’s rating matches the motor’s full-load amperage and voltage to avoid malfunctions. For instance, a 5-horsepower motor operating at 230 volts would typically require a starter rated for 15–20 amps. Additionally, when installing, position the starter in a location accessible to operators but away from dust or moisture, which can compromise its performance. Regularly inspect contacts for wear and clean them with a non-conductive brush to maintain optimal functionality. These steps ensure the magnetic starter remains a reliable tool for simplified motor control.
In summary, the magnetic starter’s ability to centralize start, stop, and reversal functions transforms motor management from a cumbersome task into a seamless operation. By consolidating control, reducing complexity, and enhancing safety, it becomes a cornerstone of efficient industrial systems. Whether in a small workshop or a large factory, the magnetic starter’s role in simplifying control is undeniable, making it a smart investment for any motor-driven application.
Crafting Magnets with a Button Maker: Creative DIY Possibilities
You may want to see also
Explore related products
Energy Efficiency: Reduces power consumption by optimizing motor startup and operation
Electric motors consume a staggering amount of global electricity, with startup drawing up to eight times their running current. This inrush of power not only strains the motor but also the entire electrical system, leading to energy waste and potential damage. Magnetic starters mitigate this by employing a set of contacts that initially provide a reduced voltage to the motor during startup. This "soft start" gradually ramps up the voltage, minimizing the initial current surge and reducing the overall power consumption during this critical phase.
Imagine a car accelerating from 0 to 60 mph in seconds versus a gradual increase in speed. The former guzzles fuel, while the latter is far more efficient. Similarly, a magnetic starter's soft start function optimizes motor startup, significantly reducing energy consumption and extending the motor's lifespan.
The benefits extend beyond startup. Magnetic starters often incorporate overload protection, safeguarding the motor from excessive current draw during operation. This prevents overheating and potential burnout, further enhancing energy efficiency by ensuring the motor operates within its optimal range. Think of it as a personal trainer monitoring your heart rate during exercise – keeping you in the "fat-burning zone" for maximum efficiency.
By preventing overloading and optimizing startup, magnetic starters contribute to substantial energy savings. Studies show that soft starters can reduce energy consumption during motor startup by up to 30%, translating to significant cost savings for industrial and commercial applications. This makes them a valuable tool in the pursuit of energy efficiency and sustainability.
Implementing magnetic starters is a straightforward process. They are available in various sizes and configurations to suit different motor types and applications. Consulting with a qualified electrician is crucial to ensure proper selection and installation. Remember, the initial investment in a magnetic starter is quickly offset by the long-term energy savings and extended motor life it provides.
Who Uses Magnetic Stripe Readers? Industries and Applications Explained
You may want to see also
Explore related products
Extended Motor Life: Minimizes wear and tear by preventing frequent direct starts
Direct-on-line (DOL) starting subjects motors to a surge of current up to 6-8 times their rated load, causing mechanical stress and insulation breakdown over time. Magnetic starters mitigate this by using a coil to close contacts, reducing inrush current and providing a smoother start. This is particularly critical for motors operating in high-cycle applications, such as conveyor systems or pumps, where frequent starts and stops are unavoidable. By absorbing the initial electrical spike, magnetic starters act as a buffer, preserving motor windings and bearings from premature degradation.
Consider a 10HP motor in a manufacturing facility starting 50 times per day. Without a magnetic starter, each start generates a 60-amp inrush, accelerating insulation aging and bearing wear. A magnetic starter reduces this to a controlled 20-amp ramp-up, cutting thermal stress by 67%. Over a year, this translates to an estimated 30% reduction in motor failure rates, saving approximately $2,500 in maintenance costs per motor. For operations with multiple motors, the cumulative savings and uptime improvements are substantial.
While magnetic starters excel in reducing start-related wear, they require proper sizing and maintenance. Oversized starters can lead to unnecessary energy consumption, while undersized units may fail to limit inrush effectively. Regularly inspect contacts for pitting or arcing, and ensure the coil voltage matches the motor’s specifications. For motors with start frequencies exceeding 20 cycles per hour, pair magnetic starters with thermal overload relays to prevent overheating. In dusty or corrosive environments, opt for sealed enclosures (NEMA 12 or higher) to protect internal components.
The longevity benefits of magnetic starters extend beyond the motor itself. By minimizing voltage drops during start-up, they protect downstream equipment from power fluctuations, reducing the risk of PLC resets or sensor malfunctions. In systems with variable torque loads, such as fans or compressors, magnetic starters can be combined with soft starters for even greater control, though this adds complexity and cost. For most industrial applications, a well-maintained magnetic starter offers the optimal balance of protection and simplicity, ensuring motors operate reliably for 15-20 years or more.
Building a Magnetic Ball Water Park: Creative DIY Guide
You may want to see also
Explore related products
Safety Features: Includes thermal and magnetic trip mechanisms to prevent electrical hazards
Electrical systems, particularly those powering heavy machinery, demand robust safeguards to mitigate risks. Magnetic starters excel in this role by incorporating dual trip mechanisms: thermal and magnetic. These features act as vigilant sentinels, detecting anomalies like overloads or short circuits and swiftly interrupting power to prevent catastrophic failures. Unlike basic circuit breakers, magnetic starters offer tailored protection for motor-driven equipment, ensuring both operator safety and equipment longevity.
Consider a scenario where a conveyor belt motor experiences a sudden overload due to jammed materials. The thermal trip mechanism, calibrated to the motor’s current rating, detects the excessive heat buildup. It triggers a shutdown before the insulation melts or the windings burn out. Simultaneously, if a short circuit occurs, the magnetic trip mechanism responds instantaneously, opening the circuit within milliseconds. This dual-layer defense minimizes downtime, repair costs, and the risk of electrical fires or shocks.
Implementing a magnetic starter with these safety features requires careful calibration. For instance, thermal overload relays should be set to 110–115% of the motor’s full-load current, allowing for brief surges during startup while preventing prolonged overloads. Magnetic trip settings, often adjustable, must align with the system’s fault current capacity. Regular maintenance, including testing the trip mechanisms quarterly and inspecting contacts for wear, ensures reliability. For high-risk environments, pair magnetic starters with ground fault protection for comprehensive safety.
The persuasive case for magnetic starters lies in their proactive approach to hazard prevention. Unlike reactive measures, such as fuses that require replacement, these mechanisms reset automatically after minor faults, restoring operation swiftly. For industries like manufacturing or mining, where equipment failure can halt production or endanger lives, this reliability is invaluable. Investing in magnetic starters with thermal and magnetic trips is not just a compliance measure—it’s a strategic decision to safeguard assets and personnel.
Finally, compare magnetic starters to alternative motor protection devices. While contactors offer basic control, they lack built-in overload protection. Fuses and circuit breakers, though effective for general circuits, may not respond swiftly enough to motor-specific faults. Magnetic starters, with their integrated thermal and magnetic trips, provide a holistic solution tailored to motor applications. This specificity makes them indispensable in environments where electrical safety is non-negotiable.
Troubleshooting Magnetic Lure Module: Common Issues and Solutions Explained
You may want to see also
Frequently asked questions
A magnetic starter is an electromagnetically operated switch used to control the starting, stopping, and reversing of electric motors. It is ideal for motor control because it provides overload protection, reduces mechanical wear on switches, and ensures safer operation by isolating the control circuit from the power circuit.
A magnetic starter offers several advantages over a manual switch, including built-in overload protection to prevent motor damage, remote control capabilities, and the ability to handle higher currents. It also reduces the risk of arcing and electrical hazards during operation.
Yes, a magnetic starter can extend the lifespan of an electric motor by providing overload protection, which prevents the motor from drawing excessive current that could cause overheating or burnout. It also ensures smooth starting and stopping, reducing mechanical stress on the motor.
Magnetic starters are typically used for three-phase AC induction motors, as they are designed to handle the high currents and specific control requirements of these motors. They may not be suitable for single-phase motors or specialized applications without additional components. Always check compatibility with your motor specifications.
