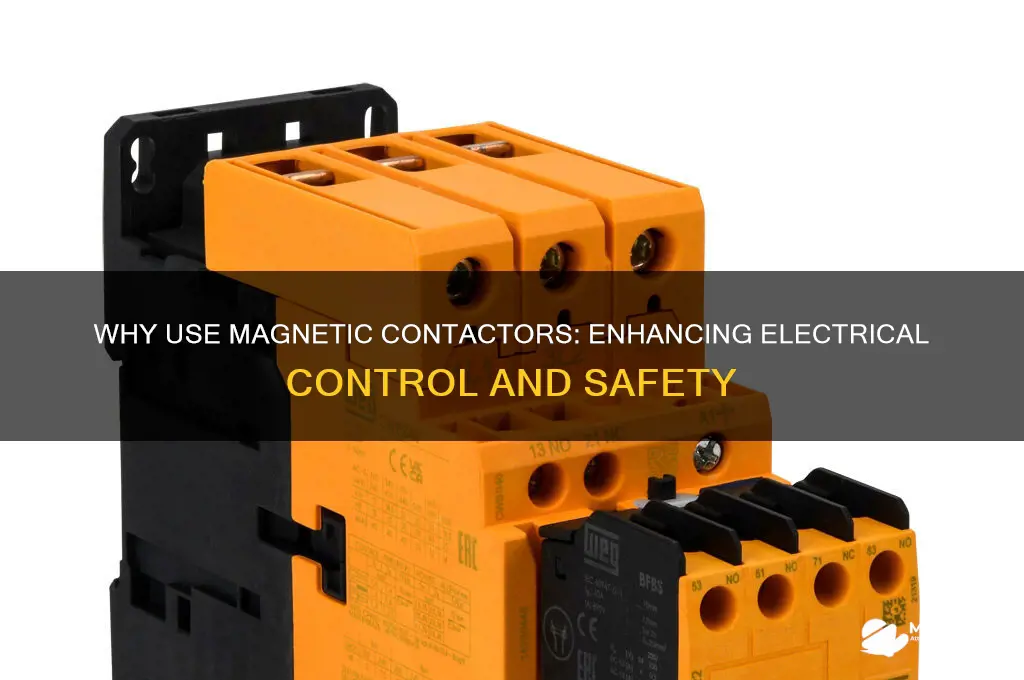

Magnetic contactors are essential components in electrical control systems, widely used to switch high-power loads such as motors, heaters, and lighting systems efficiently and safely. They operate using an electromagnet to close or open contacts, allowing for remote and automated control of electrical circuits without the need for manual intervention. The primary advantage of magnetic contactors lies in their ability to handle high currents and voltages while minimizing wear and tear on mechanical switches. Additionally, they enhance system reliability by providing overload and short-circuit protection when paired with thermal or electronic relays. Their compact design, durability, and ease of integration make them indispensable in industrial, commercial, and residential applications, ensuring smooth operation and prolonging the lifespan of connected equipment.
| Characteristics | Values |
|---|---|
| Remote Control | Allows for safe, remote operation of high-power circuits, reducing manual intervention risks. |
| High Switching Capacity | Handles heavy loads (up to thousands of amperes) and frequent switching cycles efficiently. |
| Long Lifespan | Durable design with minimal wear due to no physical contact during operation, ensuring longevity. |
| Low Power Consumption | Operates with a low-voltage control coil (e.g., 12V, 24V, or 110V), minimizing energy usage. |
| Fast Operation | Quick response time (milliseconds) for rapid circuit opening/closing. |
| Noise Reduction | Quieter operation compared to mechanical relays due to magnetic actuation. |
| Arc Suppression | Designed to minimize electrical arcing, reducing wear and improving safety. |
| Compact Size | Space-efficient design suitable for panel mounting and tight installations. |
| Versatility | Used in various applications: motors, lighting, HVAC, and industrial machinery. |
| Cost-Effective | Affordable compared to alternatives for high-power switching needs. |
| Overload Protection | Often integrated with thermal or electronic overload protection for motor control. |
| Manual Override | Includes a manual trip/reset mechanism for emergency shutdowns. |
| Low Maintenance | Requires minimal upkeep due to robust construction and fewer moving parts. |
| Environmental Resistance | Available in sealed or ruggedized versions for harsh conditions (dust, moisture, etc.). |
Explore related products
What You'll Learn
- Enhanced Safety: Isolates high-voltage circuits, protects operators from electrical hazards during equipment maintenance
- Remote Control: Enables switching motors/loads from a distance, ideal for industrial automation systems
- Longevity: Reduces manual switch wear, extends lifespan by handling high currents efficiently
- Overload Protection: Integrates with relays to prevent motor damage from excessive current
- Cost-Effective: Minimizes downtime, lowers maintenance costs compared to manual or mechanical switches
Enhanced Safety: Isolates high-voltage circuits, protects operators from electrical hazards during equipment maintenance
Electrical systems, particularly those involving high-voltage circuits, pose significant risks to operators during maintenance. A single misstep can lead to severe injuries or fatalities. Magnetic contactors address this critical issue by providing a reliable means to isolate high-voltage circuits, ensuring that equipment is de-energized before any work begins. This isolation is not just a convenience—it’s a fundamental safety measure that adheres to international standards like NFPA 70E and OSHA regulations. By physically breaking the circuit, magnetic contactors eliminate the risk of accidental energization, allowing operators to perform maintenance tasks without fear of electrical shock or arc flash incidents.
Consider the scenario of a manufacturing plant where machinery operates on 480V circuits. During routine maintenance, an operator needs to inspect or repair a motor. Without a magnetic contactor, the circuit remains live, and even a minor error in lockout/tagout procedures could result in catastrophic consequences. A magnetic contactor, when integrated into the system, ensures that the circuit is completely de-energized when the contactor is open. This mechanical isolation is visually verifiable—operators can see the contacts separated, providing an additional layer of assurance. For instance, contactors like the Allen-Bradley Bulletin 700 series are designed with a visible gap between contacts, making it clear when the circuit is safe to work on.
The effectiveness of magnetic contactors in enhancing safety is further amplified by their ability to handle high inrush currents and frequent switching operations without degradation. Unlike manual switches, which can wear out over time and become unreliable, magnetic contactors are built to withstand the rigors of industrial environments. For example, a contactor rated for 100,000 operations ensures long-term reliability, reducing the likelihood of failure during critical maintenance tasks. Additionally, many modern contactors feature auxiliary contacts that can be used to interlock safety systems, preventing accidental re-energization until maintenance is complete.
Practical implementation of magnetic contactors requires careful consideration of system requirements. Operators should select a contactor with a voltage rating that exceeds the system’s operating voltage by at least 20% to account for surges. For instance, a 600V contactor is ideal for a 480V system. Regular inspection and testing of the contactor’s contacts and coil are essential to ensure continued reliability. A simple multimeter test can verify coil integrity, while visual inspection can identify signs of arcing or pitting on the contacts. Training operators to recognize these indicators and perform basic troubleshooting can further enhance safety protocols.
In conclusion, magnetic contactors are indispensable tools for ensuring operator safety during equipment maintenance. By isolating high-voltage circuits and providing a clear, mechanical indication of de-energization, they mitigate the risks associated with electrical hazards. Their durability, reliability, and compatibility with safety interlocks make them a cornerstone of modern electrical safety practices. For anyone working with high-voltage systems, understanding and properly utilizing magnetic contactors is not just a best practice—it’s a lifesaving necessity.
Mastering the SCUF Magnetic Key: A Quick Usage Guide
You may want to see also
Explore related products
Remote Control: Enables switching motors/loads from a distance, ideal for industrial automation systems
In industrial settings, the ability to control motors and heavy loads remotely is not just a convenience—it’s a necessity. Magnetic contactors excel in this role by acting as a bridge between control systems and powered equipment, allowing operators to switch devices on or off from a safe distance. This capability is particularly critical in environments where machinery operates at high voltages or in hazardous conditions, such as chemical plants or manufacturing floors. By integrating magnetic contactors into automation systems, industries minimize the risk of operator injury and ensure seamless control over processes without physical proximity to the equipment.
Consider the operational flow of a large-scale conveyor system in a warehouse. Without remote control capabilities, workers would need to manually approach each motor to start or stop the system, a time-consuming and potentially dangerous task. Magnetic contactors, however, enable centralized control from a single panel or even a digital interface, streamlining operations and reducing downtime. For instance, a programmable logic controller (PLC) can trigger a magnetic contactor to activate a motor when a sensor detects a product on the conveyor, demonstrating how remote control enhances efficiency and precision in automated workflows.
The design of magnetic contactors also ensures reliability in remote applications. Their electromagnetic coils generate a strong, consistent force to open or close contacts, even under heavy loads or frequent cycling. This durability is essential in industrial automation, where equipment often operates 24/7. For example, in a water treatment plant, magnetic contactors can remotely manage pumps handling thousands of gallons per minute, ensuring uninterrupted service without requiring manual intervention. This level of dependability makes them a cornerstone of modern automation systems.
Implementing remote control via magnetic contactors requires careful planning to maximize safety and efficiency. Start by mapping out the control circuit, ensuring the contactor’s coil voltage matches the control system’s output (commonly 12V, 24V, or 110V). Use a normally open (NO) or normally closed (NC) configuration based on the application—for instance, NO contacts are ideal for starting motors, while NC contacts can serve as safety interlocks. Always incorporate overload protection devices, such as thermal relays, to safeguard motors from damage. Regularly inspect contacts for wear and ensure the control panel is accessible only to authorized personnel to prevent accidental activation.
The takeaway is clear: magnetic contactors are indispensable for remote control in industrial automation, offering a blend of safety, efficiency, and reliability. By enabling operators to manage motors and loads from a distance, they not only protect personnel but also optimize productivity. Whether in a factory, utility plant, or logistics hub, the strategic use of magnetic contactors transforms complex systems into streamlined, controllable processes. For engineers and operators alike, mastering their application is key to unlocking the full potential of modern automation.
Reusing Phone Magnets with Car Mounts: Tips and Best Practices
You may want to see also
Explore related products
Longevity: Reduces manual switch wear, extends lifespan by handling high currents efficiently
Magnetic contactors are engineered to handle high currents with precision, a task that would prematurely wear out manual switches. Consider a manufacturing plant where motors draw currents exceeding 50 amperes. A manual switch, subjected to such loads daily, would degrade within months due to arcing and mechanical stress. Magnetic contactors, however, use electromagnetic coils to open and close contacts, eliminating direct manual interaction. This design not only preserves the integrity of the switch but also ensures consistent performance over years, even under heavy industrial use.
The efficiency of magnetic contactors in managing high currents directly translates to extended lifespans for electrical systems. For instance, in HVAC systems, contactors handle currents up to 100 amperes, cycling thousands of times annually. Without a magnetic contactor, a mechanical switch would fail within 1-2 years due to contact erosion and overheating. By contrast, a magnetic contactor can last 5-10 years, reducing downtime and maintenance costs. This longevity is particularly critical in applications where frequent switching is unavoidable, such as in conveyor systems or pumping stations.
To maximize the lifespan of a magnetic contactor, proper installation and maintenance are essential. Ensure the contactor is rated for the specific current load of the application—overloading can lead to coil burnout or contact welding. Regularly inspect contacts for pitting or discoloration, and clean them with a non-abrasive solvent if necessary. For high-humidity environments, consider using contactors with sealed enclosures to prevent corrosion. Following these steps can further extend the contactor’s lifespan, making it a cost-effective solution for long-term electrical control.
Comparing magnetic contactors to manual switches highlights their superiority in durability. While a manual switch relies on physical force to operate, leading to wear and tear, a magnetic contactor uses minimal mechanical movement, reducing friction and stress. This difference is especially evident in applications like cranes or elevators, where frequent starts and stops are common. A magnetic contactor’s ability to handle such demands without degradation makes it indispensable in industries where reliability and longevity are non-negotiable.
In summary, magnetic contactors are not just a convenience but a necessity for systems requiring robust, long-lasting electrical control. By reducing manual switch wear and efficiently managing high currents, they ensure operational continuity and minimize replacement costs. Whether in industrial machinery, commercial HVAC, or residential automation, their role in extending system lifespans is undeniable. Investing in magnetic contactors is, therefore, a proactive step toward maintaining efficient and durable electrical infrastructure.
Mastering Magnetism: A Step-by-Step Guide to Building and Using Magnets
You may want to see also
Explore related products
Overload Protection: Integrates with relays to prevent motor damage from excessive current
Motors are the workhorses of industry, but they’re not invincible. Excessive current, often caused by overloading or faults, can lead to overheating, insulation breakdown, and catastrophic failure. This is where magnetic contactors, paired with overload relays, step in as a critical safeguard. Overload relays monitor the motor’s current draw, and when it exceeds a preset threshold (typically 110-125% of the motor’s full-load amperage), they trip the contactor, cutting power and preventing damage. Think of it as a circuit breaker specifically tailored to protect motors from their own enthusiasm.
Integrating overload protection with a magnetic contactor offers a layered defense. The contactor handles the high-current switching, ensuring smooth starts and stops, while the relay acts as a vigilant watchdog. This combination is particularly crucial in applications where motors operate under variable loads or in harsh conditions. For instance, a conveyor belt motor might experience sudden spikes in current when handling heavy materials. Without overload protection, these spikes could lead to winding burnout. With it, the system shuts down temporarily, allowing the motor to cool before resuming operation.
Selecting the right overload relay is as important as choosing the contactor itself. Relays are typically rated for specific motor sizes and come with adjustable trip settings. For example, a 10HP motor might require a relay with a trip class of 10 or 20, depending on the application’s duty cycle. Class 10 relays trip faster, offering tighter protection for motors operating under frequent starts and stops, while Class 20 relays allow for longer overloads, suitable for motors with occasional high-load conditions. Always consult the motor’s nameplate data and application requirements to ensure compatibility.
One practical tip: regularly test the overload relay’s functionality. Over time, mechanical components can wear or become misaligned, potentially leading to false trips or failures to trip. Most relays have a test button that simulates an overload condition. Press it periodically to ensure the contactor disengages as expected. Additionally, inspect the relay’s heater elements (the components that sense current) for signs of damage or corrosion. A well-maintained overload relay is the difference between a minor shutdown and a major motor replacement.
In summary, overload protection integrated with magnetic contactors is not just a feature—it’s a necessity for motor longevity and operational reliability. By combining the switching capability of the contactor with the protective intelligence of the relay, this system ensures motors operate within safe limits, even under demanding conditions. Whether you’re managing a small workshop or a large industrial facility, investing in this dual-protection setup pays dividends in reduced downtime, lower maintenance costs, and extended equipment life.
Do Railguns Use Magnets? Unveiling the Science Behind Electromagnetic Launchers
You may want to see also
Explore related products
Cost-Effective: Minimizes downtime, lowers maintenance costs compared to manual or mechanical switches
Magnetic contactors are engineered to handle high-current loads with precision, a task that manual or mechanical switches often struggle with over time. Unlike their counterparts, which rely on physical movement and are prone to wear, magnetic contactors use an electromagnetic coil to open or close circuits. This design minimizes mechanical stress, reducing the frequency of failures and the need for replacements. For instance, in industrial settings, a magnetic contactor can operate millions of cycles before requiring maintenance, whereas a mechanical switch might fail after just a fraction of that usage.
Consider the scenario of a manufacturing plant where downtime translates directly into lost revenue. A manual switch, when faulty, could halt production for hours or even days while technicians diagnose and replace it. In contrast, a magnetic contactor’s reliability ensures that such interruptions are rare. Its ability to handle high inrush currents without damage—a common issue with mechanical switches—further protects connected equipment, avoiding costly repairs. For example, a 3-phase magnetic contactor rated for 100A can safely manage motor startups, preventing overheating and extending the lifespan of both the switch and the motor.
From a maintenance perspective, magnetic contactors offer a clear advantage in accessibility and diagnostics. Most models feature modular designs, allowing technicians to replace only the faulty component—such as the coil or contacts—rather than the entire unit. This not only lowers repair costs but also reduces the time equipment is offline. Additionally, many modern magnetic contactors include built-in indicators or smart monitoring capabilities, enabling predictive maintenance. For instance, a contactor with a wear indicator can alert operators when contacts are nearing the end of their life, scheduling maintenance during planned downtime rather than reacting to unexpected failures.
The cost savings extend beyond the contactor itself. By minimizing downtime and maintenance, magnetic contactors indirectly reduce labor costs associated with troubleshooting and repairs. In a large facility with dozens of motors, the cumulative effect of these savings can be substantial. For example, replacing 20 mechanical switches with magnetic contactors could save upwards of $50,000 annually in maintenance and lost production time, depending on the industry and scale of operations. This makes magnetic contactors a strategic investment, particularly in environments where reliability and efficiency are non-negotiable.
Finally, the long-term cost-effectiveness of magnetic contactors is evident in their adaptability to evolving systems. As industries adopt automation and IoT technologies, magnetic contactors can seamlessly integrate with control systems, offering remote monitoring and control capabilities. This future-proofing ensures that the initial investment pays dividends over time, as the contactor remains compatible with upgrades and expansions. In contrast, manual or mechanical switches often become obsolete or incompatible with newer systems, necessitating costly overhauls. By choosing magnetic contactors, businesses not only address current needs but also position themselves for sustained efficiency and reduced operational costs.
Mastering Work Calculation with Magnet Generators: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A magnetic contactor is an electrically controlled switch used for switching an electrical power circuit. It is ideal for applications requiring frequent switching, as it provides reliable, remote control of high-power loads, reduces manual intervention, and enhances safety by isolating the control circuit from the power circuit.
Magnetic contactors are preferred over manual switches for motor control because they allow for remote operation, reduce wear and tear on switches, and provide overload protection when paired with thermal relays. They also enable faster and safer switching of high-current loads.
In industrial applications, magnetic contactors offer durability, high switching capacity, and the ability to handle frequent start/stop cycles. They also improve system efficiency, reduce downtime, and enhance safety by preventing electrical arcs during switching operations.
