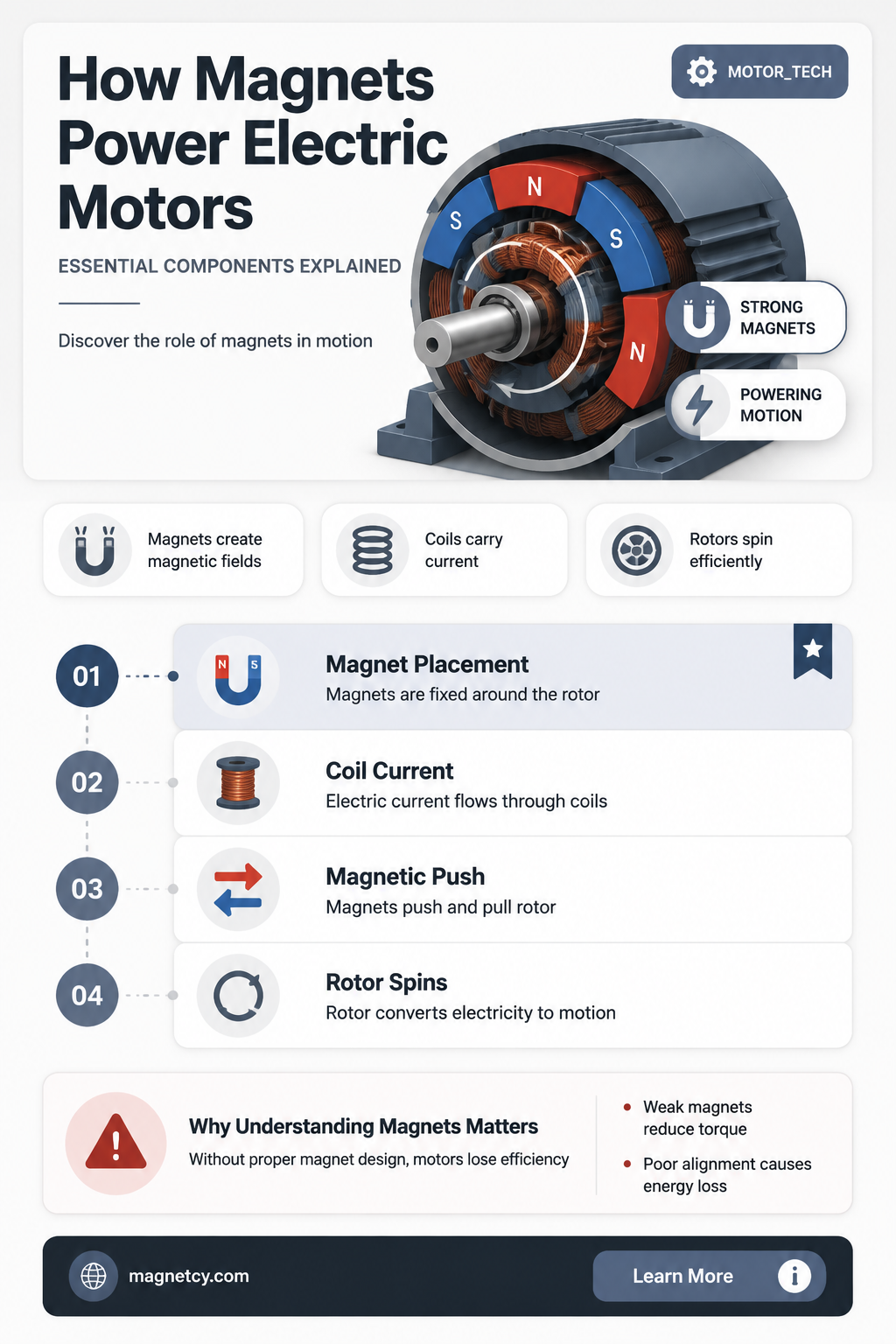

Magnets play a crucial role in the operation of electric motors, serving as a fundamental component in their design and functionality. Electric motors rely on the interaction between magnetic fields and electric currents to generate mechanical motion, and magnets are often used to create these magnetic fields. Permanent magnets, typically made from materials like neodymium or ferrite, are commonly employed in various motor types, including brushed DC motors and brushless DC motors. When an electric current passes through the motor's windings, it interacts with the magnetic field produced by the magnets, resulting in a force that drives the motor's rotor to rotate. This principle, known as electromagnetic induction, is the basis for the conversion of electrical energy into mechanical energy in electric motors, making magnets an essential element in their construction and performance.
| Characteristics | Values |
|---|---|
| Are magnets used in electric motors? | Yes |
| Types of Magnets Used | Permanent magnets (e.g., neodymium, ferrite) and electromagnets |
| Primary Function | Create magnetic fields to interact with electric currents, producing rotational motion |
| Motor Types Using Permanent Magnets | Brushless DC (BLDC) motors, Permanent Magnet Synchronous Motors (PMSM), Stepper motors |
| Motor Types Using Electromagnets | Induction motors, Reluctance motors (some variants) |
| Advantages of Permanent Magnets | Higher efficiency, compact size, reduced energy loss |
| Disadvantages of Permanent Magnets | Cost of rare-earth magnets, temperature sensitivity, demagnetization risk |
| Advantages of Electromagnets | Adjustable magnetic field strength, lower cost for some applications |
| Disadvantages of Electromagnets | Requires continuous power supply, larger size, lower efficiency |
| Key Applications | Automotive (EVs), industrial machinery, household appliances, aerospace |
| Recent Trends | Increased use of rare-earth magnets for high-performance motors, development of magnet-free motor designs (e.g., reluctance motors) |
| Environmental Impact | Mining of rare-earth materials raises sustainability concerns, driving research into alternative materials |
Explore related products
What You'll Learn
- Magnet Types: Permanent vs. electromagnets in motor design and their efficiency impact
- Magnetic Fields: Role of magnetic fields in generating motor torque and rotation
- Motor Efficiency: How magnets enhance energy conversion and reduce power losses
- Brushless Motors: Use of permanent magnets in brushless DC motor operation
- Magnet Materials: Selection of materials like neodymium for optimal motor performance
Magnet Types: Permanent vs. electromagnets in motor design and their efficiency impact
Electric motors rely heavily on magnets to generate the rotational force needed to perform work. The choice between permanent magnets and electromagnets in motor design significantly impacts efficiency, cost, and performance. Permanent magnets, typically made from rare-earth materials like neodymium, offer strong, consistent magnetic fields without requiring external power. This makes them ideal for applications where energy efficiency and compact size are critical, such as in electric vehicles and high-efficiency industrial motors. However, their cost and vulnerability to demagnetization at high temperatures limit their use in certain scenarios.
Electromagnets, on the other hand, are created by passing current through a coil of wire, allowing their magnetic strength to be adjusted dynamically. This flexibility is advantageous in variable-speed drives and applications requiring precise control, such as robotics or HVAC systems. While electromagnets eliminate the need for rare-earth materials, they consume additional energy to maintain their magnetic field, reducing overall efficiency compared to permanent magnets. Designers must weigh the trade-offs between controllability and energy consumption when selecting this type.
A key factor in efficiency is the power density of the magnet. Permanent magnets provide higher power density, enabling smaller, lighter motors with reduced material usage. For instance, a neodymium-based motor can achieve efficiencies above 95% in optimal conditions, making it a top choice for energy-conscious industries. Electromagnets, while less efficient, excel in applications where adaptability outweighs energy savings, such as in adjustable-speed pumps or conveyor systems.
Practical considerations also play a role. Permanent magnets require careful thermal management to prevent demagnetization, often necessitating cooling systems in high-temperature environments. Electromagnets, meanwhile, demand robust power electronics to control current flow, adding complexity and potential failure points. For engineers, the decision hinges on balancing initial costs, operational efficiency, and the specific demands of the application.
In summary, permanent magnets offer superior efficiency and compactness but come with material and thermal constraints, while electromagnets provide flexibility at the expense of energy consumption. By understanding these trade-offs, designers can optimize motor performance for their intended use, ensuring both functionality and sustainability.
Harnessing Magnetic Power: DIY Electricity with Copper Wire and Magnets
You may want to see also
Explore related products
Magnetic Fields: Role of magnetic fields in generating motor torque and rotation
Magnetic fields are the invisible force that drives the rotation and torque in electric motors, acting as the linchpin between electrical energy and mechanical motion. When an electric current passes through a coil of wire, it generates a magnetic field around the conductor. This field interacts with the permanent magnets or electromagnets within the motor, creating a force that causes the rotor to turn. The principle of electromagnetic induction, discovered by Michael Faraday, underpins this process, demonstrating how magnetic fields and electric currents are intrinsically linked in motor operation.
To understand the role of magnetic fields in generating torque, consider the interaction between the stator and rotor in a typical DC motor. The stator’s magnetic field, produced by either permanent magnets or electromagnets, remains stationary. The rotor, equipped with its own windings, carries a current that generates a second magnetic field. According to Fleming’s Left-Hand Rule, the interaction between these two fields results in a force that produces rotational motion. The torque generated is directly proportional to the strength of the magnetic fields and the current flowing through the rotor, making magnetic field optimization critical for motor efficiency.
A practical example of magnetic field utilization is found in brushless DC (BLDC) motors, widely used in applications like drones and electric vehicles. In BLDC motors, permanent magnets on the rotor align with the stator’s electromagnets in a precise sequence, controlled by electronic commutation. This design eliminates the need for brushes, reducing wear and increasing efficiency. The magnetic fields’ role here is twofold: they provide the driving force for rotation and ensure smooth, continuous motion by dynamically adjusting the stator’s field to “pull” the rotor forward. For optimal performance, engineers must carefully calibrate the magnet strength and positioning, typically using neodymium magnets for their high magnetic flux density.
While magnetic fields are essential, their misuse or improper configuration can lead to inefficiencies or motor failure. For instance, magnetic saturation in the core material can limit a motor’s ability to generate torque, while uneven magnetic fields can cause vibration or noise. To mitigate these issues, designers often employ techniques like skewing the rotor or stator slots to reduce cogging torque. Additionally, using laminated core materials helps minimize eddy current losses, which can weaken the magnetic field. For hobbyists or DIY enthusiasts, a practical tip is to ensure magnets are securely mounted and aligned, as even minor misalignment can significantly impact performance.
In conclusion, magnetic fields are not just a component of electric motors—they are the catalyst that transforms electrical energy into mechanical work. By understanding their role in generating torque and rotation, engineers and enthusiasts alike can optimize motor designs for efficiency, reliability, and performance. Whether in industrial machinery or consumer electronics, the precise manipulation of magnetic fields remains a cornerstone of modern motor technology.
Mastering Blox Fruits: Effective Monster Magnet Usage Guide
You may want to see also
Explore related products
Motor Efficiency: How magnets enhance energy conversion and reduce power losses
Magnets are integral to the operation of electric motors, serving as the backbone of energy conversion from electrical to mechanical power. In a typical motor, permanent magnets or electromagnets create a magnetic field that interacts with electric currents to produce rotational motion. This process, however, is not inherently efficient; energy losses occur due to heat generation, magnetic hysteresis, and eddy currents. To combat these inefficiencies, engineers leverage the unique properties of magnets to optimize motor performance. For instance, rare-earth magnets like neodymium offer higher magnetic flux density, enabling motors to achieve greater torque with less electrical input, thereby reducing power losses.
Consider the role of magnet placement and design in enhancing motor efficiency. Strategic positioning of magnets within the motor’s rotor and stator minimizes air gaps, ensuring a stronger, more uniform magnetic field. This reduces the energy required to maintain rotation and decreases resistive losses in the windings. Additionally, segmented magnet designs, such as those used in brushless DC motors, allow for precise control of magnetic flux, further improving efficiency. For example, a motor with a 10% reduction in air gap can achieve up to a 5% increase in overall efficiency, translating to significant energy savings in industrial applications.
From a practical standpoint, selecting the right magnet material is critical for maximizing efficiency. Ferrite magnets, while cost-effective, have lower magnetic strength compared to rare-earth alternatives, making them less suitable for high-performance motors. Conversely, samarium-cobalt and neodymium magnets, despite their higher cost, offer superior magnetic properties that justify their use in applications demanding high efficiency, such as electric vehicles and aerospace systems. For instance, a neodymium-based motor can operate at efficiencies above 90%, compared to 80-85% for ferrite-based counterparts, making it a preferred choice for energy-sensitive industries.
To illustrate the impact of magnets on motor efficiency, examine the case of regenerative braking systems in electric vehicles. Here, magnets enable the motor to act as a generator during deceleration, converting kinetic energy back into electrical energy. This process, known as regenerative braking, relies on the precise alignment and strength of magnets to maximize energy recovery. Without high-performance magnets, the system would suffer from increased heat dissipation and reduced efficiency, negating the benefits of energy recapture. Practical tips for optimizing such systems include regular magnet alignment checks and using temperature-resistant coatings to prevent demagnetization.
In conclusion, magnets are not merely components in electric motors but catalysts for enhanced efficiency. By improving magnetic field strength, reducing air gaps, and enabling advanced functionalities like regenerative braking, magnets play a pivotal role in minimizing power losses and maximizing energy conversion. Whether in industrial machinery or cutting-edge electric vehicles, the strategic use of magnets ensures motors operate at peak performance, contributing to both economic and environmental sustainability. For engineers and designers, understanding the interplay between magnet properties and motor efficiency is essential for creating systems that meet the demands of modern technology.
Mastering VNS Magnet: A Step-by-Step Guide for Effective Use
You may want to see also
Explore related products
Brushless Motors: Use of permanent magnets in brushless DC motor operation
Permanent magnets are integral to the operation of brushless DC (BLDC) motors, serving as the cornerstone of their efficiency and reliability. Unlike brushed motors, which rely on physical contact between brushes and a commutator, BLDC motors use a fixed permanent magnet rotor and an electronically controlled stator. This design eliminates friction, reduces wear, and enhances longevity, making BLDC motors ideal for applications requiring high efficiency and low maintenance, such as drones, electric vehicles, and HVAC systems.
The role of permanent magnets in BLDC motors is twofold: they create a stable magnetic field and interact with the stator’s electromagnetic field to produce motion. Typically, rare-earth magnets like neodymium are used due to their high magnetic strength and temperature stability. These magnets are mounted on the rotor, ensuring a consistent magnetic flux. The stator, composed of laminated iron cores with windings, generates a rotating magnetic field when energized by a controller. The interaction between the rotor’s permanent magnets and the stator’s field causes the rotor to turn, converting electrical energy into mechanical motion.
One critical aspect of BLDC motor design is the electronic commutation system, which replaces the mechanical brushes. This system uses Hall effect sensors or back-EMF detection to determine the rotor’s position and precisely time the switching of current in the stator windings. Proper alignment of the permanent magnets with the sensor signals is essential for smooth operation. For instance, a 3-phase BLDC motor requires the magnets to be positioned such that the sensor detects the rotor’s orientation accurately, ensuring seamless phase transitions and efficient torque production.
Practical considerations for using permanent magnets in BLDC motors include temperature management and magnetic degradation. Neodymium magnets, while powerful, can demagnetize at temperatures above 150°C. Engineers often incorporate cooling systems or select magnet grades with higher Curie temperatures for high-power applications. Additionally, the cost of rare-earth magnets can be a limiting factor, driving research into alternative materials like ferrite magnets, which are less expensive but offer lower magnetic strength.
In summary, permanent magnets are not just components but the lifeblood of brushless DC motors, enabling their compact size, high efficiency, and brushless operation. By understanding their role, design nuances, and practical challenges, engineers can optimize BLDC motors for specific applications, ensuring performance and durability in an increasingly electrified world.
Magnetic Chargers for iPhone: Safety Concerns and Benefits Explained
You may want to see also
Explore related products
Magnet Materials: Selection of materials like neodymium for optimal motor performance
Electric motors rely on magnets to generate the rotational force that drives their operation. The choice of magnet material is critical, as it directly impacts motor efficiency, size, and cost. Among the various options, neodymium magnets stand out for their exceptional magnetic strength, making them a preferred choice in high-performance applications. However, selecting the right magnet material involves balancing factors like temperature stability, cost, and environmental considerations.
Neodymium magnets, composed of neodymium, iron, and boron (NdFeB), offer the highest magnetic energy product available, often exceeding 50 MGOe. This allows for smaller, lighter motors without sacrificing power. For instance, in automotive applications, neodymium magnets enable compact electric vehicle traction motors that deliver high torque at low speeds. However, their performance degrades at temperatures above 150°C, necessitating cooling systems or alternative materials in high-temperature environments. Additionally, neodymium’s susceptibility to corrosion requires protective coatings like nickel or epoxy to ensure longevity.
While neodymium dominates high-performance motors, other materials like samarium-cobalt (SmCo) and ferrite magnets offer viable alternatives under specific conditions. SmCo magnets, though more expensive, retain their magnetic properties at temperatures up to 300°C, making them suitable for aerospace or industrial motors operating in extreme heat. Ferrite magnets, on the other hand, are cost-effective and resistant to demagnetization but have lower magnetic strength, limiting their use to less demanding applications like fans or pumps. The selection process thus hinges on the motor’s operating environment and performance requirements.
Cost is another critical factor in material selection. Neodymium prices fluctuate due to supply chain dependencies, particularly on rare earth elements. Engineers often weigh the upfront cost against long-term benefits, such as energy savings from higher efficiency. For example, a neodymium-based motor might be 20–30% more efficient than a ferrite counterpart, translating to significant energy savings over its lifespan. Recycling neodymium magnets is also gaining traction, offering a sustainable solution to mitigate material costs and environmental impact.
In practice, selecting magnet materials requires a systematic approach. Start by defining the motor’s operational parameters, including temperature range, required torque, and size constraints. Evaluate candidate materials based on their magnetic properties, thermal stability, and cost. For instance, a motor in a hybrid vehicle might prioritize neodymium for its power density, while a household appliance could opt for ferrite to reduce costs. Finally, consider manufacturing and environmental factors, such as the availability of protective coatings or recycling infrastructure. By carefully weighing these elements, engineers can optimize motor performance while aligning with project goals.
ECT and Magnetic Seizure Therapy: Are These Treatments Still Relevant?
You may want to see also
Frequently asked questions
Yes, magnets are a fundamental component in many electric motors, particularly in permanent magnet motors and brushless DC motors.
Permanent magnets made from materials like neodymium, ferrite, or samarium-cobalt are commonly used due to their strong magnetic properties and durability.
Magnets create a magnetic field that interacts with the current-carrying conductors (windings) in the motor, producing torque and enabling rotation.
Yes, some electric motors, such as induction motors, do not require permanent magnets and instead rely on electromagnetic induction to generate the necessary magnetic fields.
