Logan Foster

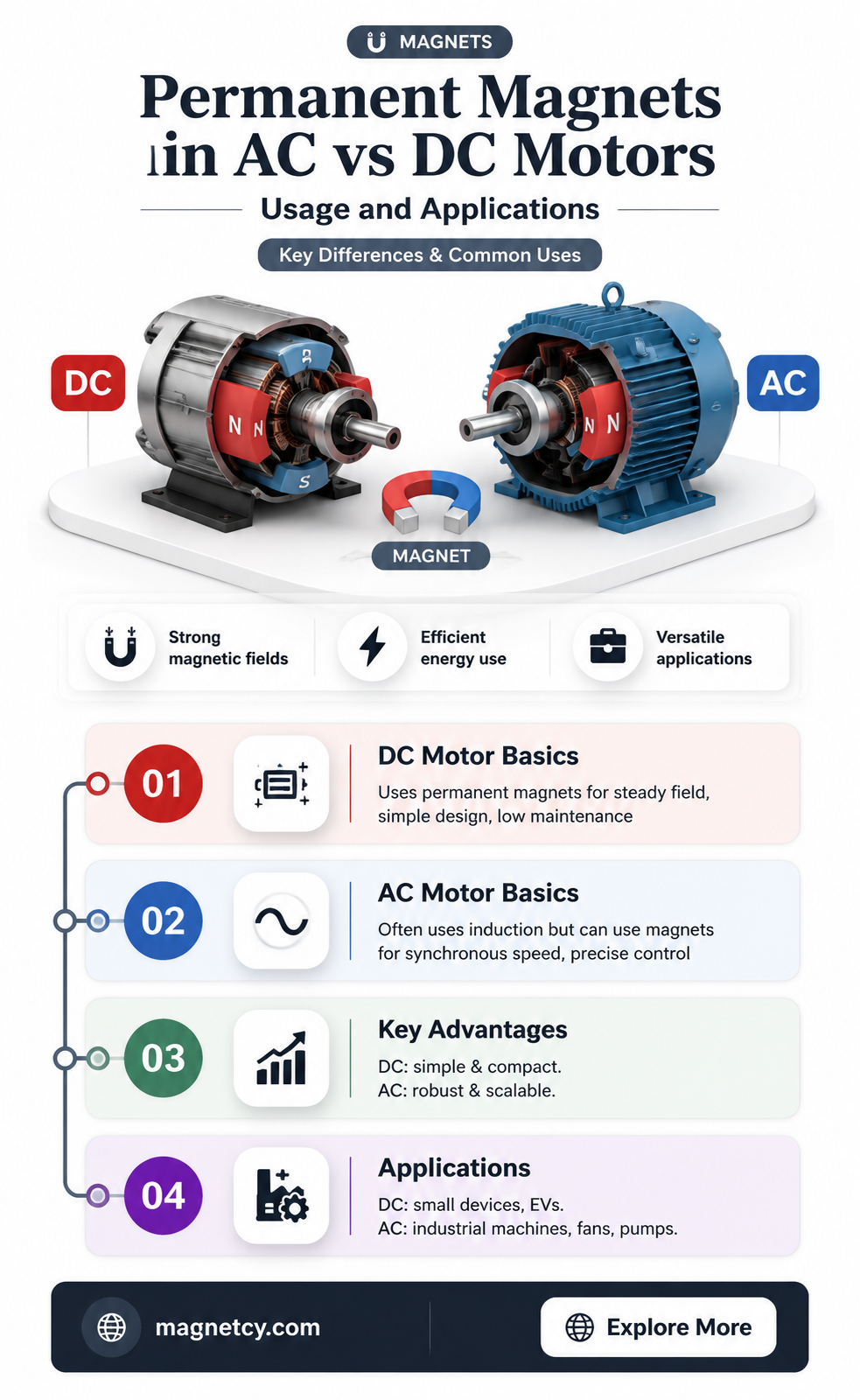

Permanent magnets are widely used in both AC (alternating current) and DC (direct current) motors, though their application differs between the two types. In DC motors, permanent magnets are commonly employed in the stator to create a static magnetic field that interacts with the current-carrying rotor, enabling efficient torque generation. In AC motors, particularly in brushless DC (BLDC) motors and some types of synchronous AC motors, permanent magnets are often used in the rotor to eliminate the need for a commutator and brushes, reducing maintenance and improving reliability. However, in traditional induction AC motors, permanent magnets are less common, as these motors rely on induced currents in the rotor rather than permanent magnetic fields. Thus, the use of permanent magnets depends on the motor design and its intended application.
| Characteristics | Values |
|---|---|
| Use in AC Motors | Yes, permanent magnets are used in some AC motors, particularly in Brushless DC (BLDC) motors, which are often referred to as AC motors due to their electronic commutation. |
| Use in DC Motors | Yes, permanent magnets are commonly used in DC motors, such as Permanent Magnet DC (PMDC) motors. |
| Magnet Type | Typically rare-earth magnets (e.g., Neodymium, Samarium-Cobalt) or Ferrite magnets. |
| Advantages in AC Motors | High efficiency, reduced size and weight, lower maintenance (no brushes), and improved torque-to-weight ratio. |
| Advantages in DC Motors | Simplicity, cost-effectiveness, and high starting torque. |
| Disadvantages in AC Motors | Higher cost due to electronic commutation and control circuitry. |
| Disadvantages in DC Motors | Brush wear in brushed DC motors, which can limit lifespan and require maintenance. |
| Applications in AC Motors | HVAC systems, electric vehicles, industrial machinery, and consumer appliances. |
| Applications in DC Motors | Power tools, automotive systems (e.g., windshield wipers), and small household appliances. |
| Efficiency | Generally higher in permanent magnet motors compared to induction motors or brushed DC motors. |
| Cost | Higher initial cost due to permanent magnets, especially rare-earth types, but often offset by long-term energy savings. |
| Torque Characteristics | Permanent magnet motors provide high torque at low speeds, making them suitable for applications requiring precise control. |
| Environmental Impact | Rare-earth magnets have environmental concerns due to mining and processing, but they contribute to energy efficiency in motors. |
| Maintenance | Lower maintenance in brushless designs (AC/BLDC) compared to brushed DC motors. |
| Size and Weight | Compact and lightweight due to the strong magnetic field provided by permanent magnets. |
Explore related products
What You'll Learn
- Permanent magnets in DC motors: efficiency and performance benefits
- AC motor designs using permanent magnets: synchronous and induction types
- Cost comparison: permanent magnets vs. electromagnets in motor applications
- Magnetic materials: neodymium, ferrite, and their impact on motor operation
- Permanent magnet motors: applications in electric vehicles and renewable energy systems
Permanent magnets in DC motors: efficiency and performance benefits
Permanent magnets play a pivotal role in enhancing the efficiency and performance of DC motors, offering distinct advantages over their electromagnet counterparts. By eliminating the need for a separate excitation current, permanent magnets reduce energy losses associated with coil resistance, thereby improving overall efficiency. This is particularly beneficial in applications where energy conservation is critical, such as in electric vehicles and portable devices. For instance, a DC motor with permanent magnets can achieve up to 90% efficiency, compared to 80-85% in motors using electromagnets, making it a more sustainable choice for long-term use.
One of the key performance benefits of permanent magnets in DC motors is their ability to provide a consistent magnetic field without requiring additional power input. This results in smoother operation and reduced torque ripple, which is essential for applications demanding precise control, such as robotics and medical equipment. For example, in a robotic arm, a DC motor with permanent magnets ensures seamless movement, minimizing vibrations that could compromise accuracy. This reliability translates to longer operational lifespans and lower maintenance costs, making it a cost-effective solution for industries reliant on high-precision machinery.
From a design perspective, permanent magnets allow for more compact and lightweight DC motors, which is advantageous in space-constrained applications like drones and consumer electronics. The absence of a commutator and brushes in brushless DC (BLDC) motors, often utilizing permanent magnets, further reduces wear and tear, enhancing durability. Engineers can optimize motor performance by selecting magnets with specific properties, such as neodymium magnets for high-power applications or ferrite magnets for cost-sensitive projects. This flexibility in material choice enables tailored solutions that meet diverse operational requirements.
However, it’s essential to consider the limitations of permanent magnets in DC motors. Exposure to high temperatures can demagnetize certain materials, necessitating careful thermal management in high-power applications. Additionally, the cost of rare-earth magnets like neodymium can be prohibitive for budget-constrained projects. To mitigate these challenges, designers often incorporate heat dissipation mechanisms, such as cooling fins or thermal pads, and explore alternative magnet materials when feasible. By balancing these factors, engineers can harness the full potential of permanent magnets to maximize DC motor efficiency and performance.
In conclusion, permanent magnets offer significant efficiency and performance benefits in DC motors, from energy savings and reduced torque ripple to compact designs and enhanced durability. While challenges like temperature sensitivity and material costs exist, strategic design choices can overcome these hurdles, making permanent magnet DC motors a superior choice for a wide range of applications. Whether powering electric vehicles or precision robotics, these motors exemplify how innovative material use can drive technological advancement.
Exploring Magnetism: Practical Applications and Everyday Uses Revealed
You may want to see also
Explore related products
AC motor designs using permanent magnets: synchronous and induction types
Permanent magnets play a pivotal role in AC motor designs, particularly in synchronous and induction motors, where they enhance efficiency, torque, and performance. In synchronous AC motors, permanent magnets are integral to the rotor, eliminating the need for external excitation. This design ensures the rotor’s magnetic field locks in synchrony with the rotating magnetic field of the stator, resulting in precise speed control and high efficiency. For instance, permanent magnet synchronous motors (PMSMs) are widely used in electric vehicles and industrial applications due to their compact size, high power density, and ability to operate at variable speeds without slip. The absence of slip rings and brushes reduces maintenance, making PMSMs a reliable choice for demanding environments.
In contrast, induction motors traditionally rely on induced currents in the rotor to generate torque, but recent innovations have introduced permanent magnets to improve performance. Permanent magnet assisted synchronous reluctance motors (PMa-SynRM) combine the benefits of reluctance motors with permanent magnets, achieving higher efficiency and torque density. These motors are particularly effective in applications requiring high starting torque and low energy consumption, such as HVAC systems and pumps. The strategic placement of permanent magnets in the rotor reduces core losses and enhances magnetic alignment, making PMa-SynRM motors a competitive alternative to conventional induction motors.
When comparing synchronous and induction AC motors with permanent magnets, the choice depends on the application’s specific requirements. Synchronous motors excel in applications needing precise speed control and high efficiency, while induction motors with permanent magnet assistance offer a balance of robustness and improved performance. For example, in electric vehicles, PMSMs are preferred for their high efficiency and power-to-weight ratio, whereas PMa-SynRM motors are ideal for industrial applications where energy savings and torque are critical. Understanding these distinctions allows engineers to select the optimal motor design for their needs.
Practical considerations for implementing permanent magnets in AC motors include material selection and thermal management. Neodymium-iron-boron (NdFeB) magnets are commonly used due to their high magnetic strength, but they require careful handling to avoid demagnetization at elevated temperatures. Engineers must incorporate cooling systems, such as liquid cooling or heat sinks, to maintain optimal operating temperatures. Additionally, the cost of rare-earth magnets can be a limiting factor, prompting the exploration of alternatives like ferrite magnets in less demanding applications. By addressing these challenges, designers can maximize the benefits of permanent magnets in AC motor systems.
In conclusion, permanent magnets have revolutionized AC motor designs, particularly in synchronous and induction types, by improving efficiency, torque, and reliability. Whether in PMSMs or PMa-SynRM motors, the strategic integration of permanent magnets offers tailored solutions for diverse applications. By understanding the unique advantages and challenges of each design, engineers can harness the full potential of permanent magnets to meet the evolving demands of modern motor systems.
Magnets in Cars: Unseen Forces Powering Modern Automotive Technology
You may want to see also
Explore related products
Cost comparison: permanent magnets vs. electromagnets in motor applications
Permanent magnets and electromagnets each bring distinct cost implications to motor applications, making their selection a critical decision for engineers and manufacturers. Permanent magnets, typically made from rare-earth materials like neodymium, offer high magnetic strength but come with a steep upfront cost. For instance, neodymium magnets can account for up to 20% of the total cost of a high-efficiency motor. Electromagnets, on the other hand, rely on copper coils and require a continuous power supply, which adds to operational expenses. While the initial material cost of electromagnets is lower, their long-term energy consumption can significantly outweigh the savings, especially in continuous-duty applications.
Consider a practical example: a 10 kW motor running 8,000 hours annually. A permanent magnet motor might cost $1,500 upfront but consumes 10% less energy than its electromagnet counterpart. Over five years, the energy savings could amount to $1,200, effectively reducing the net cost gap. Conversely, an electromagnet motor priced at $1,000 initially could incur $2,000 in additional energy costs over the same period. This highlights how operational efficiency can offset higher initial investments in permanent magnets.
From a manufacturing perspective, the choice between permanent magnets and electromagnets involves trade-offs beyond material costs. Permanent magnet motors are generally smaller and lighter, reducing the need for robust structural components and simplifying assembly. Electromagnet motors, however, require additional components like commutators or electronic controllers, which add complexity and cost. For instance, a brushless DC motor with permanent magnets eliminates the need for brushes, reducing maintenance costs by up to 30% compared to brushed electromagnet designs.
Persuasively, the environmental impact of these choices cannot be overlooked. Rare-earth mining for permanent magnets raises sustainability concerns, but their energy efficiency contributes to lower carbon emissions during operation. Electromagnets, while less resource-intensive to produce, often consume more energy, increasing their carbon footprint over time. For eco-conscious manufacturers, permanent magnets may align better with long-term sustainability goals despite their higher initial cost.
In conclusion, the cost comparison between permanent magnets and electromagnets in motor applications is multifaceted. While permanent magnets demand a higher upfront investment, their energy efficiency and reduced maintenance costs often yield long-term savings. Electromagnets offer lower initial costs but can incur higher operational expenses and environmental impacts. The optimal choice depends on application-specific factors such as duty cycle, efficiency requirements, and sustainability priorities. By carefully weighing these considerations, engineers can make informed decisions that balance cost, performance, and environmental responsibility.
Are Magnetic Bracelets Safe? Exploring Health Benefits and Risks
You may want to see also
Explore related products
Magnetic materials: neodymium, ferrite, and their impact on motor operation
Permanent magnets are integral to both AC and DC motors, providing the magnetic field necessary for their operation. Among the materials used, neodymium and ferrite stand out due to their distinct properties and applications. Neodymium magnets, composed of neodymium, iron, and boron (NdFeB), offer the highest magnetic strength available, making them ideal for compact, high-performance motors. Ferrite magnets, made from iron oxide and barium or strontium carbonate, provide a cost-effective alternative with moderate magnetic strength and excellent resistance to demagnetization. Understanding the impact of these materials on motor operation requires a closer look at their characteristics and how they influence efficiency, size, and cost.
Analytical Perspective: Neodymium magnets dominate applications where size and weight are critical, such as in electric vehicles and high-efficiency industrial motors. Their superior magnetic flux density (up to 1.4 Tesla) allows for smaller rotor designs, reducing motor size by up to 50% compared to ferrite-based motors. However, neodymium’s susceptibility to demagnetization at temperatures above 80°C and its higher cost limit its use in high-temperature or budget-sensitive applications. Ferrite magnets, while less powerful (flux density around 0.3–0.4 Tesla), excel in environments requiring thermal stability and corrosion resistance, making them suitable for household appliances and low-cost automotive components.
Instructive Approach: When selecting between neodymium and ferrite magnets for motor design, consider the operating environment and performance requirements. For high-torque, compact motors, neodymium is the clear choice, but ensure adequate cooling to prevent demagnetization. Ferrite magnets are ideal for applications where cost and durability outweigh the need for maximum efficiency. For instance, a neodymium-based DC motor in a drone requires minimal weight and size, while a ferrite-based AC motor in a refrigerator prioritizes longevity and affordability. Always factor in the material’s temperature coefficient: neodymium loses 0.12% of its magnetism per °C above its Curie temperature, whereas ferrite remains stable up to 300°C.
Comparative Insight: The trade-offs between neodymium and ferrite extend beyond performance to sustainability and supply chain considerations. Neodymium magnets rely on rare earth elements, whose mining and processing pose environmental and geopolitical challenges. Ferrite magnets, derived from abundant materials, offer a more sustainable option but require larger volumes to achieve comparable magnetic fields. For example, a 1 kW motor using neodymium might weigh 2 kg, while a ferrite-based equivalent could weigh 5 kg. Engineers must balance these factors, especially in industries like renewable energy, where both efficiency and sustainability are paramount.
Descriptive Takeaway: In practice, the choice between neodymium and ferrite magnets shapes the motor’s efficiency, size, and cost. A neodymium-powered brushless DC motor in a cordless drill delivers high torque in a lightweight package, enhancing user experience. Conversely, a ferrite-based AC motor in a washing machine prioritizes reliability and affordability, ensuring long-term performance without breaking the bank. By tailoring the magnetic material to the application, designers can optimize motor operation for specific needs, whether it’s maximizing power density or minimizing expenses.
CT Scans vs. Magnets: Understanding the Technology Behind Imaging
You may want to see also
Explore related products
Permanent magnet motors: applications in electric vehicles and renewable energy systems
Permanent magnets are integral to the efficiency and performance of both AC and DC motors, but their application in electric vehicles (EVs) and renewable energy systems highlights their versatility and importance. In EVs, permanent magnet motors (PMMs) are favored for their high power density and efficiency, which directly translate to longer driving ranges and quicker acceleration. For instance, Tesla’s Model 3 uses a permanent magnet synchronous motor (PMSM) in its rear axle, leveraging the strong magnetic field of rare-earth magnets like neodymium to maximize torque output. This design choice underscores the critical role of PMMs in achieving the high performance demanded by modern EVs.
In renewable energy systems, PMMs play a pivotal role in converting mechanical energy into electrical energy with minimal losses. Wind turbines, for example, often employ PMSMs in their generators due to their ability to operate efficiently across a wide range of speeds. A typical 2MW wind turbine generator uses permanent magnets to achieve efficiencies above 95%, ensuring that the maximum amount of wind energy is captured and converted into usable electricity. This efficiency is crucial for the economic viability of wind energy projects, as it directly impacts the return on investment.
However, the reliance on rare-earth magnets in PMMs raises concerns about sustainability and supply chain vulnerabilities. Rare-earth elements like neodymium and dysprosium are primarily sourced from a handful of countries, creating geopolitical risks. To mitigate this, researchers are exploring alternatives such as ferrite magnets or hybrid designs that reduce rare-earth usage without compromising performance. For instance, Toyota’s hybrid vehicles use ferrite magnets in their electric motors, demonstrating that it’s possible to balance sustainability with functionality.
When integrating PMMs into renewable energy systems, engineers must consider environmental factors that affect motor performance. In solar tracking systems, for example, PMMs are used to orient photovoltaic panels toward the sun, maximizing energy capture. These motors must withstand extreme temperatures, humidity, and UV exposure, requiring robust designs and materials. A practical tip for system designers is to select motors with IP65 or higher ratings to ensure durability in outdoor conditions.
In conclusion, permanent magnet motors are indispensable in electric vehicles and renewable energy systems due to their efficiency, power density, and reliability. While their dependence on rare-earth materials poses challenges, ongoing innovations in magnet technology and motor design offer pathways to more sustainable solutions. By understanding the specific demands of these applications, engineers can harness the full potential of PMMs to drive the transition to cleaner energy and transportation systems.
Mastering Magnetic Nail Art: A Step-by-Step Wand Guide
You may want to see also
Frequently asked questions
Yes, permanent magnets are used in some AC motors, particularly in brushless DC (BLDC) motors, which are often powered by AC-to-DC converters, and in certain types of synchronous AC motors like permanent magnet synchronous motors (PMSMs).
Yes, permanent magnets are commonly used in DC motors, especially in permanent magnet DC (PMDC) motors, where they provide the magnetic field required for operation without the need for field windings.
Permanent magnet motors use fixed magnets to create the magnetic field, while electromagnet motors rely on current-carrying windings. Permanent magnet motors are often more efficient and compact but may have limitations in high-temperature or high-current applications compared to electromagnet motors.
No, while permanent magnets are used in both AC and DC motors, the design and application differ. AC motors using permanent magnets (like PMSMs) require specific control strategies, whereas DC motors (like PMDCs) operate with simpler commutation methods. Interchangeability depends on the motor type and application requirements.
