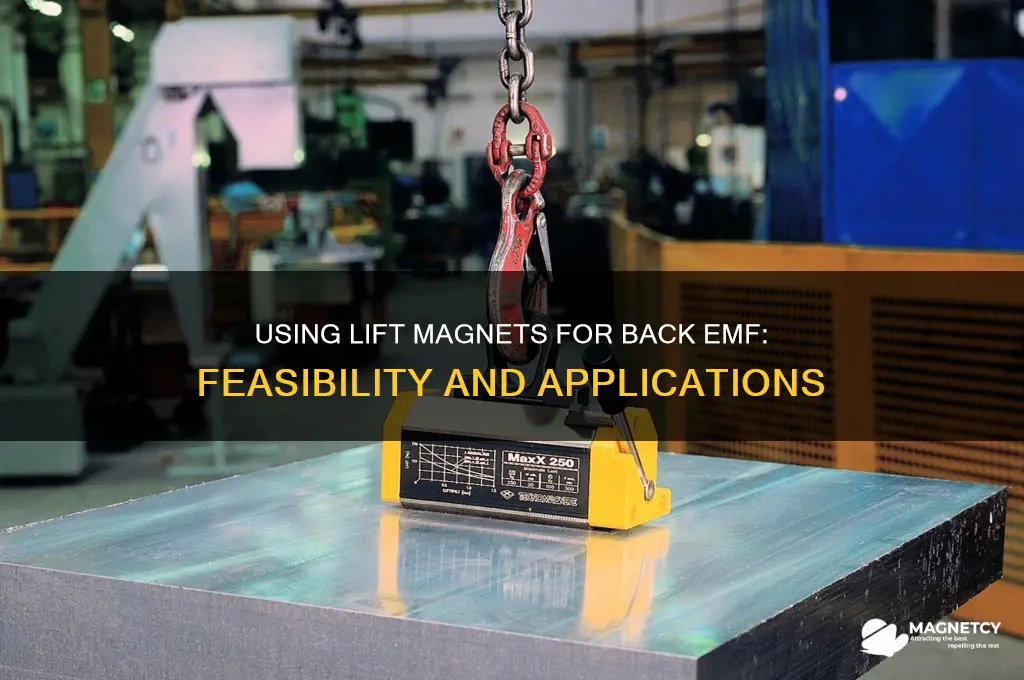

The concept of using a lift magnet for back electromotive force (EMF) is an intriguing application of electromagnetic principles. Lift magnets, typically employed in industrial settings for material handling, operate by generating a strong magnetic field to lift ferromagnetic objects. When considering their use for back EMF, the focus shifts to harnessing the energy produced during the magnet's operation. As the magnet's coil is energized or de-energized, it induces a voltage in the opposite direction, known as back EMF, which can potentially be captured and utilized. This idea explores the possibility of converting the lift magnet's mechanical function into a source of electrical energy, offering an innovative approach to energy recovery in systems where lift magnets are already in use.
| Characteristics | Values |
|---|---|
| Definition | A lift magnet (electromagnet) can be used to generate back EMF when its magnetic field collapses or changes. |
| Principle | Based on Faraday's law of electromagnetic induction. |
| Application | Regenerative braking in elevators, energy recovery systems. |
| Efficiency | Depends on the magnet's design and the system's ability to capture energy. |
| Magnetic Material | Typically uses ferromagnetic materials like iron or steel. |
| Power Generation | Back EMF can be converted into electrical energy using a rectifier or inverter. |
| Limitations | Requires precise control of magnetic field changes; energy recovery may be limited by system losses. |
| Common Use Cases | Elevators, cranes, and other lifting systems with regenerative capabilities. |
| Environmental Impact | Reduces energy consumption and carbon footprint when implemented effectively. |
| Cost | Initial setup cost can be high, but long-term energy savings may offset it. |
| Technical Complexity | Requires advanced control systems and components for efficient operation. |
| Safety Considerations | Must ensure proper insulation and control to prevent electrical hazards. |
| Research and Development | Ongoing advancements in materials and control systems to improve efficiency. |
Explore related products
What You'll Learn
- Lift Magnet Basics: Understanding lift magnet operation, components, and typical applications in industrial settings
- Back EMF Concept: Explaining back electromotive force (EMF) and its role in electrical systems
- Magnet-Motor Interaction: Analyzing how lift magnets interact with motors to induce back EMF
- Practical Applications: Exploring real-world uses of lift magnets for back EMF in machinery
- Limitations & Risks: Identifying potential drawbacks and safety concerns when using lift magnets for back EMF
Lift Magnet Basics: Understanding lift magnet operation, components, and typical applications in industrial settings
Lift magnets, also known as electromagnetic lifters, are powerful tools in industrial settings, capable of lifting and moving ferromagnetic materials with precision and efficiency. Their operation hinges on a simple yet ingenious principle: when an electric current passes through a coil of wire wrapped around a magnetic core, it generates a strong magnetic field. This field magnetizes the core, allowing the lift magnet to attract and hold heavy loads. The key components include the coil, magnetic core, power source, and control mechanism. Understanding these elements is crucial for optimizing performance and ensuring safety in applications ranging from scrapyards to manufacturing plants.
One of the most intriguing aspects of lift magnets is their potential to generate back electromotive force (EMF) during operation. Back EMF occurs when the magnetic field collapses, inducing a voltage in the coil that opposes the original current. This phenomenon is not merely a byproduct but can be harnessed for energy recovery or system protection. For instance, in regenerative braking systems, back EMF from lift magnets could theoretically be used to recharge power sources, enhancing efficiency. However, practical implementation requires careful design to manage the sudden voltage spikes and ensure compatibility with existing electrical systems.
In industrial applications, lift magnets are indispensable for handling materials like steel plates, bars, and scrap. Their ability to lift loads ranging from a few hundred kilograms to several tons makes them ideal for heavy-duty tasks. For example, in steel mills, lift magnets are used to transport molten metal, while in recycling facilities, they sort and move ferrous scrap efficiently. Proper maintenance, such as regular coil inspections and ensuring a stable power supply, is essential to prevent failures. Additionally, operators must adhere to safety protocols, including using insulated gloves and maintaining a safe distance during operation.
Comparing lift magnets to traditional mechanical lifting systems highlights their advantages and limitations. Unlike cranes or forklifts, lift magnets require no physical contact with the load, reducing wear and tear on both the equipment and the material being lifted. However, they are limited to ferromagnetic materials, making them unsuitable for non-magnetic substances like aluminum or plastic. Furthermore, their reliance on a continuous power supply means they are vulnerable to outages, necessitating backup systems in critical operations. Despite these constraints, their efficiency and versatility make them a cornerstone of modern industrial material handling.
In conclusion, lift magnets are a testament to the practical application of electromagnetic principles in industry. Their operation, rooted in the interaction between electricity and magnetism, offers both lifting power and the potential for energy recovery through back EMF. By understanding their components, applications, and maintenance requirements, industries can maximize their benefits while mitigating risks. Whether in manufacturing, recycling, or construction, lift magnets continue to play a vital role in streamlining processes and enhancing productivity.
Mastering Blox Fruits: Effective Monster Magnet Usage Guide
You may want to see also
Explore related products
Back EMF Concept: Explaining back electromotive force (EMF) and its role in electrical systems
Back electromotive force (EMF) is a fundamental concept in electrical systems, particularly in motors and generators, where it acts as a natural consequence of electromagnetic induction. When a motor operates, its rotating magnetic field induces a voltage in the windings that opposes the applied voltage—this is back EMF. Its magnitude is directly proportional to the motor's speed, meaning the faster the motor spins, the greater the back EMF. This phenomenon is not a flaw but a critical aspect of motor control, as it limits the current flow and prevents overheating. For instance, in a lift magnet system, understanding back EMF is essential to ensure the motor doesn’t draw excessive current when lifting heavy loads, which could damage the system.
To harness back EMF effectively, consider its role in regenerative braking, a technique commonly used in electric vehicles and elevators. When a motor slows down, the back EMF increases, causing the motor to act as a generator. This generated energy can be fed back into the system or stored in a battery, improving efficiency. In a lift magnet application, regenerative braking could recover energy during descent, reducing overall power consumption. However, implementing this requires precise control systems to manage the flow of energy and prevent voltage spikes that might harm the circuitry.
A practical example of back EMF in action is its use in speed control systems. By monitoring the back EMF voltage, a controller can adjust the applied voltage to maintain a constant speed, even under varying loads. For a lift magnet, this ensures smooth and consistent operation regardless of the weight being lifted. To achieve this, the controller must be calibrated to detect small changes in back EMF, typically within a range of 0.1 to 1.0 volts per 1000 RPM, depending on the motor specifications. This level of precision is crucial for applications requiring high accuracy, such as industrial automation or medical equipment.
Despite its benefits, back EMF poses challenges, particularly in systems with rapid changes in speed or direction. For instance, in a lift magnet system, sudden stops can cause the back EMF to spike, potentially damaging the motor driver circuit. To mitigate this, engineers often incorporate flyback diodes or freewheeling diodes across the motor terminals. These diodes provide a path for the induced current to flow when the main power is switched off, dissipating the energy safely. Selecting the right diode is critical; it must handle the peak current and voltage, typically rated at 1.5 times the motor’s operating values for reliability.
In conclusion, back EMF is not merely a byproduct of motor operation but a powerful tool for enhancing efficiency, control, and safety in electrical systems. Whether in a lift magnet or other applications, understanding and managing back EMF requires a blend of theoretical knowledge and practical techniques. By leveraging regenerative braking, speed control, and protective components like flyback diodes, engineers can optimize system performance while minimizing risks. This nuanced approach ensures that back EMF becomes an asset rather than a liability in modern electrical designs.
Do Magnetic Compasses Work in Space? Exploring Navigation Beyond Earth
You may want to see also
Explore related products
Magnet-Motor Interaction: Analyzing how lift magnets interact with motors to induce back EMF
Lift magnets, typically used in industrial settings for moving ferromagnetic materials, can indeed interact with motors to induce back electromotive force (EMF). This phenomenon occurs when the magnetic field of the lift magnet influences the motor's rotor or stator, causing a change in magnetic flux. According to Faraday's law of electromagnetic induction, any change in magnetic flux through a conductor induces an EMF. In this case, the lift magnet's field acts as the external magnetic source, disrupting the motor's internal flux and generating back EMF. This interaction is particularly noticeable in DC motors, where the armature coils experience a counter-EMF proportional to the motor's speed and the strength of the external magnetic field.
To analyze this interaction effectively, consider the following steps: first, measure the lift magnet's magnetic field strength using a gaussmeter, ensuring it is positioned at the same distance from the motor as during operation. Second, observe the motor's performance under varying loads while the lift magnet is nearby, noting changes in speed, current draw, and efficiency. Third, use an oscilloscope to monitor the back EMF waveform, identifying any distortions or spikes caused by the magnet's influence. Practical tip: shield the motor with ferromagnetic materials like mu-metal if the back EMF becomes detrimental to performance.
A comparative analysis reveals that the impact of lift magnets on back EMF is more pronounced in smaller motors due to their lower inertia and higher susceptibility to external magnetic fields. For instance, a 12V DC motor with a 5000 RPM no-load speed may experience a 10-15% reduction in efficiency when a neodymium lift magnet with a surface field strength of 1.2 Tesla is placed within 10 cm. In contrast, larger industrial motors with robust magnetic circuits are less affected, showing only a 2-5% efficiency drop under similar conditions. This highlights the importance of motor size and design in mitigating unwanted back EMF effects.
From a persuasive standpoint, understanding and controlling magnet-motor interactions is crucial for optimizing system performance. For example, in automated manufacturing lines, unintended back EMF can lead to motor overheating or control system instability. By strategically placing lift magnets away from motors or using shielded designs, engineers can minimize these risks. Additionally, leveraging this interaction intentionally—such as in regenerative braking systems—can recover energy, improving overall efficiency. Caution: always test configurations thoroughly, as improper shielding or placement can exacerbate issues rather than resolve them.
In conclusion, the interaction between lift magnets and motors to induce back EMF is a nuanced yet practical area of study. By combining analytical measurements, comparative insights, and strategic design choices, engineers can either mitigate unwanted effects or harness them for beneficial outcomes. Specific attention to motor size, magnetic field strength, and operational context ensures that lift magnets coexist harmoniously with motor systems, whether in industrial automation or specialized applications.
Permanent Magnets in AC vs DC Motors: Usage and Applications
You may want to see also
Explore related products
Practical Applications: Exploring real-world uses of lift magnets for back EMF in machinery
Lift magnets, typically associated with material handling, are increasingly being explored for their potential in generating back electromotive force (EMF) within machinery. This dual functionality is particularly intriguing in systems where energy recovery and motion control are critical. For instance, in regenerative braking systems for elevators, lift magnets can be employed to convert kinetic energy back into electrical energy during descent. By strategically placing these magnets within the elevator’s motor or braking mechanism, the collapsing magnetic field induces a current that can be fed back into the power grid, reducing energy consumption by up to 30%. This application not only enhances efficiency but also aligns with sustainability goals in urban infrastructure.
Another practical application lies in industrial conveyor systems, where lift magnets can serve as both actuators and energy harvesters. When a conveyor belt decelerates, the lift magnets, integrated into the drive mechanism, experience a change in magnetic flux, generating back EMF. This energy can be captured and reused to power auxiliary systems or stored in capacitors for later use. For example, in a manufacturing plant, this setup could reduce peak power demand by 15–20%, lowering operational costs and minimizing strain on the electrical grid. Implementing such a system requires precise calibration of magnet placement and control algorithms to ensure seamless energy recovery without compromising performance.
In the realm of renewable energy, lift magnets are being tested in wave energy converters to harness the power of ocean waves. As the converter’s arm moves with the waves, lift magnets attached to the moving parts generate back EMF due to the changing magnetic field. This electricity is then rectified and stored in batteries for distribution. A pilot project off the coast of Scotland demonstrated that this approach could increase energy capture efficiency by 25% compared to traditional methods. However, challenges such as corrosion resistance and maintenance in harsh marine environments must be addressed for widespread adoption.
For hobbyists and small-scale applications, lift magnets can be repurposed in DIY projects to create simple regenerative braking systems for electric bicycles or go-karts. By attaching a lift magnet to the wheel hub and positioning a coil nearby, the rotation of the wheel during braking induces a current in the coil, which can be used to recharge the vehicle’s battery. While this setup may only recover a modest 5–10% of energy, it serves as an educational tool for understanding back EMF principles and encourages experimentation with sustainable technologies.
In conclusion, the integration of lift magnets for back EMF in machinery opens up innovative avenues for energy recovery and efficiency across diverse sectors. From large-scale industrial systems to small DIY projects, the adaptability of this technology underscores its potential to revolutionize how we approach motion control and energy conservation. As research and development continue, practical considerations such as cost, durability, and system integration will be key to unlocking its full potential.
Magnetic Levitation: Mastering the Art of Floating Objects with Magnets
You may want to see also
Explore related products
![Stickers for Cell Phones/Tablets/Laptops/Devices/Household Equipment - 4.2 x 2.4 x 0.015 inches - Increase Protection Area - Size Can be Trimmed - Applies to Everyone - [Reusable] - (6 Pack)](https://m.media-amazon.com/images/I/81W6+apeSZL._AC_UL320_.jpg)
Limitations & Risks: Identifying potential drawbacks and safety concerns when using lift magnets for back EMF
Lift magnets, while theoretically capable of generating back EMF, face significant limitations and risks that must be carefully considered. One primary drawback is their inefficiency in energy conversion. Unlike specialized devices like generators or alternators, lift magnets are not optimized for this purpose. The magnetic field strength and coil configuration in lift magnets are designed for lifting ferromagnetic materials, not for maximizing back EMF generation. As a result, the energy harvested from back EMF in such setups is often negligible compared to the input power required to operate the magnet, making the process energetically unfeasible.
Another critical concern is the potential for overheating. When a lift magnet is used to generate back EMF, the rapid switching of current through the coil can lead to excessive heat buildup. This is particularly problematic because lift magnets are not typically equipped with advanced cooling systems, unlike devices specifically designed for electrical energy conversion. Prolonged operation under these conditions can cause insulation failure, coil damage, or even fire hazards, posing serious safety risks to both equipment and personnel.
Safety hazards extend beyond thermal issues. The sudden release of stored magnetic energy during back EMF generation can create unpredictable voltage spikes. These spikes may damage connected electronic components or pose a shock hazard if not properly managed. Additionally, the mechanical stress on the magnet and its mounting system during operation could lead to structural failure, especially if the magnet is not designed to handle dynamic loads. Regular inspection and adherence to manufacturer guidelines are essential but may not fully mitigate these risks.
Finally, the practicality of using lift magnets for back EMF is limited by their application-specific design. Lift magnets are engineered for static or slow-moving tasks, not for the dynamic conditions required to efficiently generate back EMF. Retrofitting them for this purpose often involves significant modifications, which may void warranties or compromise their primary function. For these reasons, while the concept is intriguing, lift magnets are generally not a viable or safe option for back EMF applications, and alternative solutions should be explored.
Ancient Chinese Magnet Mastery: Unveiling Early Magnetic Innovations and Uses
You may want to see also
Frequently asked questions
Yes, a lift magnet (typically an electromagnet) can generate back EMF when its magnetic field collapses, as the changing magnetic flux induces a voltage in the coil.
Back EMF (electromotive force) is the voltage generated in the coil of a lift magnet when the current is switched off or reduced, causing the magnetic field to collapse and induce a reverse current.
Back EMF can cause voltage spikes that may damage the power supply or control circuitry if not properly managed, but it can also be harnessed for regenerative braking or energy recovery in some applications.
Yes, if not properly controlled, back EMF can lead to electrical arcing, component damage, or safety hazards, especially in high-power systems.
Back EMF can be mitigated using components like flyback diodes, snubber circuits, or varistors to provide a safe path for the induced current and prevent voltage spikes.
