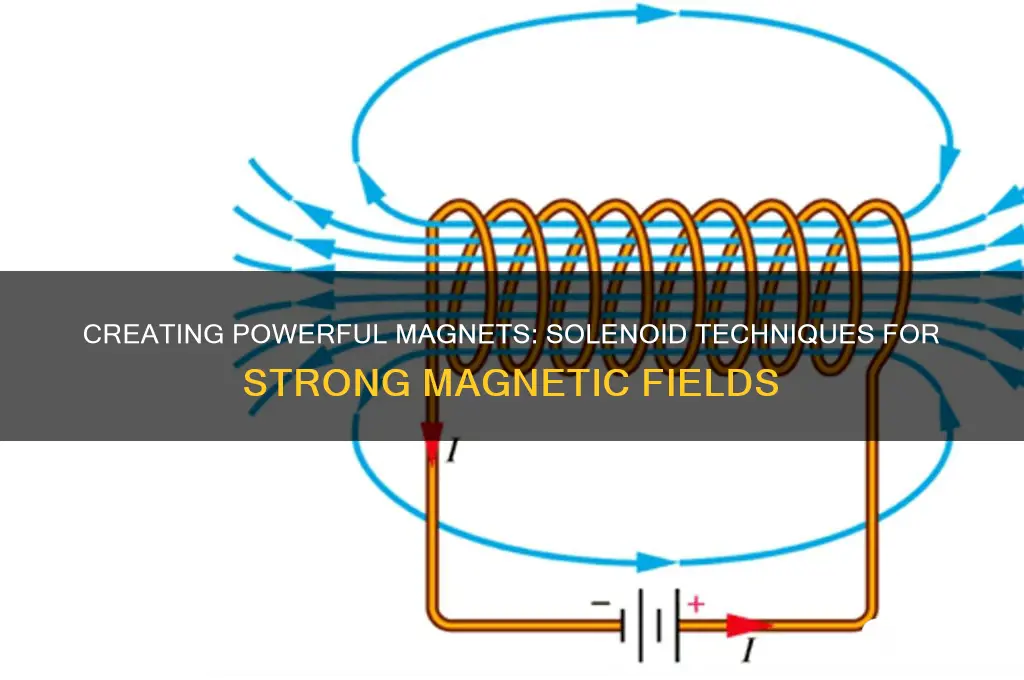

A strong magnet can be created using a solenoid by leveraging the principles of electromagnetism. A solenoid consists of a coil of wire tightly wound around a cylindrical core, often made of ferromagnetic material like iron. When an electric current passes through the wire, it generates a magnetic field inside and around the coil, following the right-hand rule. The strength of the magnetic field is directly proportional to the number of turns in the coil, the current flowing through it, and the magnetic permeability of the core material. By increasing these factors—using more turns of wire, applying a higher current, or employing a core with high permeability—the solenoid can produce a significantly stronger magnetic field, effectively functioning as a powerful electromagnet. This method is widely used in applications such as electric motors, MRI machines, and industrial lifting equipment.
| Characteristics | Values |
|---|---|
| Core Material | Ferromagnetic materials like iron, nickel, or cobalt (e.g., soft iron for maximum permeability) |
| Number of Turns (N) | Higher number of turns increases magnetic field strength (B ∝ N) |
| Current (I) | Greater current flowing through the solenoid increases magnetic field strength (B ∝ I) |
| Length of Solenoid (l) | Shorter solenoids produce stronger magnetic fields for a given number of turns and current |
| Coil Diameter | Smaller diameter coils can concentrate magnetic flux more effectively |
| Permeability of Core (μ) | Higher permeability materials enhance magnetic field strength (B ∝ μ) |
| Air Gap | Minimizing air gaps between core and coil maximizes field strength |
| Cooling Mechanism | Efficient cooling prevents overheating and maintains high current flow |
| Wire Material | Low-resistance wire (e.g., copper) minimizes energy loss due to heating |
| Magnetic Field Strength (B) | Calculated using formula: B = μ * N * I / l (in teslas, T) |
| Electromagnet Type | Solenoid with a ferromagnetic core acts as a temporary strong magnet |
| Power Source | Requires a stable, high-current power supply for optimal performance |
| Field Uniformity | Long, tightly wound solenoids provide a more uniform magnetic field |
| Applications | Used in MRI machines, particle accelerators, and industrial lifting magnets |
Explore related products
What You'll Learn
- Increase Coil Turns: Add more wire loops to enhance magnetic field strength proportionally
- Boost Current Flow: Higher electric current through the solenoid amplifies magnetism
- Use Iron Core: Inserting a ferromagnetic core significantly strengthens the magnetic field
- Optimize Wire Gauge: Thicker wire reduces resistance, allowing more current to flow
- Improve Coil Density: Tightly wound coils concentrate magnetic flux for stronger fields
Increase Coil Turns: Add more wire loops to enhance magnetic field strength proportionally
One of the most straightforward methods to amplify the magnetic field strength of a solenoid is by increasing the number of coil turns. This principle is rooted in Ampere’s Law, which states that the magnetic field inside a solenoid is directly proportional to the number of turns per unit length and the current flowing through the wire. Mathematically, the magnetic field strength (B) inside a solenoid is given by \( B = \mu_0 \cdot n \cdot I \), where \( \mu_0 \) is the permeability of free space, \( n \) is the number of turns per unit length, and \( I \) is the current. By adding more wire loops, you effectively increase \( n \), thereby enhancing the magnetic field strength proportionally.
To implement this, start by selecting a wire with an appropriate gauge—thinner wires allow for more turns but may increase resistance, while thicker wires reduce resistance but limit the number of turns. For practical applications, a 22-26 AWG (American Wire Gauge) wire is commonly used. Wind the wire tightly around a cylindrical core, ensuring each loop is close but not overlapping to maximize the turns per unit length. For example, a solenoid with 100 turns per centimeter will produce a stronger magnetic field than one with 50 turns per centimeter, assuming the same current and core material. Use a mandrel or cylindrical form to maintain uniformity in the winding process.
While increasing coil turns is effective, it’s essential to balance this with practical considerations. More turns mean longer wire lengths, which increase the overall resistance of the coil. This can lead to higher power consumption and heat generation, potentially damaging the wire or reducing efficiency. To mitigate this, ensure the wire is rated for the expected current and consider using a core material with high magnetic permeability, such as iron or ferrite, to enhance the field without adding more turns. Additionally, keep the winding neat and compact to avoid short circuits or mechanical stress on the wire.
A comparative analysis reveals that this method is particularly advantageous in applications requiring strong, localized magnetic fields, such as in electromagnets or inductors. For instance, a solenoid with 500 turns and a current of 2 A can produce a magnetic field of approximately 0.25 Tesla, while doubling the turns to 1000 (with the same current) would double the field strength to 0.5 Tesla. This scalability makes it a versatile technique for both small-scale experiments and industrial applications. However, it’s less effective in scenarios where space or weight constraints limit the number of turns, such as in portable devices.
In conclusion, increasing coil turns is a reliable and cost-effective way to enhance the magnetic field strength of a solenoid. By carefully selecting wire gauge, maintaining uniform winding, and balancing the number of turns with practical limitations, you can achieve significant improvements in magnetic performance. Whether for educational experiments or professional engineering projects, this method offers a clear pathway to stronger electromagnets without requiring advanced materials or complex designs.
Aluminum's Role in Magnetic Shielding: Fact or Fiction?
You may want to see also
Explore related products
Boost Current Flow: Higher electric current through the solenoid amplifies magnetism
The strength of a solenoid magnet is directly proportional to the electric current passing through it. This relationship is rooted in Ampere's Law, which states that the magnetic field generated by a current-carrying conductor is proportional to the current. To maximize the magnetic force, increasing the current is a straightforward yet effective strategy. For instance, a solenoid with a current of 2 amperes (A) will produce a magnetic field twice as strong as one with 1 A, assuming all other factors remain constant. This principle is widely applied in electromagnets used in industries such as recycling, where powerful magnetic fields are needed to separate ferrous materials from waste streams.
To implement this approach, start by selecting a power supply capable of delivering higher current without overheating the solenoid. A common rule of thumb is to ensure the wire gauge of the solenoid can handle the increased current without exceeding its maximum temperature rating. For example, a 20-gauge copper wire can safely carry up to 5 A in typical conditions, while a 16-gauge wire can handle up to 10 A. Always consult the wire’s specifications or use an online current capacity calculator to avoid damage. Gradually increase the current in 0.5 A increments, monitoring the solenoid’s temperature with a non-contact infrared thermometer to ensure it stays below 150°C (302°F), a safe operating threshold for most insulated wires.
While boosting current is effective, it’s not without limitations. Higher current increases energy consumption, which can be a concern in battery-powered applications or large-scale systems. For example, doubling the current from 2 A to 4 A quadruples the power consumption (P = I²R), where R is the resistance of the solenoid. To mitigate this, consider using a core material with high magnetic permeability, such as iron or ferrite, which enhances the magnetic field without requiring additional current. Another practical tip is to pulse the current rather than maintaining a continuous flow, which reduces heat buildup while still achieving strong magnetic pulses, a technique often used in magnetic locks and relays.
Comparing this method to alternatives highlights its simplicity and immediacy. Increasing the number of wire turns or using a more permeable core also strengthens the magnetic field, but these modifications require physical changes to the solenoid. Boosting current, on the other hand, can be done instantly with the right power supply, making it ideal for experiments or applications where quick adjustments are needed. However, it’s crucial to balance the desire for stronger magnetism with the practical constraints of power consumption and heat dissipation. For long-term use, combining higher current with efficient cooling methods, such as heat sinks or forced air ventilation, ensures both performance and durability.
Tesla Coil and Magnets: Unraveling the Myth of Magnetic Power
You may want to see also
Explore related products
Use Iron Core: Inserting a ferromagnetic core significantly strengthens the magnetic field
Inserting an iron core into a solenoid is a transformative step in amplifying its magnetic field. This method leverages the ferromagnetic properties of iron, which align its atomic dipoles with the applied magnetic field, effectively concentrating and enhancing the field strength. The result is a magnet that can lift heavier objects, generate stronger forces, or operate more efficiently in applications like electromagnets, motors, or transformers. For instance, a solenoid with an air core might produce a magnetic field of 0.01 Tesla, but adding an iron core can increase this to 1 Tesla or more, depending on the iron’s permeability and the current applied.
To implement this technique, start by selecting a suitable iron core. Soft iron is ideal due to its high permeability and low coercivity, meaning it readily magnetizes and demagnetizes without retaining residual fields. The core should fit snugly inside the solenoid coil, maximizing contact between the wire and the iron. Ensure the iron is clean and free of rust or coatings that could reduce its magnetic effectiveness. For optimal results, use a core with a length-to-diameter ratio of 2:1 to minimize end effects, which can weaken the field at the core’s ends.
A critical factor in this process is the number of coil turns and the current passing through the solenoid. The magnetic field strength (B) is directly proportional to the product of the current (I), the number of turns (N), and the core’s permeability (μ), as described by the formula *B = μ * (N * I) / L*, where *L* is the core’s length. For example, a solenoid with 500 turns carrying 2 amps of current and a soft iron core (μ ≈ 2000) will produce a significantly stronger field than one with fewer turns or lower current. However, be cautious not to exceed the core’s saturation point, where further increases in current yield no additional field strength.
Practical applications of this method abound. In educational settings, students can observe the dramatic difference in magnetic force by comparing a solenoid with and without an iron core. In industrial contexts, iron-cored solenoids are used in relays, where a strong, controlled magnetic field is essential for switching high-power circuits. For hobbyists, this technique can enhance DIY projects like magnetic levitation devices or simple electric motors. Always prioritize safety by using insulated wire, avoiding short circuits, and ensuring the power supply matches the solenoid’s specifications.
In conclusion, inserting an iron core into a solenoid is a straightforward yet powerful way to create a strong magnet. By understanding the principles of ferromagnetism and optimizing core dimensions, coil turns, and current, anyone can harness this method for a variety of practical purposes. Whether for experimentation, education, or application, the iron-cored solenoid stands as a testament to the synergy between materials science and electromagnetism.
Navigating with Magnets: How Earth's Magnetic Field Guides Us
You may want to see also
Explore related products
Optimize Wire Gauge: Thicker wire reduces resistance, allowing more current to flow
Thicker wire gauge is a critical factor in maximizing the strength of a solenoid magnet. The relationship is straightforward: thicker wire reduces electrical resistance, enabling more current to flow through the coil. According to Ohm’s Law (*V = IR*), for a given voltage, lower resistance (*R*) results in higher current (*I*). Since the magnetic field strength of a solenoid is directly proportional to the current (as per the formula *B = μnI*, where *B* is magnetic field strength, *μ* is permeability, *n* is coil turns per unit length, and *I* is current), using thicker wire amplifies the magnetic force. For instance, switching from 22 AWG (0.0253 mm² cross-sectional area) to 18 AWG (0.823 mm²) can reduce resistance by over 70%, significantly boosting current flow and magnetic output.
However, optimizing wire gauge isn’t as simple as choosing the thickest wire available. Practical constraints, such as coil size and power supply limitations, must be considered. A solenoid with 12 AWG wire (2.08 mm²) may halve resistance compared to 18 AWG, but it will also increase the coil’s diameter, potentially exceeding space constraints. Additionally, thicker wire demands a higher-amperage power supply to drive the increased current. For example, a 12V supply pushing 10A through 18 AWG wire might only manage 5A through 12 AWG due to the supply’s current limit, negating the wire’s advantage. Balancing wire thickness with these factors is essential for optimal performance.
To implement this optimization effectively, start by calculating the desired current based on your magnetic field requirements. Use the formula *R = ρL/A*, where *R* is resistance, *ρ* is resistivity (e.g., 1.68 × 10⁻⁸ Ωm for copper), *L* is wire length, and *A* is cross-sectional area, to determine the resistance of different wire gauges. For a 100-turn solenoid with 1-meter wire length, 22 AWG yields ~1.6Ω resistance, while 18 AWG drops this to ~0.2Ω. Pair this with a power supply capable of delivering the required current without overheating. For instance, a 12V supply with a 20A capacity is ideal for driving thicker wire, whereas a 5A supply limits your gauge options.
A cautionary note: thicker wire increases heat dissipation due to higher current flow. Ensure your setup includes adequate cooling mechanisms, such as heat sinks or ventilation, to prevent wire insulation damage or fire hazards. For high-current applications (e.g., 10A+), consider using Litz wire, which consists of multiple thin strands to reduce skin effect and resistive losses while maintaining flexibility. This hybrid approach combines the benefits of thicker wire with improved efficiency, making it suitable for powerful solenoid magnets in applications like MRI machines or industrial lifting electromagnets.
Marantz 6300 TT: Compatibility with Moving Magnet Cartridges Explained
You may want to see also
Explore related products
Improve Coil Density: Tightly wound coils concentrate magnetic flux for stronger fields
Tightly wound coils are the backbone of a powerful solenoid magnet. Imagine a garden hose: water flows more forcefully when the hose is tightly coiled, concentrating the flow. Similarly, magnetic flux, the invisible lines of force generated by current, becomes more concentrated when coils are packed closely together. This concentration amplifies the magnetic field strength, transforming a simple solenoid into a potent magnet.
Example: A solenoid with 100 turns per centimeter will produce a significantly stronger magnetic field than one with only 50 turns per centimeter, assuming the same current flows through both.
Achieving optimal coil density requires precision and attention to detail. Start by selecting a wire gauge suitable for your desired current and field strength. Thinner wire allows for tighter winding but may have higher resistance, limiting current flow. Use a mandrel or form to ensure consistent coil diameter and spacing. Aim for minimal gaps between turns, but avoid crushing the wire, which can increase resistance and weaken the coil.
Caution: Over-tightening can damage the wire's insulation, leading to short circuits.
The relationship between coil density and magnetic field strength is directly proportional. Doubling the number of turns per unit length, while keeping current constant, will roughly double the magnetic field strength. This principle is governed by Ampere's Law, a fundamental equation in electromagnetism. Understanding this relationship allows for precise control over the magnet's power, making coil density a critical factor in solenoid design.
Takeaway: Maximizing coil density within practical limits is key to unlocking the full potential of a solenoid magnet.
Magnets and PopSockets: Compatibility Guide for Safe Phone Accessory Use
You may want to see also
Frequently asked questions
A strong magnet can be created using a solenoid by applying the principle of electromagnetism. When an electric current flows through a coil of wire (the solenoid), it generates a magnetic field. The strength of the magnetic field increases with the number of turns in the coil, the current flowing through it, and the presence of a ferromagnetic core.
The number of turns in the solenoid directly affects the strength of the magnet. More turns of wire in the coil result in a stronger magnetic field because each turn contributes to the overall magnetic flux. Increasing the number of turns amplifies the magnetic field strength proportionally.
The current flowing through the solenoid is a critical factor in determining the magnet's strength. A higher current produces a stronger magnetic field because the magnetic field strength is directly proportional to the current. Using a power source capable of delivering higher current can significantly enhance the magnet's power.
A ferromagnetic core, such as iron or nickel, is important because it concentrates and enhances the magnetic field generated by the solenoid. The core material aligns its own magnetic domains with the applied field, significantly increasing the overall magnetic strength. Without a core, the magnetic field would be weaker and less focused.
