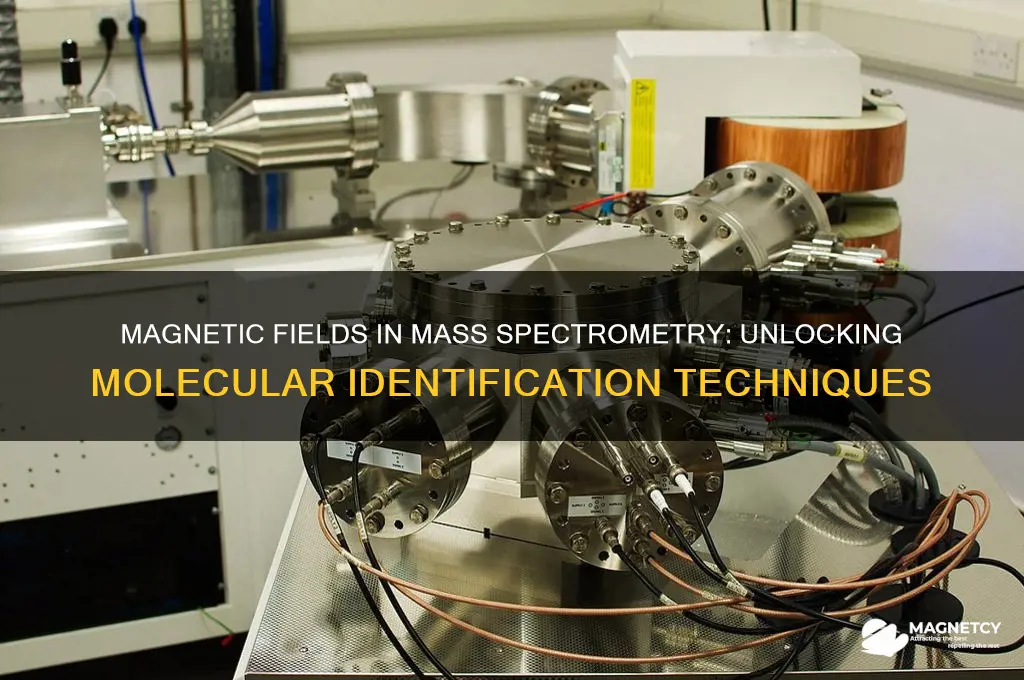

A mass spectrometer utilizes magnetic fields to separate ions based on their mass-to-charge ratio (m/z) in a process known as mass spectrometry. When ions, produced from a sample, are accelerated through an electric field, they enter a magnetic field at a perpendicular angle, causing them to follow curved paths. The radius of this curvature is determined by the ion's m/z value: lighter ions or those with higher charge states experience a greater deflection, while heavier ions or those with lower charge states are deflected less. This differential deflection allows ions of varying m/z to be spatially separated, enabling their detection and analysis. The magnetic field strength and ion velocity are precisely controlled to ensure accurate resolution, making this technique a powerful tool for identifying and quantifying chemical compounds in various scientific disciplines.
| Characteristics | Values |
|---|---|
| Principle of Operation | Utilizes the Lorentz force to deflect charged particles in a magnetic field. |
| Magnetic Field Source | Electromagnets or permanent magnets generate a uniform magnetic field. |
| Particle Deflection | Charged particles (ions) are deflected perpendicular to their velocity and the magnetic field direction. |
| Deflection Radius | Depends on mass-to-charge ratio (m/z), magnetic field strength (B), and velocity (v): ( r = \frac ). |
| Mass Separation | Ions with different m/z ratios follow distinct paths, allowing separation based on mass. |
| Field Strength (B) | Typically ranges from 0.1 to 10 Tesla, depending on the instrument design. |
| Velocity (v) | Ions are accelerated to a constant velocity before entering the magnetic field. |
| Applications | Used in mass spectrometry for identifying and quantifying chemical compounds, isotopes, and proteins. |
| Resolution | Higher magnetic field strength and longer flight paths improve resolution. |
| Instrument Types | Magnetic sector mass spectrometers, Fourier transform ion cyclotron resonance (FT-ICR) spectrometers. |
| Energy Focus | Magnetic fields provide energy focusing, ensuring ions with the same m/z but different energies converge. |
| Isotope Separation | Effectively separates isotopes due to precise mass discrimination. |
| Limitations | Requires high vacuum conditions; large and expensive equipment. |
| Advantages | High precision, wide mass range, and compatibility with various ionization techniques. |
Explore related products
What You'll Learn
Ion deflection principles
Magnetic fields in mass spectrometry exploit the Lorentz force to separate ions based on their mass-to-charge ratio (m/z). When a beam of ions with varying m/z values enters a perpendicular magnetic field, each ion experiences a force that deflects it into a curved path. The radius of this curved path (R) is directly proportional to the ion's momentum and inversely proportional to its charge and magnetic field strength (B). Mathematically, this relationship is expressed as R = (m/z) * v / (B * q), where v is the ion's velocity and q is its charge. This principle forms the basis of ion deflection in mass spectrometers.
Consider the practical application of this principle in a sector mass spectrometer. Ions are first accelerated through an electric field to achieve a uniform kinetic energy, typically in the range of 1–10 keV. Upon entering the magnetic field, ions with lower m/z values are deflected less due to their higher velocities, while heavier ions are deflected more. For example, in a magnetic field of 1 Tesla, a singly charged ion with m/z 100 will follow a larger radius path than an ion with m/z 50 under the same conditions. This differential deflection allows ions of distinct m/z values to be spatially separated and detected.
The design of the magnetic sector must account for several critical factors to ensure accurate ion separation. The magnetic field strength and the length of the deflection path determine the resolution of the spectrometer. Higher magnetic fields and longer path lengths improve resolution but increase instrument size and cost. Additionally, the uniformity of the magnetic field is crucial; non-uniform fields can distort ion trajectories, leading to poor resolution. Practical tips for optimizing performance include calibrating the magnetic field using known standards and ensuring the ion beam is precisely aligned with the magnetic sector.
A comparative analysis of ion deflection in magnetic versus electric fields highlights the advantages of magnetic sectors. While electric fields can also separate ions based on m/z, they are less effective for high-resolution applications due to limitations in field uniformity and ion focusing. Magnetic fields, however, provide superior resolution and are particularly useful for analyzing complex mixtures. For instance, in pharmaceutical analysis, magnetic sector mass spectrometers are often employed to distinguish between closely related compounds with similar m/z values, such as isotopes or isobaric species.
In conclusion, ion deflection principles in mass spectrometry leverage magnetic fields to achieve precise separation of ions based on their m/z values. By controlling parameters such as magnetic field strength, ion velocity, and path length, analysts can optimize the resolution and accuracy of their measurements. Understanding these principles is essential for designing and operating mass spectrometers effectively, particularly in applications requiring high sensitivity and specificity, such as environmental monitoring, clinical diagnostics, and materials science.
Using Any Magnet for Cat Eye Gel: Myth or Reality?
You may want to see also
Explore related products
Magnetic field strength effects
Magnetic field strength is a critical parameter in mass spectrometry, directly influencing the separation and detection of ions based on their mass-to-charge ratio (m/z). In a mass spectrometer, ions are accelerated through an electric field and then pass through a magnetic field, where they experience a Lorentz force perpendicular to their velocity and the magnetic field direction. This force causes ions to follow curved trajectories, with the radius of curvature (r) determined by the equation: r = (m/z) * v / (B * q), where m/z is the mass-to-charge ratio, v is the ion velocity, B is the magnetic field strength, and q is the ion charge. Increasing the magnetic field strength (B) decreases the radius of curvature, allowing for more precise separation of ions with similar m/z values. For example, in a 7 Tesla magnetic field, ions with m/z = 100 will have a smaller turning radius compared to a 1 Tesla field, enabling higher resolution analysis.
To optimize mass spectrometer performance, adjusting magnetic field strength is a delicate process requiring careful calibration. In practical applications, such as pharmaceutical analysis or proteomics, researchers often start with a baseline magnetic field strength (e.g., 2 Tesla) and incrementally increase it in 0.1 Tesla steps while monitoring ion peak resolution. For instance, when analyzing peptides with m/z ranges between 500–2000, a field strength of 4–5 Tesla typically provides sufficient resolution to distinguish between isobaric species. However, for more complex mixtures or higher accuracy requirements, field strengths up to 7–9 Tesla may be necessary. It’s crucial to balance resolution with ion transmission efficiency, as excessively high magnetic fields can lead to ion losses due to increased scattering or collisions with the instrument walls.
A comparative analysis of magnetic field strength effects reveals trade-offs between resolution, sensitivity, and operational practicality. Low magnetic fields (1–2 Tesla) are suitable for routine analyses where speed and throughput are prioritized over ultra-high resolution. In contrast, high magnetic fields (5+ Tesla) are essential for advanced applications like isotopic fine structure analysis or differentiation of closely related compounds. For example, in environmental monitoring, distinguishing between pesticides with similar molecular weights (e.g., m/z = 200–300) requires field strengths of at least 3 Tesla to achieve adequate separation. However, high-field systems are more costly, require specialized cooling (e.g., liquid helium for superconducting magnets), and demand rigorous maintenance to ensure stability.
From a persuasive standpoint, investing in mass spectrometers with adjustable or high magnetic field capabilities is a strategic decision for laboratories aiming to future-proof their analytical capabilities. While initial costs are higher, the ability to resolve complex mixtures with precision can lead to significant long-term benefits, such as reduced sample preparation time and improved data reliability. For instance, in clinical research, accurately identifying protein biomarkers with m/z differences of <0.01 requires magnetic fields above 6 Tesla. Laboratories should consider their current and anticipated analytical needs, weighing the advantages of high-field systems against budget constraints and operational feasibility.
In conclusion, magnetic field strength effects are central to the functionality and performance of mass spectrometers, offering a lever to control resolution and accuracy. By understanding the relationship between field strength, ion trajectory, and m/z separation, analysts can tailor their instrument settings to meet specific experimental demands. Whether for routine screening or cutting-edge research, optimizing magnetic field strength is a key step in unlocking the full potential of mass spectrometry. Practical tips include starting with moderate field strengths, incrementally adjusting based on resolution needs, and regularly calibrating the system to maintain accuracy. With the right approach, magnetic fields become a powerful tool for achieving precise, reliable results in diverse analytical scenarios.
Magnetic Metal Shingle Repair: A DIY Solution or Myth?
You may want to see also
Explore related products
Lorentz force application
The Lorentz force is pivotal in mass spectrometry, enabling the separation of ions based on their mass-to-charge ratio. When an ion beam enters a magnetic field perpendicular to its velocity, the magnetic component of the Lorentz force acts as the centripetal force, causing the ions to follow curved paths. This deflection is described by the equation F = q(v × B), where *F* is the force, *q* is the ion’s charge, *v* is its velocity, and *B* is the magnetic field strength. The radius of this curved path, known as the cyclotron radius, is directly proportional to the ion’s momentum and inversely proportional to its charge and magnetic field strength. This principle allows lighter ions to be deflected more sharply than heavier ones, forming the basis for mass separation in a mass spectrometer.
To apply the Lorentz force effectively in mass spectrometry, precise control of the magnetic field and ion velocity is essential. For instance, in a time-of-flight mass spectrometer, ions are accelerated to a specific kinetic energy (often 1–5 keV) before entering the magnetic field. The magnetic field strength, typically in the range of 1–5 Tesla, is adjusted to achieve the desired separation. A practical tip for optimizing performance is to ensure the ion beam’s velocity vector is perfectly perpendicular to the magnetic field lines, as any deviation reduces the efficiency of the Lorentz force. Additionally, maintaining a uniform magnetic field across the ion path minimizes aberrations in the trajectory, ensuring accurate mass analysis.
Comparing the Lorentz force application in mass spectrometry to other techniques highlights its unique advantages. Unlike electrostatic methods, which rely on electric fields to separate ions, magnetic separation via the Lorentz force is independent of the ion’s initial velocity distribution. This makes it particularly useful for analyzing complex mixtures where ions may have varying kinetic energies. For example, in a sector field mass spectrometer, the combination of electric and magnetic fields (the Mattauch-Herzog geometry) leverages the Lorentz force to achieve high resolution and precision. However, this approach requires careful calibration of both fields to avoid overlapping ion trajectories, which can complicate the analysis.
A critical takeaway is that the Lorentz force’s application in mass spectrometry is not just theoretical but has tangible real-world implications. For instance, in pharmaceutical analysis, mass spectrometers using magnetic fields can identify trace impurities in drug formulations with parts-per-billion sensitivity. Similarly, in environmental science, they detect pollutants in air and water samples, aiding regulatory compliance. To maximize the utility of this technique, operators should regularly calibrate the magnetic field strength and monitor ion beam alignment. For beginners, starting with a lower magnetic field strength (e.g., 1 Tesla) and gradually increasing it can help in understanding the system’s behavior before tackling more complex analyses.
Magnetic Lashes and Lash Extensions: A Compatible Beauty Combo?
You may want to see also
Explore related products
$111.2 $182.2
Mass-to-charge ratio separation
Magnetic fields in mass spectrometry serve as a powerful tool for separating ions based on their mass-to-charge ratio (m/z), a fundamental principle that underpins the entire process. This separation is crucial for identifying and quantifying the components of a sample, from complex biological mixtures to simple inorganic compounds. The key lies in the Lorentz force, which acts on moving charged particles in a magnetic field, causing them to follow curved paths. The radius of this curvature is directly proportional to the m/z ratio, allowing for precise differentiation between ions.
Consider the journey of ions through a mass spectrometer. After ionization, they are accelerated to a specific kinetic energy and enter a magnetic field perpendicular to their direction of motion. Here’s where the magic happens: ions with higher m/z values experience a greater force, causing them to follow a wider circular path, while lighter ions with lower m/z values curve more tightly. This separation is not just theoretical; it’s a practical, measurable phenomenon. For instance, in a typical time-of-flight mass spectrometer, a magnetic field of 1 Tesla can separate ions with m/z ratios ranging from 1 to 1000, enabling the detection of everything from small molecules like water (m/z = 18) to large proteins (m/z > 100,000).
To achieve optimal separation, several factors must be carefully controlled. The strength of the magnetic field, the velocity of the ions, and the geometry of the spectrometer’s components all play critical roles. For example, increasing the magnetic field strength narrows the distribution of ion paths, enhancing resolution. However, this comes with practical limitations, such as the cost and size of high-field magnets. Similarly, the velocity of ions must be uniform to ensure that the m/z ratio remains the dominant factor in their separation. Techniques like electrostatic acceleration and precise timing are employed to maintain this uniformity.
One practical application of m/z separation is in pharmaceutical analysis, where mass spectrometers are used to identify impurities in drug formulations. For instance, a magnetic sector mass spectrometer with a field strength of 5 Tesla can distinguish between a drug molecule (m/z = 300) and a common impurity (m/z = 302) with high precision. This level of specificity is essential for ensuring product safety and efficacy. Additionally, in environmental science, mass spectrometers equipped with magnetic fields are used to detect trace pollutants in water samples, such as heavy metals (e.g., lead, m/z = 208) or pesticides (e.g., glyphosate, m/z = 169).
In conclusion, mass-to-charge ratio separation via magnetic fields is a cornerstone of modern mass spectrometry. By leveraging the Lorentz force and carefully controlling experimental parameters, scientists can achieve unparalleled precision in analyzing complex samples. Whether in drug development, environmental monitoring, or fundamental research, this technique continues to unlock new insights into the molecular world. For anyone working with mass spectrometers, understanding the intricacies of m/z separation is not just beneficial—it’s essential.
Using Aquarium Algae Magnets Safely on Acrylic Tanks: What You Need to Know
You may want to see also
Explore related products
Magnetic sector analyzer role
Magnetic sector analyzers are pivotal in mass spectrometry, leveraging magnetic fields to separate ions based on their mass-to-charge ratio (m/z). When an ion beam enters the magnetic field, it experiences a Lorentz force perpendicular to both its velocity and the magnetic field direction. This force causes ions to follow curved trajectories, with the radius of curvature determined by their m/z value. Lighter ions or those with higher charge states are deflected more sharply, while heavier or lower-charged ions follow broader paths. This principle allows the magnetic sector analyzer to act as a high-resolution filter, directing ions of specific m/z values to a detector while excluding others.
Consider the practical application in isotope ratio mass spectrometry (IRMS), where precise separation of isotopes is critical. For example, in analyzing carbon isotopes (¹²C and ¹³C), the magnetic sector analyzer ensures that only ions with the desired m/z reach the detector, enabling accurate measurement of isotopic ratios. The strength of the magnetic field and the velocity of the ions are carefully calibrated to achieve this separation. A typical magnetic field strength in such instruments ranges from 0.5 to 2 Tesla, depending on the resolution required. This precision is essential in fields like geochemistry, where isotopic ratios provide insights into environmental processes.
One of the key advantages of magnetic sector analyzers is their ability to achieve high mass resolution and accuracy. Unlike quadrupole analyzers, which rely on alternating electric fields, magnetic sectors offer superior resolution for complex mixtures. For instance, in pharmaceutical analysis, where distinguishing between closely related compounds is crucial, magnetic sectors can resolve mass differences as small as 0.001 amu. However, this performance comes with trade-offs: magnetic sector instruments are bulkier, more expensive, and require meticulous alignment of the magnetic field and ion optics.
To optimize performance, operators must consider several factors. First, the ion beam must be focused and stabilized before entering the magnetic field to minimize broadening of the ion trajectories. Second, the magnetic field uniformity is critical; even small deviations can introduce errors in m/z separation. Regular calibration using known standards, such as NIST SRM 986 for carbon isotopes, ensures accuracy. Finally, the sector’s geometry and the ion’s kinetic energy must be precisely matched to achieve the desired resolution. For example, increasing the kinetic energy of ions reduces their time in the magnetic field, which can improve throughput but may slightly decrease resolution.
In conclusion, the magnetic sector analyzer’s role in mass spectrometry is indispensable for applications requiring high precision and resolution. Its ability to separate ions based on m/z using magnetic fields makes it a cornerstone in analytical chemistry, particularly in isotopic analysis and complex mixture characterization. While its complexity and cost may limit accessibility, its performance justifies its use in specialized fields. By understanding its principles and optimizing its operation, researchers can harness its full potential to unlock detailed insights into molecular and atomic structures.
Magnets on Stainless Steel Fridges: Compatibility and Practical Tips
You may want to see also
Frequently asked questions
A mass spectrometer uses magnetic fields to deflect the path of charged ions based on their mass-to-charge ratio (m/z). When ions with the same charge but different masses enter a magnetic field perpendicular to their velocity, they experience a Lorentz force. Lighter ions are deflected more than heavier ions, allowing them to be separated spatially.
The strength of the magnetic field determines the extent of ion deflection. A stronger magnetic field causes greater deflection, while a weaker field results in less deflection. By adjusting the magnetic field strength, the mass spectrometer can precisely control the separation of ions with different m/z values, enabling accurate analysis.
The velocity of ions influences their interaction with the magnetic field. Ions with higher velocities experience a smaller radius of curvature when deflected, while slower ions are deflected more sharply. To ensure consistent separation, mass spectrometers often accelerate ions to a uniform velocity before they enter the magnetic field.
