Transformers are essential components in electrical power systems, facilitating the efficient transmission of electricity over long distances. At the heart of a transformer's operation is its ability to generate a magnetic field, which is crucial for the process of electromagnetic induction. This phenomenon occurs when an alternating current (AC) flows through the primary winding of the transformer, creating a fluctuating magnetic field. The secondary winding, which is electrically isolated from the primary, then induces a voltage due to the changing magnetic flux. This process allows for the transformation of voltage levels, enabling power to be transmitted at high voltages to minimize energy loss and then stepped down to safer levels for consumer use. The magnetic field generated by the transformer is thus a fundamental element in the conversion and distribution of electrical energy.
Explore related products
What You'll Learn
- Coil of Wire: A coil of wire is wound around a core, creating a magnetic field when current flows through it
- Electric Current: The flow of electric current through the coil generates a magnetic field around the transformer
- Core Material: The core, typically made of iron or steel, enhances the magnetic field created by the coil
- Magnetic Flux: The magnetic flux lines form a closed loop around the core and coil, representing the magnetic field
- Induction: The changing magnetic field induces a voltage in the secondary coil, enabling the transformer to step up or down voltage
Coil of Wire: A coil of wire is wound around a core, creating a magnetic field when current flows through it
A coil of wire is a fundamental component in the construction of a transformer. When current flows through this coil, it generates a magnetic field, which is a crucial step in the transformer's operation. The magnetic field produced by the coil induces a voltage in another coil, known as the secondary coil, through the principle of electromagnetic induction. This process allows the transformer to step up or step down the voltage, depending on the turns ratio of the primary and secondary coils.
The core around which the coil is wound plays a significant role in enhancing the magnetic field. It is typically made of a ferromagnetic material, such as iron or steel, which increases the permeability of the magnetic field. This means that the magnetic field lines are more concentrated within the core, leading to a stronger magnetic field and, consequently, a more efficient induction process.
The number of turns in the coil also affects the strength of the magnetic field. A coil with more turns will produce a stronger magnetic field when the same current flows through it. This is because each turn contributes to the overall magnetic field, and the fields from all the turns add up constructively. In a transformer, the primary coil usually has more turns than the secondary coil if it is designed to step up the voltage, or fewer turns if it is designed to step down the voltage.
The current flowing through the coil must be alternating current (AC) for the transformer to function properly. This is because AC current changes direction periodically, which causes the magnetic field to collapse and re-establish itself in the opposite direction. This alternating magnetic field is necessary for inducing a voltage in the secondary coil. If direct current (DC) were used, the magnetic field would remain constant, and no induction would occur.
In summary, the coil of wire in a transformer is essential for creating the magnetic field that enables voltage transformation. The core material, the number of turns in the coil, and the use of AC current all contribute to the efficiency and effectiveness of this process. Understanding these principles is crucial for designing and operating transformers in various electrical applications.
Crafting Magnetic Storm Windows: A DIY Guide to Enhanced Home Protection
You may want to see also
Explore related products
Electric Current: The flow of electric current through the coil generates a magnetic field around the transformer
The flow of electric current through the coil of a transformer is the fundamental process that generates a magnetic field around the device. This phenomenon is based on the principle of electromagnetism, which states that an electric current flowing through a conductor creates a magnetic field perpendicular to the direction of the current. In the case of a transformer, the coil is typically wound around a core made of ferromagnetic material, such as iron or steel. When an alternating current (AC) flows through the coil, it creates a constantly changing magnetic field around the core.
The magnetic field generated by the coil induces a voltage in the secondary winding of the transformer. This is due to the phenomenon of electromagnetic induction, which occurs when a conductor is moved through a magnetic field or when the magnetic field around a conductor changes. The induced voltage in the secondary winding is proportional to the number of turns in the winding and the rate of change of the magnetic field. This allows the transformer to step up or step down the voltage of the AC current, depending on the relative number of turns in the primary and secondary windings.
The strength of the magnetic field generated by the transformer depends on several factors, including the magnitude of the electric current, the number of turns in the coil, and the permeability of the core material. The magnetic field is strongest at the center of the coil and decreases with distance from the coil. The field is also affected by the frequency of the AC current, with higher frequencies resulting in weaker magnetic fields.
In order to maximize the efficiency of the transformer, it is important to minimize energy losses due to factors such as resistance in the windings and eddy currents in the core. This can be achieved through careful design of the transformer, including the selection of appropriate materials and the optimization of the winding configuration. Additionally, the transformer should be operated within its rated capacity to avoid overheating and other potential hazards.
In summary, the flow of electric current through the coil of a transformer generates a magnetic field around the device, which is used to induce a voltage in the secondary winding. This process is based on the principles of electromagnetism and electromagnetic induction, and the strength of the magnetic field depends on several factors, including the magnitude of the current, the number of turns in the coil, and the permeability of the core material. Efficient operation of the transformer requires careful design and operation within its rated capacity.
Crafting Custom Car Magnets: A Step-by-Step Guide
You may want to see also
Explore related products
Core Material: The core, typically made of iron or steel, enhances the magnetic field created by the coil
The core material in a transformer, typically made of iron or steel, plays a crucial role in enhancing the magnetic field created by the coil. This is due to the high magnetic permeability of these materials, which allows them to concentrate magnetic flux and increase the efficiency of the transformer. The core acts as a pathway for the magnetic field, directing it from the primary coil to the secondary coil, and thus facilitating the transfer of energy.
In terms of construction, the core is usually made up of thin sheets of iron or steel, known as laminations, which are stacked together to form the desired shape. This lamination process is essential to reduce eddy currents, which are unwanted currents that can flow through the core and cause energy losses. By using thin sheets, the eddy currents are minimized, and the overall efficiency of the transformer is improved.
The choice of core material can also impact the performance of the transformer. For instance, silicon steel is often used in high-frequency applications due to its lower core loss and higher permeability compared to regular steel. On the other hand, ferrite cores are used in high-frequency and high-power applications because they have even lower core losses and can handle higher temperatures.
In summary, the core material in a transformer is a critical component that enhances the magnetic field created by the coil. Its high magnetic permeability, lamination process, and choice of material all contribute to the efficiency and performance of the transformer. Without the core, the transformer would not be able to effectively transfer energy from the primary coil to the secondary coil.
Exploring the Magnetic Magic Behind Your Refrigerator's Functionality
You may want to see also
Explore related products

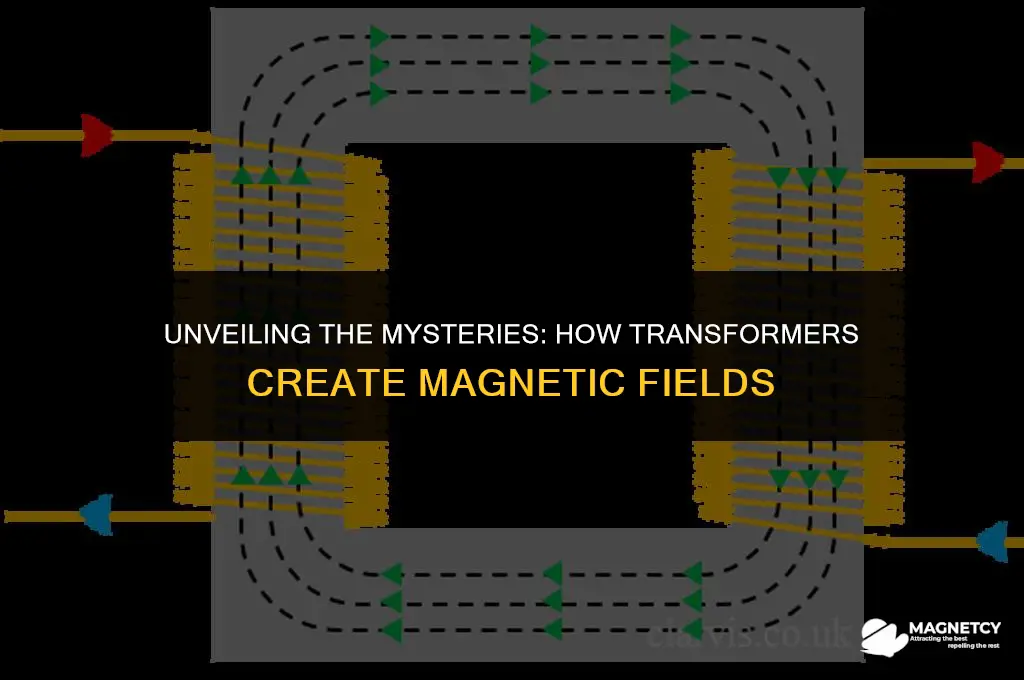

Magnetic Flux: The magnetic flux lines form a closed loop around the core and coil, representing the magnetic field
The magnetic flux lines in a transformer form a crucial component of its operation. These lines create a closed loop around the core and coil, effectively representing the magnetic field that is essential for the transformer's function. This magnetic flux is generated when an alternating current (AC) flows through the primary coil, which is wrapped around the core. The changing current induces a varying magnetic field within the core, causing the flux lines to move and create an electromotive force (EMF) in the secondary coil.
One key aspect of magnetic flux in transformers is its direction and density. The flux lines emerge from the north pole of the core and re-enter at the south pole, creating a continuous loop. The density of these flux lines is directly proportional to the strength of the magnetic field; where the lines are closer together, the field is stronger. This is why the core material is typically made of a ferromagnetic substance, such as iron, which helps to concentrate and direct the magnetic flux more efficiently.
Another important consideration is the rate of change of the magnetic flux. As the AC current in the primary coil changes direction and magnitude, the magnetic flux lines must also adjust accordingly. This change in flux induces an EMF in the secondary coil, which is the fundamental principle behind the transformer's ability to step up or step down voltage. The faster the rate of change of the flux, the greater the induced EMF, and thus the higher the voltage transformation ratio.
In practical applications, the design of the transformer core and coils must take into account the magnetic flux requirements. The core must be able to handle the maximum flux density without reaching saturation, which would reduce its efficiency. The coils must be wound in such a way as to maximize the linkage between the magnetic flux and the conductors, ensuring optimal voltage transformation. Additionally, the use of magnetic shielding materials can help to contain the magnetic field within the transformer and prevent interference with other electrical components.
In summary, the magnetic flux lines in a transformer play a vital role in its operation, representing the magnetic field that enables voltage transformation. The direction, density, and rate of change of these flux lines are all critical factors that must be carefully considered in the design and application of transformers. By understanding and optimizing these aspects of magnetic flux, engineers can create more efficient and effective transformer designs for a wide range of electrical applications.
Exploring Replacement Magnet Options for Polaris Flywheels
You may want to see also
Explore related products
Induction: The changing magnetic field induces a voltage in the secondary coil, enabling the transformer to step up or down voltage
The principle of induction is fundamental to the operation of a transformer. When an alternating current (AC) flows through the primary coil of a transformer, it creates a changing magnetic field. This dynamic field induces a voltage in the secondary coil, which is the key to the transformer's ability to alter voltage levels. The process is governed by Faraday's law of electromagnetic induction, which states that the induced electromotive force (EMF) in a coil is proportional to the rate of change of the magnetic flux through the coil.
The transformer's core, typically made of ferromagnetic material like iron, enhances the magnetic field produced by the primary coil. This intensified field increases the efficiency of induction in the secondary coil. The number of turns in the primary and secondary coils also plays a crucial role in determining the voltage transformation ratio. If the secondary coil has more turns than the primary, the voltage will be stepped up; conversely, if it has fewer turns, the voltage will be stepped down.
The induction process in a transformer is not instantaneous but occurs over a fraction of a second as the magnetic field oscillates. This delay is known as the magnetizing inductance and is a critical factor in the transformer's performance, especially under varying load conditions. The ability to step up or down voltage efficiently makes transformers indispensable in electrical power distribution systems, allowing for the transmission of electricity over long distances with minimal energy loss.
In practical applications, transformers are designed with specific turn ratios and core materials to meet the requirements of different electrical systems. For instance, a step-up transformer might be used to increase the voltage for transmission over power lines, while a step-down transformer would be employed to reduce the voltage for safe use in residential or commercial settings. The efficiency of these devices is typically high, with modern transformers achieving efficiencies of over 95%, thanks to advancements in materials and design.
Understanding the induction process in transformers is essential for engineers and technicians working in the field of electrical engineering. It allows them to design, maintain, and troubleshoot transformers effectively, ensuring the reliable and safe operation of electrical systems. Moreover, the principles of electromagnetic induction have broader applications beyond transformers, influencing the design of various electrical devices and systems.
Crafting Power: A Guide to Making Battery Magnet Wires
You may want to see also
Frequently asked questions
The primary component in a transformer that creates the magnetic field is the primary winding. When an alternating current (AC) flows through the primary winding, it generates a magnetic field around the core.
The magnetic field created by the primary winding induces voltage in the secondary winding through electromagnetic induction. As the magnetic field changes with the AC current in the primary, it causes the electrons in the secondary winding to move, generating an induced voltage.
The core, typically made of ferromagnetic material like iron or steel, plays a crucial role in enhancing the magnetic field in a transformer. It provides a path for the magnetic field lines to follow, increasing the field's strength and ensuring efficient transfer of energy from the primary to the secondary winding.
