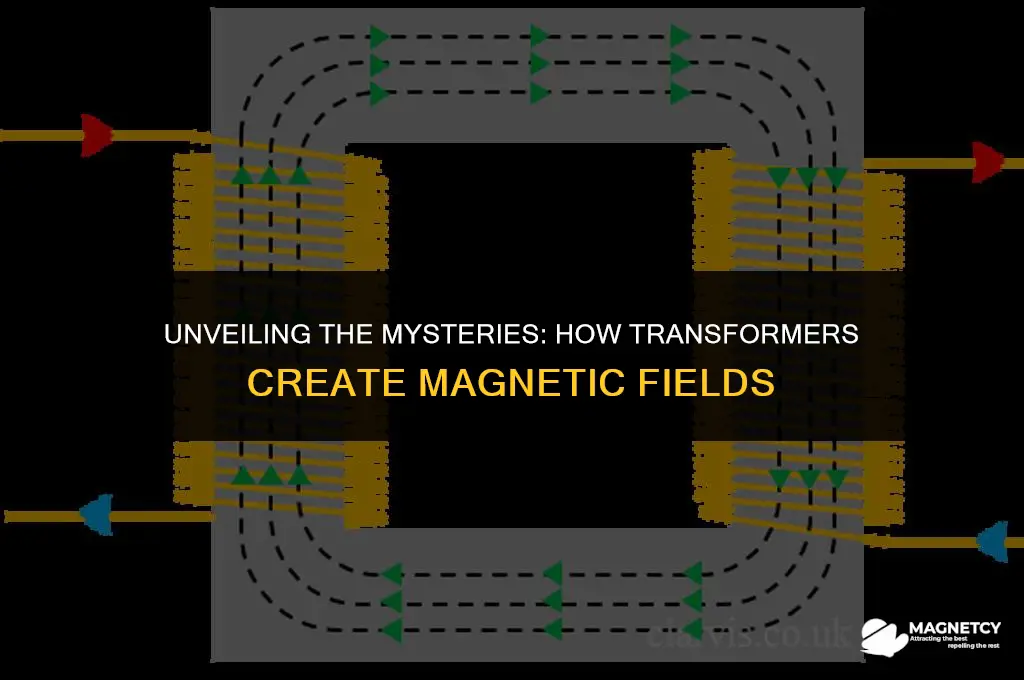

Transformers are essential components in electrical power systems, enabling the efficient transmission of electricity over long distances. At the heart of a transformer's operation is its ability to create a magnetic field, which is crucial for the process of electromagnetic induction. This magnetic field is generated by the primary winding of the transformer when an alternating current (AC) flows through it. The changing current in the primary winding produces a varying magnetic flux, which in turn induces a voltage in the secondary winding. This process allows for the transformation of voltage levels, making it possible to step up or step down the voltage as needed for different applications. Understanding how a transformer creates a magnetic field is fundamental to grasping the principles of electromagnetic induction and the broader functioning of electrical power systems.
| Characteristics | Values |
|---|---|
| Component | Transformer core, usually made of ferromagnetic material like iron or steel |
| Function | Transfers electrical energy between circuits through electromagnetic induction |
| Magnetic Field | Created by the flow of electric current through the transformer's coils |
| Coil Structure | Primary and secondary coils wound around the transformer core |
| Voltage Ratio | Depends on the turns ratio of the primary to secondary coils |
| Efficiency | High, typically above 95%, due to minimal energy loss |
| Applications | Power distribution, voltage conversion, impedance matching |
| Operating Principle | Based on Faraday's law of electromagnetic induction |
| Frequency Range | Typically operates at standard power line frequencies (50/60 Hz) |
| Insulation | Uses insulating materials to prevent electrical breakdown and ensure safety |
| Cooling System | Often air-cooled, sometimes oil-cooled for larger transformers |
| Maintenance | Requires periodic inspection and maintenance to ensure optimal performance |
| Safety Features | Includes grounding, overcurrent protection, and fire safety measures |
| Environmental Impact | Designed to minimize energy loss and reduce electromagnetic interference |
| Cost | Varies based on size, capacity, and specific application requirements |
Explore related products
What You'll Learn
- Coil of Wire: A coil of wire is wound around a core, creating a magnetic field when current flows through it
- Electric Current: The flow of electric current through the coil generates a magnetic field around the transformer
- Core Material: The core, typically made of iron or steel, enhances the magnetic field created by the coil
- Magnetic Flux: The magnetic field lines, or flux, pass through the core and coil, linking the primary and secondary windings
- Induction: The changing magnetic field induces a voltage in the secondary winding, enabling the transformer to step up or down voltage
Coil of Wire: A coil of wire is wound around a core, creating a magnetic field when current flows through it
A coil of wire is a fundamental component in the creation of a magnetic field within a transformer. When current flows through this coil, it generates a magnetic field that is essential for the transformer's operation. This process is based on the principle of electromagnetism, where an electric current produces a magnetic field. The coil is typically wound around a core made of ferromagnetic material, which enhances the magnetic field's strength.
The number of turns in the coil and the current flowing through it directly influence the magnetic field's intensity. More turns and higher current will result in a stronger magnetic field. This field is crucial because it induces a voltage in the secondary coil of the transformer, allowing for the transformation of electrical energy from one level to another.
Transformers are critical in electrical power systems for stepping up voltage for transmission and stepping it down for safe use in homes and businesses. The efficiency of this process relies heavily on the magnetic field created by the primary coil. Innovations in coil design and materials are continually being explored to improve transformer efficiency and reduce energy losses.
In summary, the coil of wire in a transformer is not just a passive component but an active participant in the creation of a magnetic field, which is the heart of the transformer's functionality. Understanding the intricacies of how this coil operates is key to grasping the broader principles of electromagnetic induction and energy transformation.
