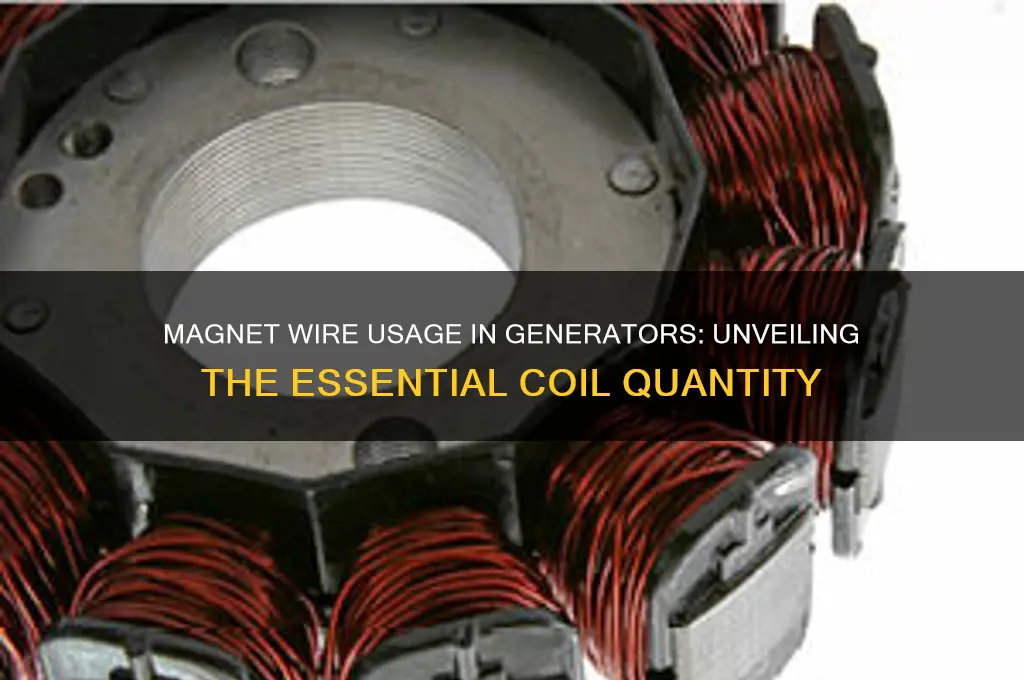

Magnet Wire Usage In Generators: Unveiling The Essential Coil Quantity

The amount of magnet wire used in a generator depends on several factors, including the generator's size, power output, and design. Magnet wire, also known as winding wire, is a critical component in generators, as it forms the coils that produce the magnetic field necessary for electricity generation. Typically, larger generators with higher power outputs require more magnet wire due to the increased number of turns needed in the coils to achieve the desired magnetic field strength. For instance, a small portable generator might use a few hundred meters of magnet wire, while a large industrial generator could require several kilometers. The wire's gauge and insulation type also play a role, as finer wires allow for more turns in a given space but may increase resistance. Ultimately, the precise amount of magnet wire is determined by the generator's specifications and the efficiency goals of its design.

Wire Gauge Selection: Choosing the right gauge for efficiency and current capacity in generator windings

The amount of magnet wire in a generator is directly tied to the wire gauge selected for the windings. Thicker wire (lower gauge number) carries more current but increases resistance and waste heat. Thinner wire (higher gauge number) reduces resistance but limits current capacity. This delicate balance demands careful consideration of the generator’s intended load, efficiency goals, and operating environment.

Step 1: Determine Maximum Current Requirements

Start by calculating the peak current the generator must handle. For a 5kW generator at 240V, the maximum current is approximately 20.8A (5000W ÷ 240V). Select a wire gauge that safely exceeds this current capacity. For instance, 12 AWG copper wire, rated for 25A at 60°C, provides a 20% safety margin.

Caution: Overlooking Temperature Effects

Higher operating temperatures reduce wire current capacity. If the generator runs in a hot environment (e.g., 80°C), derate the wire’s current-carrying ability. A 14 AWG wire rated for 20A at 60°C drops to ~16A at 80°C. Always consult temperature correction factors in wire specifications.

Analysis: Resistance vs. Efficiency

Thicker wire minimizes resistance losses but adds weight and cost. For example, replacing 18 AWG with 14 AWG in a 100-turn winding reduces resistance by ~60%, improving efficiency by 2-3%. However, the added copper increases material costs by 40%. Prioritize thicker wire for high-current applications or where efficiency is critical.

Practical Tip: Layering for Compact Designs

In space-constrained generators, use multi-strand wire or layer thinner gauges to achieve higher current capacity without increasing diameter. For instance, four 20 AWG strands in parallel match the current capacity of a single 16 AWG wire but allow tighter winding. Ensure proper insulation to prevent short circuits between layers.

Wire gauge selection is a trade-off between current capacity, efficiency, and cost. Start with current requirements, factor in temperature derating, and weigh the efficiency gains against material expenses. For most small generators (1-10kW), 14-18 AWG copper wire strikes an optimal balance, while larger units may require 10-12 AWG for higher loads. Always test prototypes to validate performance under real-world conditions.

Coil Length Calculation: Determining the total wire length needed for specific coil configurations

The length of magnet wire required for a generator coil is a critical factor in its design, directly impacting efficiency, cost, and performance. Understanding how to calculate this length for specific coil configurations is essential for engineers and hobbyists alike. The process involves considering the coil's geometry, the number of turns, and the wire's diameter, all of which influence the total wire length needed.

Analytical Approach: Breaking Down the Variables

To determine the total wire length, start by defining the coil's parameters. For a solenoid-shaped coil, the formula \( L = N \times (D + d) \times \pi \) is commonly used, where \( L \) is the total wire length, \( N \) is the number of turns, \( D \) is the coil diameter, and \( d \) is the wire diameter. For example, a coil with 100 turns, a diameter of 5 cm, and a wire diameter of 1 mm would require \( 100 \times (50 + 1) \times \pi \approx 16,336 \) mm of wire. This formula assumes a tightly wound coil with no gaps between turns, which is ideal for maximizing efficiency in generators.

Instructive Steps: Practical Calculation Guide

Begin by measuring the coil's outer diameter and the wire diameter using calipers for precision. Next, decide on the number of turns based on the generator's voltage and current requirements. For flat spiral coils, calculate the length using the formula \( L = N \times \sqrt{(O^2 - I^2)} \times \pi \), where \( O \) is the outer diameter and \( I \) is the inner diameter. Always add a 10–15% buffer to account for wire bending and end terminations. For instance, if a spiral coil has 50 turns with an outer diameter of 10 cm and an inner diameter of 2 cm, the calculation yields \( 50 \times \sqrt{(10^2 - 2^2)} \times \pi \approx 1,413 \) cm, plus buffer.

Comparative Insight: Coil Configurations and Wire Usage

Different coil configurations demand varying wire lengths. A pancake coil, for instance, uses less wire than a solenoid of equivalent diameter due to fewer turns but requires careful layering to avoid short circuits. In contrast, a toroidal coil maximizes magnetic field efficiency but complicates wire length calculations due to its circular core. For a toroid, the formula \( L = N \times 2\pi \times r \) applies, where \( r \) is the mean radius of the toroid. Comparing these configurations highlights the trade-offs between wire usage, efficiency, and manufacturing complexity.

Descriptive Application: Real-World Example

Consider a small generator designed for portable electronics, featuring a solenoid coil with 200 turns, a 3 cm diameter, and 0.5 mm wire. Using the formula, the wire length is \( 200 \times (30 + 0.5) \times \pi \approx 19,635 \) mm. Adding a 12% buffer results in approximately 22,000 mm (22 meters) of wire. This example illustrates how precise calculations ensure minimal waste and optimal performance, especially in cost-sensitive applications. Always verify calculations with prototyping to account for real-world deviations like wire insulation thickness.

Persuasive Takeaway: Precision Pays Off

Accurate coil length calculation is not just a technical exercise—it’s a cost-saving strategy. Overestimating wire length leads to unnecessary material expenses, while underestimating risks incomplete coils and project delays. By mastering these calculations and adapting them to specific coil configurations, you ensure generators operate at peak efficiency with minimal resource waste. Invest time in precise measurements and formulas; the payoff is in both performance and economics.

Insulation Thickness Impact: How insulation affects wire diameter and overall usage in generators

Magnet wire insulation thickness is a critical factor in generator design, directly influencing wire diameter and overall material usage. Thicker insulation increases the wire's overall diameter, reducing the number of turns that can fit within a given coil space. For example, a 24-gauge wire with 0.010” insulation thickness might have an overall diameter of 0.034”, while the same gauge wire with 0.015” insulation could measure 0.049”. This seemingly small difference can significantly impact coil density and, consequently, the generator’s efficiency and output.

Consider the practical implications: in a 10 kW generator, where coil space is limited, using thicker insulation might necessitate a larger stator core or reduce the number of turns per coil. Fewer turns mean lower magnetic flux density, potentially decreasing the generator’s power output. Conversely, thinner insulation allows for more turns in the same space, enhancing performance but at the risk of insulation breakdown under high voltage or temperature. Engineers must balance these trade-offs, often opting for insulation thicknesses like 0.010” to 0.015” for high-efficiency designs, while heavier-duty applications might require 0.020” or more for durability.

The choice of insulation material further complicates this decision. Polyurethane, for instance, offers excellent thermal and mechanical properties at a thickness of 0.010”, making it ideal for compact, high-performance generators. In contrast, heavier insulation like heavy-build polyester (0.020”+) provides superior resistance to abrasion and chemicals but at the cost of increased wire diameter. For a 50 kW generator operating in harsh conditions, the added durability might justify the reduced coil density, while a smaller, portable unit would prioritize efficiency over robustness.

To optimize magnet wire usage, follow these steps: first, determine the generator’s operating voltage and temperature range to select the minimum viable insulation thickness. For example, a low-voltage (120V) application might use 0.008” insulation, while a high-voltage (600V) system requires at least 0.015”. Second, calculate the required number of turns based on the coil space and desired magnetic flux. Finally, compare wire options with varying insulation thicknesses to find the best balance between diameter, cost, and performance. Tools like AWG (American Wire Gauge) charts with insulation thickness included can streamline this process.

In conclusion, insulation thickness is not just a technical detail but a pivotal design decision affecting generator efficiency, size, and reliability. By understanding its impact on wire diameter and coil density, engineers can make informed choices that maximize performance while minimizing material waste. Whether prioritizing compactness or durability, the right insulation thickness ensures the generator meets its operational demands without unnecessary compromises.

Efficiency vs. Wire Quantity: Balancing wire amount with generator performance and energy output

The amount of magnet wire in a generator directly impacts its efficiency and energy output, but more wire doesn’t always mean better performance. Each additional layer of wire increases the number of turns in the coil, boosting magnetic flux and, theoretically, power generation. However, this comes with trade-offs: increased resistance from longer wire lengths leads to higher energy losses as heat. For instance, a generator with 1,000 turns of 24-gauge wire might produce 10% more power than one with 500 turns but could also dissipate 15% more energy as waste heat. This delicate balance requires careful optimization to maximize output without sacrificing efficiency.

To strike this balance, engineers follow a systematic approach. First, calculate the required number of turns based on the generator’s target voltage and frequency using the formula *N = (V × 10^8) / (4.44 × f × B × A)*, where *N* is turns, *V* is voltage, *f* is frequency, *B* is magnetic flux density, and *A* is coil area. Next, select wire gauge to minimize resistance while ensuring mechanical stability—thicker wire reduces resistance but limits the number of turns. For example, a 20-kW generator might use 22-gauge wire with 800 turns, while a 5-kW model could opt for 26-gauge wire with 1,200 turns. Always account for insulation thickness, as it affects coil diameter and cooling efficiency.

A comparative analysis reveals that high-efficiency generators prioritize wire quality over quantity. Premium enameled copper wire, though costly, offers lower resistivity than aluminum alternatives, enabling fewer turns without compromising performance. For instance, a generator using copper wire with 600 turns can outperform one with 800 turns of aluminum wire by 12% in efficiency. Similarly, litz wire—a braided multi-strand design—reduces skin effect losses in high-frequency applications, making it ideal for compact, high-output generators despite its higher price tag.

Practical tips for balancing wire quantity and efficiency include: (1) Use online calculators to determine optimal turn count and wire gauge for your generator’s specifications. (2) Implement active cooling systems, such as forced air or liquid cooling, to manage heat dissipation from longer wire lengths. (3) Test prototypes with varying wire configurations to identify the sweet spot between output and efficiency. For small-scale projects, start with 24-gauge wire and adjust based on performance metrics. Remember, the goal is not to maximize wire usage but to optimize it for the intended application.

Material Cost Analysis: Evaluating the cost of magnet wire in relation to generator production

Magnet wire, also known as enameled wire, is a critical component in generator production, serving as the conductive element in the generator's coils. The amount of magnet wire required varies significantly based on the generator's size, type, and application. For instance, a small portable generator might use a few hundred meters of wire, while a large industrial generator can consume several kilometers. Understanding the cost implications of magnet wire is essential for manufacturers to optimize production expenses and maintain competitive pricing.

Analyzing Cost Drivers

The cost of magnet wire in generator production is influenced by several factors. Firstly, the material composition—typically copper or aluminum—plays a pivotal role. Copper, though more expensive, offers superior conductivity and is preferred for high-efficiency generators. Aluminum, being cheaper, is often used in cost-sensitive applications but requires a larger cross-sectional area to achieve equivalent conductivity. Secondly, the wire's gauge and insulation thickness impact both material usage and performance. Thicker insulation enhances durability but increases costs, while thinner gauges reduce material use but may compromise efficiency. Lastly, market fluctuations in raw material prices, such as copper, directly affect the overall cost of magnet wire.

Quantifying Usage and Cost

To evaluate the cost of magnet wire, manufacturers must first quantify its usage in relation to generator specifications. For example, a 10 kW generator might require approximately 500 meters of 1.5 mm diameter copper wire, costing around $200–$300, depending on market prices. In contrast, a 1 MW industrial generator could use over 10 kilometers of wire, escalating costs to $10,000–$15,000. To optimize expenses, manufacturers can adopt strategies like bulk purchasing, selecting aluminum wire for less demanding applications, or using thinner insulation where mechanical stress is minimal.

Comparative Cost Analysis

Comparing the cost of magnet wire across different generator types reveals significant disparities. Small residential generators, with their lower wire requirements, contribute minimally to overall production costs, often accounting for less than 5%. In contrast, large-scale generators, such as those used in wind turbines or power plants, can allocate up to 20% of their material budget to magnet wire. This highlights the need for tailored cost-saving measures based on generator scale. For instance, investing in high-efficiency copper wire for large generators can yield long-term energy savings, offsetting higher initial costs.

Practical Tips for Cost Optimization

Manufacturers can reduce magnet wire costs through strategic planning and innovation. First, adopting automated winding processes minimizes waste and improves precision. Second, exploring alternative materials like aluminum or copper alloys can balance cost and performance. Third, monitoring market trends and securing long-term supply contracts can mitigate price volatility. Finally, designing generators with optimized coil configurations reduces wire usage without compromising output. By integrating these strategies, manufacturers can effectively manage magnet wire costs, ensuring profitability while maintaining product quality.
