Calculating magnetic flux using the B-H curve is a fundamental process in electromagnetism, particularly in understanding the relationship between magnetic field strength (H) and magnetic flux density (B) in ferromagnetic materials. The B-H curve, also known as the hysteresis loop, graphically represents this relationship, showing how B varies with H as the material is subjected to changing magnetic fields. To calculate magnetic flux (Φ), which is the total magnetic field passing through a given area, one must integrate the product of B and the area (A) over the surface. When using the B-H curve, the value of B is determined from the curve for a specific H, and the flux is then computed as Φ = B × A. This method is crucial in designing and analyzing devices such as transformers, inductors, and magnetic cores, where understanding the magnetic properties of materials is essential for optimal performance.
| Characteristics | Values |
|---|---|
| Definition of Magnetic Flux | Magnetic flux (Φ) is the total magnetic field passing through a surface, calculated as Φ = B * A * cos(θ), where B is magnetic flux density, A is the area, and θ is the angle between the field and surface normal. |
| B-H Curve (Magnetic Hysteresis Loop) | A graphical representation of the relationship between magnetic flux density (B) and magnetic field strength (H) for a ferromagnetic material. |
| Calculation Using B-H Curve | 1. Determine H from the applied current and geometry. 2. Use the B-H curve to find B corresponding to H. 3. Calculate Φ = B * A (assuming θ = 0° for simplicity). |
| Units | - Magnetic Flux (Φ): Weber (Wb) or Tesla * square meter (T·m²) - Magnetic Flux Density (B): Tesla (T) - Magnetic Field Strength (H): Ampere per meter (A/m) |
| Dependencies | - Material properties (e.g., permeability, hysteresis) - Applied magnetic field (H) - Geometry of the core or material |
| Applications | Transformers, inductors, magnetic sensors, and electromagnetic devices. |
| Nonlinearity | The B-H curve is nonlinear, especially for ferromagnetic materials, requiring iterative or numerical methods for accurate calculations. |
| Hysteresis Effect | Magnetic flux depends on the history of magnetization, affecting calculations in dynamic systems. |
| Frequency Dependancy | At high frequencies, core losses (eddy currents and hysteresis) alter the effective B-H relationship. |
| Practical Tools | Finite Element Analysis (FEA) software or lookup tables for precise calculations. |
Explore related products
What You'll Learn
Understanding B-H Curve Basics

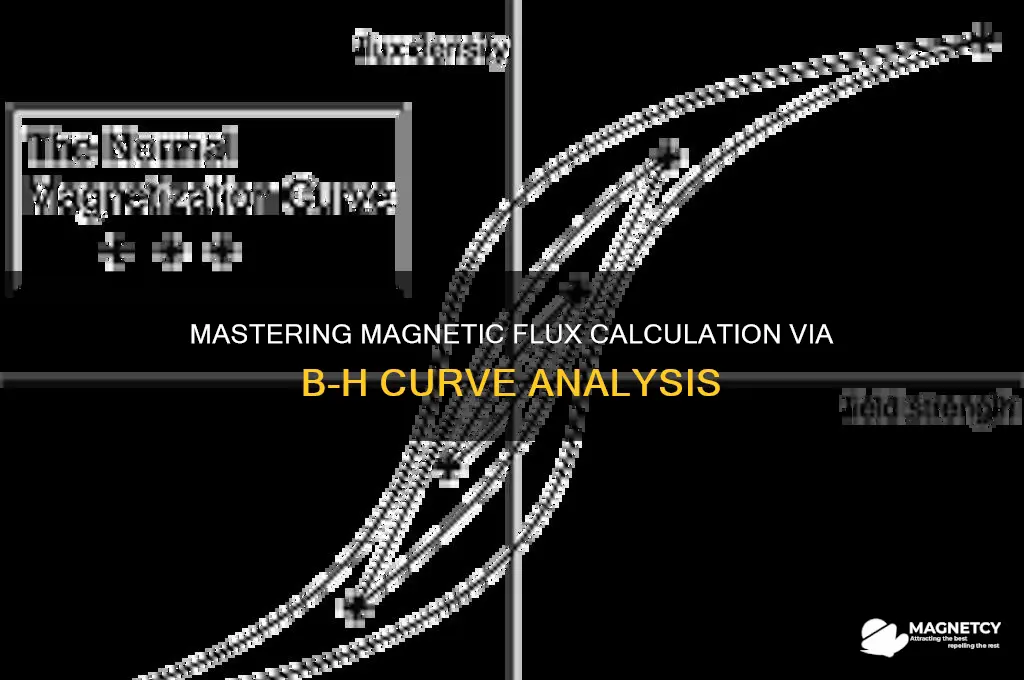

The B-H curve, also known as the hysteresis loop, is a graphical representation of the relationship between magnetic flux density (B) and magnetic field strength (H) in a magnetic material. This curve is essential for understanding how a material responds to an applied magnetic field, and it plays a critical role in calculating magnetic flux. To begin, consider that the area enclosed by the B-H curve directly relates to the energy stored in the magnetic field. For instance, in a ferromagnetic material like iron, the curve shows rapid saturation at high B values, indicating the material’s ability to concentrate magnetic flux efficiently. This behavior is why such materials are used in transformers and inductors.
Analyzing the B-H curve reveals key parameters that influence magnetic flux calculations. The slope of the curve, known as permeability (μ), determines how easily a material can be magnetized. For linear portions of the curve, permeability is constant, simplifying calculations. However, in nonlinear regions, such as near saturation, permeability varies, requiring iterative methods or numerical integration to accurately compute flux. For example, in a transformer core, operating near the knee of the curve (where B increases sharply with H) can lead to inefficiencies due to core saturation, emphasizing the need to stay within the linear range for optimal performance.
To calculate magnetic flux (Φ) using the B-H curve, follow these steps: first, determine the magnetic field strength (H) applied to the material. Next, use the B-H curve to find the corresponding magnetic flux density (B). Magnetic flux is then calculated as the product of B, the cross-sectional area (A) of the material, and the length (L) over which the field acts: Φ = B * A. For materials with complex B-H curves, such as those exhibiting hysteresis, integrate the B-H relationship over the entire loop to account for energy losses. Practical tip: For laminated cores, reduce eddy currents by using thin layers, which minimizes energy dissipation and improves efficiency.
A comparative analysis of B-H curves for different materials highlights their unique properties. Soft magnetic materials, like silicon steel, exhibit narrow hysteresis loops with high permeability, making them ideal for applications requiring frequent magnetization changes, such as motors. In contrast, hard magnetic materials, like neodymium, have wide loops and retain magnetization, suitable for permanent magnets. Understanding these differences ensures the right material is chosen for specific applications. For instance, a designer selecting a core material for a high-frequency inductor would prioritize low hysteresis loss and high permeability to minimize energy waste.
Finally, interpreting the B-H curve requires caution. Overlooking hysteresis losses can lead to underestimating energy consumption in cyclic applications. Additionally, temperature effects can shift the curve, altering permeability and saturation points. For example, operating a transformer at elevated temperatures may push the core into saturation prematurely, reducing efficiency. To mitigate this, derate the operating flux density or select materials with stable performance over the expected temperature range. By mastering B-H curve basics, engineers can accurately calculate magnetic flux and optimize designs for reliability and efficiency.
