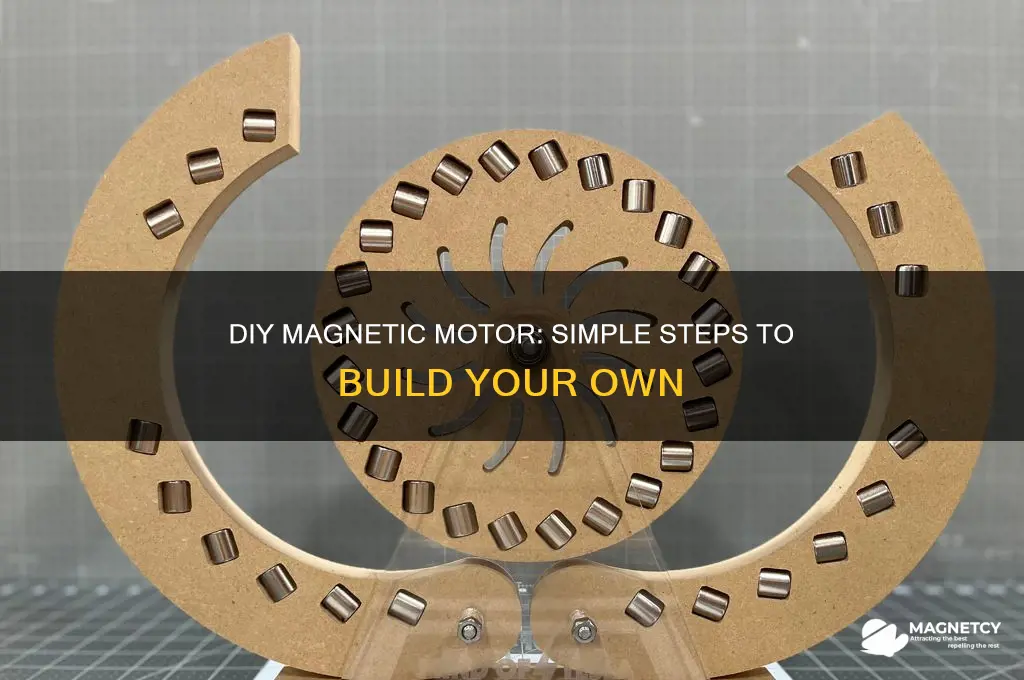

Creating a motor using magnets is a fascinating and educational project that demonstrates the principles of electromagnetism and motion. By harnessing the interaction between magnetic fields and electric currents, you can build a simple yet functional motor with basic materials such as magnets, wire, a battery, and a few other components. The key lies in arranging the magnets to create a stable magnetic field and then using a coiled wire, known as an armature, to generate a rotating force when an electric current passes through it. This process, governed by Faraday’s law of electromagnetic induction, results in continuous rotation, showcasing how magnetic forces can be converted into mechanical energy. Whether for a school project or personal curiosity, constructing a magnet-based motor offers valuable insights into the fundamentals of electrical engineering and physics.
Explore related products
What You'll Learn
- Magnet Selection: Choose strong neodymium magnets for optimal motor performance and efficiency
- Coil Winding: Create a tightly wound copper coil to interact with magnetic fields
- Commutator Setup: Install a commutator to reverse current flow and sustain rotation
- Axle Assembly: Use a low-friction axle to minimize energy loss during rotation
- Power Source: Connect a DC power supply to energize the coil and initiate motion
Magnet Selection: Choose strong neodymium magnets for optimal motor performance and efficiency
The heart of any magnet-based motor lies in its magnetic field strength. Neodymium magnets, composed of an alloy of neodymium, iron, and boron (NdFeB), boast the highest magnetic properties among commercially available permanent magnets. This exceptional strength translates directly into more powerful motors, capable of generating greater torque and achieving higher rotational speeds.
Imagine a race car: its engine's power determines its speed and acceleration. Similarly, the strength of your chosen magnets dictates the performance of your motor.
Selecting the right neodymium magnets involves considering several key factors. Firstly, grade is crucial. Neodymium magnets are categorized by grades like N42, N52, etc., with higher numbers indicating stronger magnetic force. For optimal motor performance, aim for grades N48 or higher. Secondly, size matters. Larger magnets generally produce stronger fields, but balance this with the physical constraints of your motor design. Finally, shape plays a role. Disc or cylinder magnets are common choices, offering a good balance between surface area and ease of mounting.
Pro Tip: For maximum efficiency, ensure the magnet's poles are aligned correctly within the motor assembly.
While neodymium magnets offer unparalleled strength, they require careful handling. These magnets are brittle and can chip or crack if subjected to rough treatment. Additionally, their strong magnetic fields can interfere with electronic devices and pose a safety hazard if not handled responsibly. Always keep them away from pacemakers, credit cards, and other sensitive items.
Caution: Never attempt to machine or drill neodymium magnets yourself. The heat generated can demagnetize them or even cause them to shatter.
Despite these considerations, the benefits of using neodymium magnets in your motor project are undeniable. Their superior strength allows for smaller, lighter, and more efficient motor designs compared to motors using weaker magnets. This makes them ideal for applications where size and weight are critical, such as in drones, electric vehicles, and portable electronics. By carefully selecting the appropriate grade, size, and shape, you can harness the full potential of neodymium magnets and create a powerful and efficient magnet-based motor.
Harnessing Magnetic Power: DIY Electricity with Copper Wire and Magnets
You may want to see also
Explore related products
Coil Winding: Create a tightly wound copper coil to interact with magnetic fields
The heart of any magnet-based motor lies in the precise interaction between magnetic fields and a conductive coil. This coil, typically made from copper wire, must be wound tightly and uniformly to maximize its efficiency. The process of coil winding is both an art and a science, requiring attention to detail and a methodical approach. Here’s how to master it.
Steps to Perfect Coil Winding:
- Select the Right Wire: Use enameled copper wire (magnet wire) with a gauge suitable for your motor size. For small motors, 24–30 AWG wire is common. Ensure the wire’s insulation can withstand the heat generated during operation.
- Prepare the Core: Choose a cylindrical core (e.g., a nail or PVC pipe) around which the wire will be wound. The core’s diameter determines the coil’s size and the number of turns.
- Wind Uniformly: Start winding the wire in a single, tight layer, ensuring each turn sits neatly against the previous one. Use a handheld tool or a lathe for consistency. Aim for 100–200 turns for small motors, depending on the wire gauge and core size.
- Secure the Coil: Once winding is complete, secure the ends of the wire with insulation tape or a small amount of glue. Avoid overlapping wires, as this can cause short circuits.
Cautions to Consider:
- Avoid Overheating: Friction from tight winding can generate heat, potentially damaging the wire’s insulation. Work slowly and pause if the wire becomes warm.
- Maintain Tension: Inconsistent tension can lead to uneven turns, reducing the coil’s efficiency. Use a wire tensioner if available.
- Prevent Short Circuits: Ensure the wire’s enamel coating remains intact. Nicks or scratches can cause adjacent turns to short out.
Analyzing the Impact:
A tightly wound coil amplifies the interaction between the magnetic field and the current, generating stronger forces to drive the motor. The uniformity of the winding directly affects the motor’s torque and efficiency. For example, a coil with 200 evenly wound turns using 28 AWG wire can produce a magnetic field strong enough to rotate a small rotor when paired with permanent magnets.
Practical Tips for Success:
- Practice Makes Perfect: Coil winding is a skill that improves with repetition. Start with scrap wire to refine your technique.
- Use a Jig: Create a simple jig from cardboard or wood to guide the wire and maintain consistent spacing.
- Test as You Go: After winding, check the coil’s resistance with a multimeter to ensure it falls within the expected range (e.g., 10–50 ohms for a small motor coil).
Mastering coil winding is a critical step in building a magnet-based motor. With patience and precision, you can create a coil that harnesses magnetic fields effectively, turning electrical energy into mechanical motion.
Real-Life Applications of Magnetic Accelerators: Powering Innovation Across Industries
You may want to see also
Explore related products
Commutator Setup: Install a commutator to reverse current flow and sustain rotation
A commutator is the unsung hero of a magnetic motor, ensuring continuous rotation by reversing the current flow at precisely the right moments. Without it, the motor would oscillate back and forth, never achieving sustained motion. Think of it as a traffic cop directing the flow of electricity, flipping its direction to keep the rotor spinning in one direction. This component is critical in converting the alternating magnetic fields into unidirectional mechanical energy.
To install a commutator, begin by selecting a suitable material—typically a segmented copper ring mounted on the motor shaft. Each segment must be insulated from the others to prevent short circuits. Position the commutator so that its segments align with the rotor’s windings, ensuring seamless contact with the brushes. The brushes, usually made of carbon or graphite, should maintain firm but not excessive pressure against the commutator to minimize wear while ensuring reliable electrical contact. Proper alignment is key: misalignment can lead to erratic rotation or premature failure.
One common challenge is maintaining the commutator’s cleanliness. Dust, debris, or oxidation can disrupt current flow, causing the motor to stall or overheat. Regularly inspect and clean the commutator with a soft cloth or fine sandpaper, taking care not to damage the segments. For longevity, consider using a commutator cleaner spray designed for electrical contacts. Additionally, ensure the brushes are the correct length; worn brushes reduce efficiency and increase friction, while overly long ones can cause drag.
Comparing commutator setups, segmented designs are more efficient than solid rings because they allow for precise current reversal. However, they require careful assembly to avoid gaps or overlaps between segments. For small-scale motors, a 2-segment commutator is often sufficient, while larger motors may require 3 or more segments depending on the winding configuration. Always test the setup before finalizing it: connect the motor to a low-voltage power source and observe the rotation, adjusting the commutator or brushes as needed.
In conclusion, a well-installed commutator transforms a basic magnetic setup into a functional motor. It’s a delicate balance of mechanics and electronics, but with attention to detail and regular maintenance, it ensures smooth, sustained rotation. Whether you’re building a science fair project or a DIY generator, mastering the commutator setup is a critical step toward success.
Sunfire TGA-7401 Amplifier: Magnetic Field Power Supply Explained
You may want to see also
Explore related products
Axle Assembly: Use a low-friction axle to minimize energy loss during rotation
The efficiency of a magnet-based motor hinges on minimizing energy loss, and the axle assembly plays a pivotal role in this regard. A low-friction axle is essential to ensure smooth rotation, as friction converts kinetic energy into heat, reducing the motor's overall performance. Materials like polished stainless steel, ceramic, or even graphite-coated axles can significantly decrease friction, allowing the motor to operate more efficiently. For instance, a stainless steel axle with a diameter of 3mm and a surface roughness of less than 0.8 micrometers can reduce friction by up to 40% compared to untreated materials.
Selecting the right bearings is equally critical in the axle assembly. Ball bearings, particularly those made from hardened steel or silicon nitride, offer minimal contact friction and can support axial and radial loads effectively. For smaller motors, consider using miniature ball bearings with a bore size of 2-5mm, ensuring they are properly lubricated with a lightweight oil or grease to further reduce friction. Avoid over-lubrication, as excess grease can increase drag and negate the benefits of low-friction materials.
Another practical tip is to align the axle with precision. Misalignment can introduce unnecessary resistance and wear, leading to energy loss. Use a dial indicator to ensure the axle is centered within a tolerance of 0.01mm. For DIY projects, a simple jig made from a block of aluminum with a drilled hole can help achieve this alignment. Additionally, securing the axle with lightweight retaining clips or set screws minimizes added mass, keeping the rotational inertia low.
Comparing low-friction axles to standard ones highlights their long-term benefits. While a standard brass axle might suffice for initial testing, it will wear quickly under continuous operation, increasing friction over time. In contrast, a low-friction axle maintains its performance, making it ideal for applications requiring sustained efficiency, such as model trains or small generators. Investing in quality axle components upfront can save time and energy in the long run.
Finally, consider the environmental factors affecting axle performance. Humidity and temperature fluctuations can impact friction, especially in outdoor or high-moisture environments. Coating the axle with a thin layer of PTFE (polytetrafluoroethylene) or using sealed bearings can mitigate these effects. Regular maintenance, such as cleaning and re-lubricating every 50-100 hours of operation, ensures the axle assembly continues to minimize energy loss, keeping your magnet motor running smoothly.
Exploring Appliances: Which Devices Rely on Large Magnets?
You may want to see also
Explore related products
Power Source: Connect a DC power supply to energize the coil and initiate motion
A DC power supply is the heartbeat of your magnet-based motor, providing the electrical current necessary to energize the coil and initiate motion. Unlike AC power, which alternates direction, DC power flows in a single direction, creating a consistent magnetic field that interacts with the permanent magnets to produce rotation. When selecting a DC power supply, consider the voltage and current requirements of your coil. A typical small motor might operate efficiently with a 3V to 12V supply, but always match the power source to the coil’s specifications to avoid overheating or insufficient torque.
To connect the DC power supply, start by stripping the ends of your coil’s wires and attaching them securely to the power supply terminals. Use alligator clips or soldering for a reliable connection. Ensure the polarity is correct: connect the positive terminal of the power supply to one end of the coil and the negative terminal to the other. Reversing the polarity will reverse the motor’s direction, so test both configurations if needed. For safety, incorporate a switch into the circuit to control power flow, preventing accidental activation and allowing you to stop the motor easily.
The efficiency of your motor depends heavily on the quality of the power supply. A regulated DC power supply is ideal, as it maintains a steady voltage output even under varying load conditions. Unregulated supplies may fluctuate, causing inconsistent motor performance. If using a battery as your power source, monitor its voltage level; as the battery drains, the motor’s speed and torque will decrease. Rechargeable batteries like lithium-ion or nickel-metal hydride (NiMH) are practical choices for prolonged use, but always follow manufacturer guidelines for charging and handling.
Practical tips can enhance your motor’s performance. For instance, adding a diode (such as a Schottky diode) across the coil terminals can protect the circuit from voltage spikes caused by the collapsing magnetic field when power is switched off. Additionally, if your motor struggles to start under load, consider using a higher-capacity power supply or reducing the mechanical resistance in your design. Experimenting with different power sources and observing their effects on motor behavior can deepen your understanding of the relationship between electrical input and mechanical output.
In conclusion, the DC power supply is not just a component but a critical determinant of your motor’s functionality. By carefully selecting, connecting, and optimizing your power source, you can ensure smooth, efficient operation. Whether for educational purposes or practical applications, mastering this aspect of motor construction empowers you to harness the principles of electromagnetism effectively.
Do Servo Motors Use Magnets? Unveiling Their Inner Workings
You may want to see also
Frequently asked questions
You will need a battery, insulated copper wire, a magnet (permanent or electromagnet), a paper clip or lightweight shaft, and a base to hold the components in place.
A magnet-based motor works on the principle of electromagnetic induction. When current flows through the wire, it creates a magnetic field that interacts with the permanent magnet, causing the wire to experience a force (Lorentz force) and rotate.
Yes, you can use either a permanent magnet (like a neodymium magnet) or an electromagnet. Permanent magnets are simpler to use, while electromagnets allow for more control over the magnetic field.
Common issues include insufficient current, poor wire coiling, incorrect magnet placement, or friction in the shaft. Ensure the wire is tightly coiled, the magnet is close enough to interact with the coil, and the shaft moves freely.
