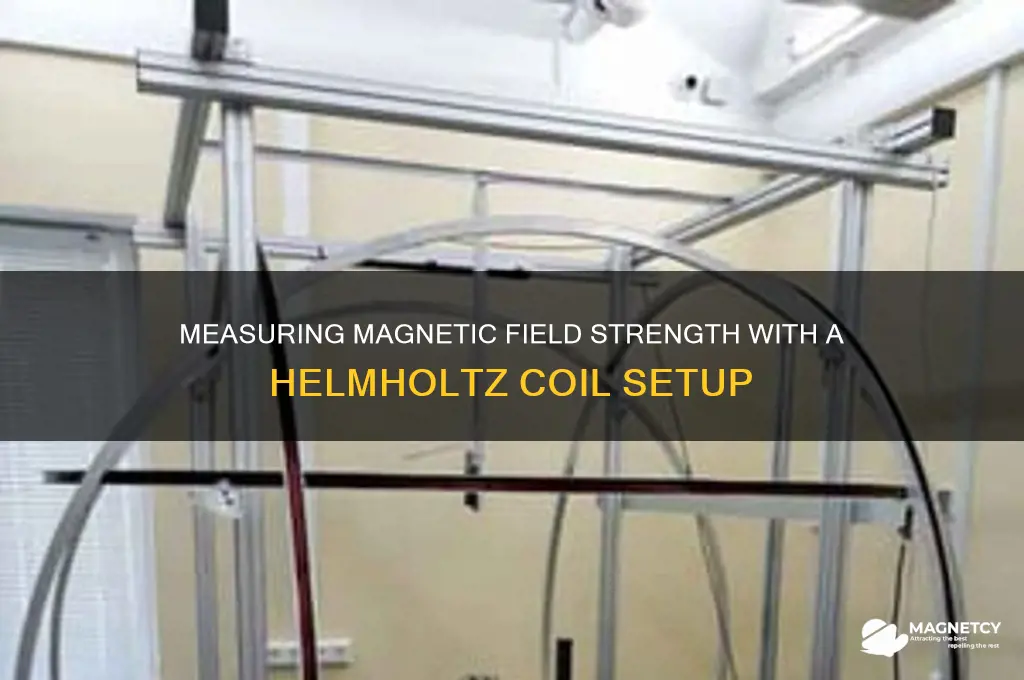

Measuring magnetic field strength using a Helmholtz coil is a precise and widely used technique in physics and engineering. A Helmholtz coil consists of two identical circular coils placed parallel to each other with a separation equal to their radius, creating a highly uniform magnetic field between them when an electric current flows through the coils. By applying a known current to the coils, the magnetic field strength at the center of the setup can be calculated using the Biot-Savart law or simplified formulas derived from it. To measure the field strength, a Hall effect probe or magnetometer is typically placed at the center of the coils, providing a direct reading of the magnetic field. This method is particularly useful for calibrating magnetic sensors, studying magnetic materials, or verifying theoretical models, as it allows for accurate and controlled generation and measurement of magnetic fields.
| Characteristics | Values |
|---|---|
| Coil Configuration | Two identical circular coils placed parallel to each other |
| Coil Separation | Equal to the radius of the coils (d = R) |
| Number of Turns per Coil | Typically 100-200 turns (depends on wire gauge and desired field strength) |
| Current (I) | Measured in Amperes (A); depends on application and coil design |
| Radius of Coils (R) | Measured in meters (m); determines field uniformity and strength |
| Magnetic Field Formula (at coil center) | ( B = \left( \frac{4}{5} \right)^{3/2} \frac{\mu_0 \cdot N \cdot I} ) |
| Permeability of Free Space ((\mu_0)) | ( 4\pi \times 10^{-7} , \text{T·m/A} ) |
| Field Uniformity Region | Within ±6% of the coil center along the axis (for d = R) |
| Measurement Tools | Hall effect probe, magnetometer, or search coil |
| Calibration Requirement | Coils must be calibrated for accurate field strength measurement |
| Applications | Magnetic field calibration, material testing, and research |
| Power Supply | Stable DC or low-frequency AC source |
| Wire Type | Insulated copper wire (e.g., AWG 24-30) |
| Field Strength Range | Typically 0.1 mT to 100 mT (depends on current and coil design) |
| Temperature Stability | Coils should be operated within a stable temperature range (±1°C) |
| Safety Considerations | Avoid high currents to prevent overheating and wire damage |
Explore related products
What You'll Learn
- Coil Design: Optimal radius, number of turns, wire gauge for uniform field generation
- Current Measurement: Accurate current supply and measurement techniques for precise field control
- Field Calculation: Using Biot-Savart law or formulae to compute field strength at coil center
- Calibration: Calibrating the coil setup with known magnetic field sources for accuracy
- Data Analysis: Methods to analyze collected data and determine magnetic field strength values
Coil Design: Optimal radius, number of turns, wire gauge for uniform field generation
The magnetic field uniformity of a Helmholtz coil hinges on precise coil design. A critical parameter is the radius (R) of each coil, which should equal the distance between their centers. This configuration ensures symmetry, a prerequisite for a uniform field along the coil axis. Deviations from this ratio disrupt symmetry, introducing field inhomogeneities. For example, a 10% increase in coil separation relative to radius can reduce field uniformity by over 20% within a 2 cm diameter region.
Mathematically, the optimal radius-to-separation ratio is 1:1, derived from the Biot-Savart law and symmetry considerations.
The number of turns (N) in each coil directly influences field strength. Doubling the turns doubles the field, but practical limitations arise. Increasing turns beyond a certain point yields diminishing returns due to wire insulation thickness and coil diameter constraints. A common rule of thumb is to aim for 100-200 turns per coil, balancing field strength and manufacturability. For instance, a 10 cm radius coil with 150 turns and a 1 amp current generates a central field of approximately 1.2 mT, suitable for many calibration and sensor testing applications.
Caution: Excessive turns can lead to wire overheating and insulation breakdown, particularly with high currents.
Wire gauge selection is crucial for both field uniformity and power considerations. Thicker wire (lower gauge number) reduces resistance, minimizing power dissipation and temperature-induced field variations. However, thicker wire increases coil diameter, potentially compromising uniformity. A practical compromise is to use wire with a gauge that allows for sufficient current without exceeding the coil's diameter constraints. For example, 22-24 AWG wire is often suitable for coils with radii between 5-20 cm, providing a balance between current handling and coil compactness.
Takeaway: Optimal coil design involves a delicate interplay between radius, turns, and wire gauge. A 1:1 radius-to-separation ratio, 100-200 turns per coil, and appropriately sized wire gauge (e.g., 22-24 AWG) provide a solid starting point for achieving a uniform magnetic field within a Helmholtz coil.
Magnetic Marvels: How Bats Navigate Using Earth's Invisible Forces
You may want to see also
Explore related products
Current Measurement: Accurate current supply and measurement techniques for precise field control
Precise magnetic field measurement using a Helmholtz coil hinges on the accuracy of the current supplied to the coil. Even minor deviations in current can lead to significant errors in field strength calculations. For instance, a 1% error in current measurement translates to a 1% error in the calculated magnetic field, potentially compromising the validity of experiments in areas like material characterization, calibration, or fundamental physics research.
High-precision current sources are therefore essential. Laboratory-grade power supplies with accuracy specifications of 0.05% or better are recommended. These supplies often incorporate digital control and feedback mechanisms to maintain stable current output even under varying load conditions.
Direct current measurement within the coil itself is crucial for closed-loop control. Hall effect current sensors offer a non-invasive solution, clamping around the conductor without disrupting the circuit. These sensors provide high accuracy (typically 0.1-0.5%) and wide measurement ranges, making them suitable for Helmholtz coil applications. For even greater precision, consider using a low-resistance shunt resistor in series with the coil and measuring the voltage drop across it with a high-resolution digital multimeter. This method, while slightly more intrusive, can achieve accuracies of 0.01% or better.
Calibration is paramount. Both the current source and measurement device should be calibrated against a traceable standard to ensure their readings are accurate and reliable. Regular calibration intervals, typically annually or after significant usage, are essential to maintain measurement integrity.
Beyond hardware selection, careful attention to wiring and connections is vital. Use high-quality, low-resistance cables to minimize power losses and voltage drops. Secure connections with appropriate terminals or soldering to prevent contact resistance, which can introduce errors. Finally, consider the environmental conditions. Temperature fluctuations can affect both the coil's resistance and the performance of measurement devices. If operating in a temperature-controlled environment is not feasible, compensate for temperature effects through calibration or mathematical correction factors.
Electromagnets in Magnetic Locks: Functionality and Applications Explained
You may want to see also
Explore related products
Field Calculation: Using Biot-Savart law or formulae to compute field strength at coil center
The magnetic field at the center of a Helmholtz coil can be precisely calculated using the Biot-Savart law, a fundamental principle in electromagnetism. This law describes the magnetic field generated by a steady current distribution and is particularly useful for symmetrical setups like Helmholtz coils. By integrating the contributions from infinitesimal current elements along the coil, the Biot-Savart law allows for an exact computation of the field strength at the coil’s center. This approach is essential for applications requiring high accuracy, such as calibrating magnetometers or studying magnetic materials.
To apply the Biot-Savart law to a Helmholtz coil, start by modeling the coil as a circular loop of radius *R* carrying a current *I*. The coils are separated by a distance equal to their radius, ensuring uniformity of the magnetic field at the center. The Biot-Savart law states that the magnetic field *dB* due to a small current element *dl* is given by *dB = (μ₀/4π) * (I * dl × r̂) / r²*, where *μ₀* is the permeability of free space, *r* is the distance from the current element to the point of interest, and *r̂* is the unit vector in the direction of *r*. For a Helmholtz coil, symmetry simplifies the integration, as the contributions from both coils add constructively at the center.
The calculation involves integrating along the circumference of each coil and summing the results. However, for practical purposes, a simplified formula derived from the Biot-Savart law is often used: *B = (4/5)^(3/2) * (μ₀ * N * I) / R*, where *N* is the number of turns in each coil. This formula assumes ideal conditions, such as negligible coil thickness and perfect alignment. For non-ideal cases, numerical methods or finite element analysis may be necessary to account for edge effects or misalignment.
One practical tip is to verify the coil’s geometry before performing calculations. Ensure the separation between the coils is exactly equal to their radius, as deviations can significantly alter the field uniformity. Additionally, use high-precision current sources to maintain a stable current *I*, as fluctuations directly impact the computed field strength. For educational or experimental setups, software tools like MATLAB or Python can automate the integration process, reducing the risk of calculation errors.
In conclusion, the Biot-Savart law provides a robust framework for calculating the magnetic field at the center of a Helmholtz coil. While the derived formula offers a quick solution, understanding the underlying integration ensures accuracy in real-world applications. By combining theoretical principles with practical considerations, researchers and engineers can reliably measure and predict magnetic field strengths for a variety of purposes.
Did Egnet Utilize Magnetic Stripes to Validate His Theory?
You may want to see also
Explore related products
Calibration: Calibrating the coil setup with known magnetic field sources for accuracy
Calibration is the linchpin of precision in magnetic field measurements using a Helmholtz coil. Without it, even the most meticulously constructed setup remains a source of uncertainty. The process involves exposing the coil to known magnetic fields, comparing the measured values to the expected ones, and adjusting the system's response accordingly. This ensures that the coil accurately translates the magnetic field it encounters into a measurable electrical signal.
Imagine a scale that consistently reads 5 grams too heavy. Calibration is like placing a known 100-gram weight on that scale and adjusting its settings until it displays the correct value. Similarly, by exposing the Helmholtz coil to a series of known magnetic field strengths, we can identify and correct for any inherent biases or nonlinearities in its response.
The calibration process typically involves a calibrated magnet or a coil with a precisely known current. For instance, a solenoid coil with a known number of turns and a well-defined current can generate a magnetic field of predictable strength. By placing this calibration coil at the center of the Helmholtz coil and measuring the induced voltage, we can compare the measured field strength to the theoretical value. Any discrepancy indicates a need for adjustment in the system's gain or offset.
Reputable calibration standards often recommend using multiple calibration points across the expected range of magnetic field strengths. This helps identify and correct for any nonlinearities in the coil's response, ensuring accurate measurements across the entire operating range.
It's crucial to consider environmental factors during calibration. Temperature variations can affect the coil's resistance and the magnetization of any ferromagnetic materials nearby. Therefore, calibration should be performed at the same temperature at which the actual measurements will be taken. Additionally, shielding the setup from external magnetic fields is essential to prevent interference during calibration.
Regular recalibration is essential to maintain accuracy over time. Factors like mechanical stress, aging of components, and environmental changes can all contribute to drift in the coil's response. A well-documented calibration procedure, including the specific calibration sources and environmental conditions used, is vital for ensuring traceability and reproducibility of measurements. By diligently calibrating the Helmholtz coil setup, researchers and engineers can confidently rely on its measurements, knowing they accurately reflect the true magnetic field strength.
Harnessing Earth's Magnetic Field: Innovative Propulsion Technologies for Future Travel
You may want to see also
Explore related products
Data Analysis: Methods to analyze collected data and determine magnetic field strength values
The raw data collected from a Helmholtz coil setup—voltage readings, current measurements, and sensor outputs—is just the starting point. Transforming this into meaningful magnetic field strength values requires careful analysis. The first step is to calibrate your system. This involves measuring the coil's physical dimensions (radius and separation) and verifying the current passing through it. A precise current measurement is critical, as the magnetic field strength is directly proportional to the current. Use a high-accuracy ammeter and ensure the current is stable before taking readings.
Calibration Example: For a coil with a radius of 10 cm and a separation of 5 cm, a current of 1 Ampere should theoretically produce a magnetic field of approximately 55.6 µT at the center. Compare your measured value to this theoretical prediction to assess calibration accuracy.
Once calibrated, the core analysis technique involves fitting your data to the theoretical model of a Helmholtz coil. The magnetic field at the center of the coil is given by the formula: B = (µ₀ * N * I) / (2 * sqrt(5) * R), where B is the magnetic field strength, µ₀ is the permeability of free space (4π × 10⁻⁷ T·m/A), N is the number of turns in each coil, I is the current, and R is the coil radius. Plot your measured field strength values against the predicted values from this formula. A linear regression analysis will reveal any systematic deviations, allowing you to refine your model or identify sources of error.
Practical Tip: Use software like Python with libraries such as NumPy and SciPy for data fitting. These tools can handle the mathematical complexities and provide statistical measures of fit quality, ensuring your analysis is both accurate and efficient.
Noise reduction is another critical aspect of data analysis. Magnetic field measurements are susceptible to environmental interference, such as power line hum or nearby electronic devices. Apply digital filtering techniques, such as a moving average or Fourier transform, to isolate the signal from the noise. For example, a low-pass filter with a cutoff frequency below 50 Hz can effectively remove 60 Hz power line noise. Caution: Over-filtering can distort your data, so strike a balance between noise reduction and signal preservation.
Finally, validate your results through comparison with established standards or independent measurements. If possible, use a commercial magnetometer to measure the field at the same location as your Helmholtz coil. Discrepancies between the two methods can highlight areas for improvement in your setup or analysis. Takeaway: Combining theoretical modeling, statistical analysis, and practical validation ensures that your magnetic field strength measurements are both precise and reliable.
Magnetic Strips: A Popular Choice for Knife Storage?
You may want to see also
Frequently asked questions
A Helmholtz coil is a pair of identical circular coils placed parallel to each other, separated by a distance equal to their radius, with the same current flowing through them in the same direction. When a current passes through the coils, it generates a uniform magnetic field between them. By measuring the current and knowing the coil geometry, the magnetic field strength can be calculated using the formula: \( B = \left( \frac{4}{5} \right)^{3/2} \frac{\mu_0 N I}{R} \), where \( \mu_0 \) is the permeability of free space, \( N \) is the number of turns, \( I \) is the current, and \( R \) is the coil radius.
To ensure uniformity, the separation between the coils must be precisely equal to their radius, and the coils should be perfectly aligned and centered. Additionally, the current flowing through both coils must be identical and in the same direction. Any deviation from these conditions will reduce the uniformity of the magnetic field.
You will need a power supply to drive the current through the coils, an ammeter to measure the current accurately, and optionally a gaussmeter or Hall effect probe to directly measure the magnetic field strength. If a direct measurement tool is not available, the field strength can be calculated using the coil parameters and the measured current.
