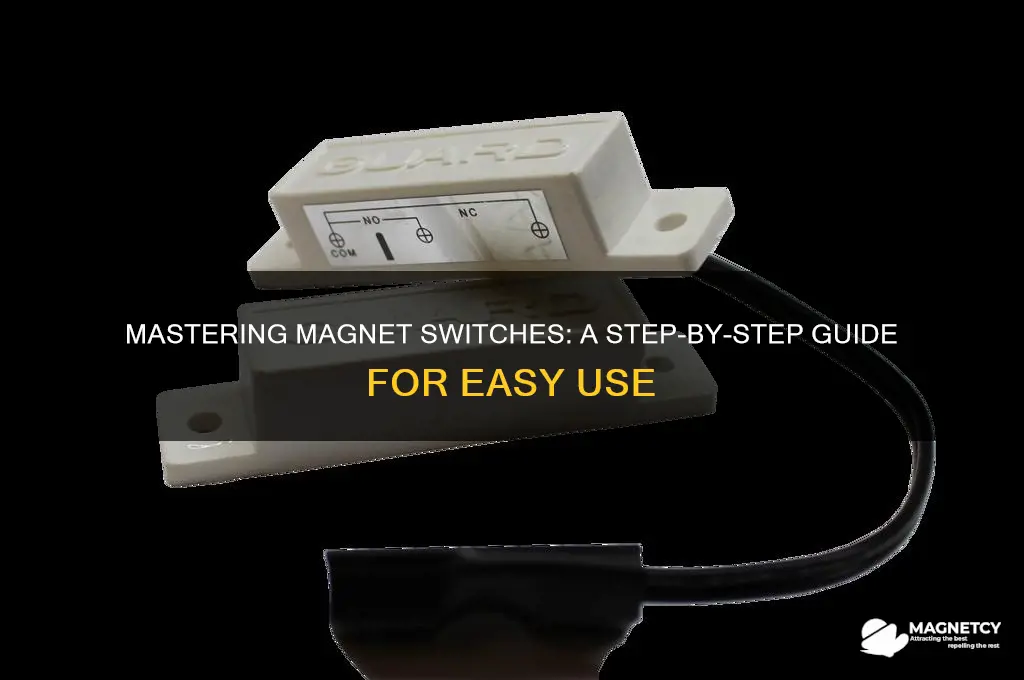

A magnet switch, also known as a reed switch, is a simple yet versatile device that operates using the principles of magnetism to control an electrical circuit. It consists of two thin, flexible metal reeds enclosed in a glass tube, which are normally open but close when a magnetic field is applied, completing the circuit. To use a magnet switch, first ensure the device is properly connected to the circuit you wish to control. Position a magnet near the switch, typically within a few millimeters, to activate it by bringing the reeds together. Removing the magnet will open the circuit again, deactivating the switch. Magnet switches are commonly used in applications like door and window sensors, security systems, and electronic devices due to their reliability, compact size, and ease of use. Understanding how to effectively use a magnet switch allows for precise control of electrical functions in various settings.
| Characteristics | Values |
|---|---|
| Operating Principle | Utilizes a magnet to open or close an electrical circuit when a magnetic field is applied or removed. |
| Types | Reed Switch, Hall Effect Sensor, Magnetic Proximity Switch |
| Activation Method | Proximity of a magnet to the switch |
| Power Requirements | Typically low power (varies by type) |
| Switching Mechanism | Mechanical (Reed Switch) or Solid-State (Hall Effect) |
| Response Time | Fast (milliseconds for Reed Switch, microseconds for Hall Effect) |
| Durability | High (no moving parts in Hall Effect, limited mechanical wear in Reed Switch) |
| Applications | Security systems, door/window sensors, automotive, industrial automation, consumer electronics |
| Sensitivity | Adjustable based on magnet strength and distance |
| Environmental Resistance | Varies; Reed Switches are sensitive to vibration, Hall Effect is more robust |
| Size | Compact, suitable for small devices |
| Cost | Low to moderate, depending on type and features |
| Installation | Simple, requires proper alignment with magnet |
| Polarity Dependence | Some switches are polarity-sensitive (e.g., Hall Effect with bipolar detection) |
| Lifespan | Long (Reed Switch: 107-1010 cycles, Hall Effect: virtually unlimited) |
Explore related products
What You'll Learn
- Understanding Magnet Switch Basics: Learn how magnet switches work and their core components
- Wiring a Magnet Switch: Step-by-step guide to connecting wires for proper functionality
- Mounting Techniques: Best practices for securely installing magnet switches in various setups
- Testing Magnet Switches: Methods to verify the switch operates correctly before use
- Troubleshooting Common Issues: Quick fixes for malfunctions like loose connections or weak magnetic fields
Understanding Magnet Switch Basics: Learn how magnet switches work and their core components
Magnet switches, also known as reed switches, operate on a simple yet ingenious principle: the interaction between a magnet and two ferromagnetic blades encased in a glass tube. When a magnet approaches the switch, the magnetic field causes the blades to attract each other, completing an electrical circuit. Conversely, removing the magnet allows the blades to separate, breaking the circuit. This mechanism makes magnet switches ideal for applications requiring non-contact control, such as security systems, door sensors, and automatic lighting. Understanding this basic operation is the first step to leveraging their functionality effectively.
To use a magnet switch, you must first identify its core components: the reed switch itself, the magnet, and the circuit it controls. The reed switch is typically small, measuring around 10–15 mm in length, and is rated for specific voltage and current levels (e.g., 12V DC, 1A). The magnet, often a neodymium type for its strong magnetic field, should be positioned within 10–20 mm of the switch for reliable operation. When selecting components, ensure compatibility between the switch’s ratings and the circuit’s requirements to avoid damage. For instance, using a switch rated for 5V in a 12V circuit will likely cause failure.
One practical example of magnet switch usage is in a DIY home security system. Install the reed switch on a door or window frame and the magnet on the moving part. When the door or window opens, the magnet moves away, breaking the circuit and triggering an alarm. To enhance reliability, mount the switch and magnet with a slight gap (1–2 mm) when closed, ensuring consistent operation. Additionally, use a debounce circuit or software filter to eliminate false triggers caused by vibrations or rapid movements.
While magnet switches are versatile, they have limitations. They are sensitive to environmental factors like temperature and physical stress. For outdoor applications, choose switches with weatherproof enclosures and magnets with protective coatings. Avoid placing them near strong electromagnetic interference, such as motors or transformers, as this can disrupt their operation. Regularly test the switch’s functionality, especially in critical systems, to ensure it remains responsive.
In conclusion, mastering magnet switch basics involves understanding their operation, selecting compatible components, and applying them thoughtfully. By focusing on these core principles, you can harness their potential for a wide range of projects, from simple automation to complex security systems. Whether you’re a hobbyist or a professional, the key to success lies in precision, compatibility, and awareness of environmental factors.
Using a Floater with Trout Magnet: Tips and Techniques
You may want to see also
Explore related products
Wiring a Magnet Switch: Step-by-step guide to connecting wires for proper functionality
Magnet switches, also known as reed switches, are elegant solutions for non-contact control in various applications, from security systems to automotive devices. Their functionality hinges on the precise wiring of their contacts to ensure reliable operation. Here’s a step-by-step guide to wiring a magnet switch for optimal performance.
Step 1: Identify the Switch Contacts
Begin by locating the two primary contacts on the magnet switch: the normally open (NO) and normally closed (NC) terminals. The NO terminal remains open until the magnetic field activates the switch, while the NC terminal is closed until activation. Understanding these terminals is crucial for connecting the switch to your circuit correctly. Use a multimeter to verify the continuity of each terminal in its default state to avoid wiring errors.
Step 2: Prepare the Wires
Select wires with appropriate gauge and insulation for your application. For low-voltage systems (e.g., 12V DC), 20-22 AWG stranded wires are commonly used. Strip approximately ¼ inch of insulation from the wire ends using a wire stripper. Tin the exposed wires with a small amount of solder to prevent fraying and ensure a secure connection. This step enhances conductivity and simplifies the wiring process.
Step 3: Connect the Wires to the Switch
Attach the wires to the switch terminals using a soldering iron or screw terminals, depending on the switch design. For soldered connections, apply heat to the terminal and wire simultaneously, then add solder until a smooth joint forms. Allow the solder to cool before testing. If using screw terminals, insert the stripped wire into the terminal block and tighten the screw securely. Double-check that no wires are crossing or touching unintentionally, as this can cause short circuits.
Step 4: Integrate into the Circuit
Connect the other ends of the wires to your circuit, ensuring polarity is correct. For example, if powering a LED, the positive wire from the power source should connect to the NO terminal, and the LED’s negative lead should complete the circuit. Test the setup by bringing a magnet near the switch to activate it. Observe the circuit’s response to confirm proper functionality.
Cautions and Practical Tips
Avoid placing the magnet switch near strong electromagnetic fields or high-temperature sources, as these can interfere with its operation. When working with high-voltage systems, always disconnect power before wiring to prevent electrical hazards. Label wires during installation to streamline troubleshooting later. For outdoor applications, use weatherproof enclosures to protect the switch and connections from environmental damage.
By following these steps and precautions, you can ensure your magnet switch operates reliably, providing seamless control in your desired application. Proper wiring not only enhances performance but also extends the lifespan of the switch, making it a worthwhile investment of time and effort.
Magnet Fishing 101: Tips and Tricks for Treasure Hunting in Water
You may want to see also
Explore related products
Mounting Techniques: Best practices for securely installing magnet switches in various setups
Magnet switches, also known as reed switches, rely on precise alignment and secure mounting to function effectively. The first step in any installation is selecting the right mounting surface. For optimal performance, choose a flat, clean, and stable material. Metal surfaces are ideal because they provide a sturdy base, but ensure the metal doesn’t interfere with the magnetic field. Non-metallic surfaces like wood or plastic are also viable, provided they are rigid enough to prevent movement. Avoid flexible materials such as fabric or rubber, as they can cause misalignment and reduce the switch’s reliability.
Once the surface is selected, focus on alignment. The magnet and reed switch must be positioned within the manufacturer’s specified operating range, typically 0.25 to 1 inch. Use a ruler or caliper to measure the distance accurately. For dynamic setups, such as doors or drawers, consider using adjustable mounts or brackets to maintain alignment during movement. Adhesive-backed mounts are convenient for static applications, but for high-vibration environments, mechanical fasteners like screws or zip ties provide superior stability. Always test the alignment with a multimeter before finalizing the installation.
In outdoor or harsh environments, weatherproofing is critical. Encase the magnet switch in a waterproof housing or apply a silicone sealant to protect against moisture and debris. For temperature-sensitive applications, ensure the materials used can withstand the expected range—most reed switches operate between -40°C and +125°C, but check the datasheet for specifics. UV-resistant coatings can prevent degradation from sunlight, extending the switch’s lifespan in outdoor setups.
Finally, consider the long-term maintenance of the installation. Accessible mounting locations simplify troubleshooting and replacement. Label the switch and magnet with their function or circuit designation to avoid confusion during maintenance. Periodically inspect the setup for signs of wear, such as loose connections or shifting components, and re-secure as needed. By combining careful surface selection, precise alignment, environmental protection, and thoughtful maintenance, you can ensure your magnet switch operates reliably in any setup.
How Magnets Power Electric Motors: Essential Components Explained
You may want to see also
Explore related products
Testing Magnet Switches: Methods to verify the switch operates correctly before use
Magnet switches, also known as reed switches, rely on the presence or absence of a magnetic field to open or close an electrical circuit. Before integrating these switches into your project, verifying their functionality is crucial to ensure reliability. Testing methods range from simple visual inspections to more complex electrical measurements, each serving a specific purpose in confirming the switch’s operability.
Visual and Mechanical Inspection: Begin by examining the switch for physical damage, such as cracks or deformities, which could impair its function. Next, manually actuate the switch using a magnet. Observe whether the switch responds as expected—closing when the magnet is near and opening when it’s removed. This basic test confirms mechanical integrity and sensitivity to magnetic fields. For reed switches, ensure the internal metal reeds are intact and not stuck together, as this would prevent proper operation.
Electrical Continuity Testing: Use a multimeter to verify the switch’s electrical continuity. Set the multimeter to the continuity or resistance mode and place the probes across the switch terminals. Without a magnet, the multimeter should read infinite resistance (open circuit). When a magnet is brought close, the resistance should drop to near zero (closed circuit). This test confirms the switch’s ability to complete a circuit under magnetic influence. For precise applications, measure the exact resistance values to ensure they fall within the manufacturer’s specifications.
Load Testing: To simulate real-world conditions, connect the switch to the intended load (e.g., a light bulb, relay, or sensor) and repeat the magnet actuation. Observe whether the load activates and deactivates as expected. This step ensures the switch can handle the electrical current and voltage requirements of the application. For high-power applications, use a current-limited power supply during testing to prevent damage to the switch or load.
Response Time and Hysteresis Testing: Advanced testing involves measuring the switch’s response time and hysteresis. Use an oscilloscope to monitor the switch’s output while moving the magnet at controlled speeds. The response time is the delay between magnet approach and circuit closure, while hysteresis is the difference in magnet position between switch activation and deactivation. These parameters are critical in applications requiring precise timing or positional accuracy, such as security systems or automation.
Environmental Stress Testing: Subject the switch to conditions it may encounter during use, such as temperature extremes, humidity, or vibration. For example, place the switch in a temperature chamber and cycle between -20°C and 80°C while testing its operation. This ensures the switch remains functional under stress, which is particularly important for outdoor or industrial applications. Document any changes in performance to assess long-term reliability.
By systematically applying these testing methods, you can confidently verify that a magnet switch operates correctly before integrating it into your project. Each test addresses a specific aspect of functionality, from basic mechanical integrity to advanced performance metrics, ensuring the switch meets the demands of its intended application.
Hijaby Fashion Innovation: Exploring the Use of Magnetic Pins
You may want to see also
Explore related products
Troubleshooting Common Issues: Quick fixes for malfunctions like loose connections or weak magnetic fields
Magnet switches, also known as reed switches, are simple yet effective devices that rely on the interaction between a magnet and a pair of ferrous metal contacts to open or close an electrical circuit. Despite their reliability, they can encounter issues like loose connections or weakened magnetic fields, which disrupt functionality. Identifying the root cause is the first step toward resolving these problems efficiently.
Loose Connections: A Common Culprit
One of the most frequent issues with magnet switches is loose wiring or poor contact between the switch and its terminals. Over time, vibrations, temperature fluctuations, or physical stress can cause wires to detach or connections to degrade. To address this, inspect the wiring for visible damage or disconnection. Use a multimeter to test continuity between the switch terminals and the connected circuit. If the connection is faulty, reattach the wires securely, ensuring they are stripped to the appropriate length (typically 3–5 mm) and tightened with the correct torque (usually 0.5–1 Nm for small terminals). For added stability, apply a small amount of electrical tape or heat shrink tubing to prevent future loosening.
Weak Magnetic Fields: Diagnosing and Enhancing Strength
A weakened magnetic field can render a magnet switch ineffective, often due to demagnetization, improper placement, or the use of a low-strength magnet. Start by testing the magnet’s strength using a gauss meter; a typical reed switch requires a magnetic field of 30–50 gauss to activate. If the magnet is weak, replace it with a neodymium magnet, known for its high magnetic strength and compact size. Ensure the magnet is positioned within the optimal range (usually 0–20 mm from the switch) and aligned correctly with the reed contacts. For applications requiring greater distance, consider using a larger magnet or a magnetic concentrator to amplify the field.
Environmental Factors: Hidden Saboteurs
External conditions can also impair magnet switch performance. High temperatures, for instance, can demagnetize permanent magnets or cause thermal expansion, leading to misalignment. If the switch is exposed to temperatures above 120°C, switch to a heat-resistant magnet or relocate the device to a cooler area. Similarly, dust, moisture, or corrosive substances can interfere with the reed contacts. Clean the switch with compressed air or isopropyl alcohol, and apply a protective coating like conformal spray to prevent future contamination. For outdoor or harsh environments, opt for a sealed or encapsulated switch rated for IP67 or higher.
Testing and Verification: The Final Step
After implementing fixes, test the magnet switch thoroughly to ensure it operates as intended. Use a multimeter to check for proper circuit opening and closing when the magnet is brought near or removed. Simulate real-world conditions by testing under expected environmental stresses, such as vibration or temperature changes. If issues persist, consult the manufacturer’s specifications or seek professional assistance. By systematically addressing loose connections, weak magnetic fields, and environmental factors, you can restore the functionality of your magnet switch and extend its lifespan.
Powering Magnets: A Simple Guide to Battery-Charged Magnetization
You may want to see also
Frequently asked questions
A magnet switch, also known as a reed switch, is a device that consists of two thin metal contacts enclosed in a glass tube. When a magnet is brought near the switch, the magnetic field causes the contacts to close, completing an electrical circuit. When the magnet is removed, the contacts open, breaking the circuit.
To install a magnet switch, first determine the location where the switch and magnet will interact. Mount the reed switch in a fixed position, ensuring the contacts are aligned properly. Then, place the magnet on a moving part or in a position where it will activate the switch when moved close enough. Connect the switch to your circuit, ensuring the contacts are wired to the appropriate components.
Yes, magnet switches can be used in outdoor or harsh environments, but it’s important to choose a model designed for such conditions. Look for switches with weatherproof or rugged enclosures, and ensure the magnet is also suitable for the environment. Additionally, consider factors like temperature range, moisture resistance, and durability when selecting components.
