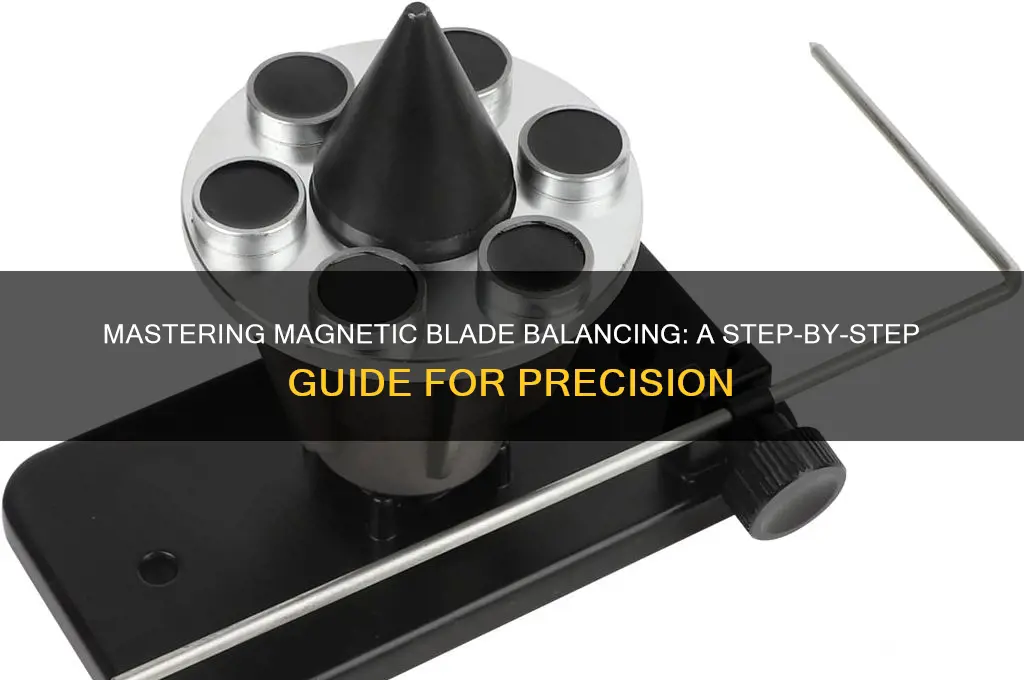

A magnetic blade balancer is an essential tool for ensuring the precision and safety of rotating machinery, particularly in applications like fans, turbines, and propellers. This device utilizes magnetic forces to accurately measure and correct imbalances in blades, which can lead to vibrations, reduced efficiency, and potential damage if left unaddressed. By securely attaching the balancer to the rotating component and analyzing the magnetic field fluctuations, users can identify the exact location and magnitude of imbalances. Corrective measures, such as adding or removing weight, are then applied to restore equilibrium. Proper use of a magnetic blade balancer not only enhances performance but also extends the lifespan of the equipment, making it a valuable asset for maintenance professionals and engineers.
| Characteristics | Values |
|---|---|
| Purpose | To balance lawnmower blades for smooth, vibration-free operation |
| Required Tools | Magnetic blade balancer, wrench or socket set, work gloves, safety goggles |
| Blade Removal | 1. Disconnect spark plug for safety 2. Tilt mower on its side (air filter side up) 3. Remove blade retaining bolt with wrench/socket 4. Carefully lift blade off |
| Balancing Process | 1. Clean blade thoroughly 2. Attach magnetic balancer to blade (follow manufacturer's placement instructions) 3. Suspend blade horizontally (use a nail or balancer stand) 4. Observe balance point - blade should remain level 5. If unbalanced, identify heavy side 6. Remove material from heavy side (grind or file) until balanced |
| Reinstallation | 1. Align blade on spindle 2. Secure with retaining bolt (torque to manufacturer's specs) 3. Reconnect spark plug 4. Test mower for smooth operation |
| Safety Precautions | Wear gloves and safety goggles Ensure mower is stable during blade removal/installation Never balance blades while mower is running |
| Maintenance Frequency | Balance blades annually or after hitting hard objects |
| Benefits | Reduces vibration, extends mower life, improves cutting performance |
| Common Issues | Blade still unbalanced (check for warping or improper material removal), excessive material removal (weakens blade) |
| Alternative Methods | Non-magnetic balancers, professional balancing services |
Explore related products
![[Update] Lawn Mower Blade Balancer, High Precision with Magnetic for Adjustable Blade Holder, Wall Mounted Blade Balancing Tool, Black](https://m.media-amazon.com/images/I/712cPJnUwQL._AC_UL320_.jpg)
What You'll Learn
- Understanding Magnetic Principles: Basics of magnetic force and its application in blade balancing
- Setting Up the Balancer: Proper assembly and placement of the magnetic balancer tool
- Attaching Blades Securely: Techniques to safely mount blades onto the balancer for accuracy
- Reading Balance Indicators: Interpreting balancer readings to identify and correct imbalances
- Adjusting Blade Weight: Methods to add or remove weight for optimal balance
Understanding Magnetic Principles: Basics of magnetic force and its application in blade balancing
Magnetic forces are the invisible architects behind the precision of blade balancing, a process critical for the efficiency and safety of rotating machinery. At its core, magnetism is a fundamental force governed by the interaction of magnetic fields, which can attract or repel objects based on their polarity. In blade balancing, this principle is harnessed to counteract weight disparities in rotating components, ensuring smooth operation and minimizing vibration. Understanding the basics of magnetic force—how it acts at a distance and varies with the strength of the magnet and the distance between objects—is essential for effectively using a magnetic blade balancer.
To apply magnetic principles in blade balancing, consider the process as a delicate dance of forces. A magnetic blade balancer typically uses adjustable magnets to add or counteract weight on the blade’s perimeter. For instance, if a blade is heavier on one side, a magnet is placed on the opposite side to create an equalizing force. The key lies in precision: the strength of the magnet and its exact placement must be calculated to achieve perfect balance. Practical tips include starting with weaker magnets and gradually increasing strength, as well as using a digital scale to measure imbalances before and after adjustments.
Analyzing the role of magnetic force in this context reveals its dual nature: both corrective and preventive. By leveraging magnetic attraction or repulsion, the balancer not only addresses existing imbalances but also prevents future issues by ensuring uniform weight distribution. This is particularly crucial in high-speed applications, such as turbine blades or propeller systems, where even minor imbalances can lead to catastrophic failure. The takeaway is clear: magnetic force is not just a tool but a science, requiring careful measurement and application to achieve optimal results.
Comparatively, magnetic blade balancing offers advantages over traditional methods, such as adding weights or removing material. Unlike physical alterations, magnets provide a non-invasive, reversible solution that preserves the integrity of the blade. However, caution is necessary. Over-magnetization can lead to unintended stress on the blade, while improper placement may exacerbate imbalances. Always follow manufacturer guidelines, such as using magnets rated for the specific material and speed of the blade, and avoid exceeding recommended magnetic field strengths.
In conclusion, mastering magnetic principles is the cornerstone of effective blade balancing. By understanding how magnetic forces interact with rotating components, operators can achieve precision and reliability in their work. Whether for industrial machinery or hobbyist projects, the application of magnetism in blade balancing exemplifies the practical fusion of physics and engineering. With careful attention to detail and adherence to best practices, magnetic blade balancers become indispensable tools for maintaining the performance and longevity of rotating systems.
Testing Stainless Steel with Magnets: A Simple and Effective Method
You may want to see also
Explore related products
Setting Up the Balancer: Proper assembly and placement of the magnetic balancer tool
The magnetic blade balancer is a precision tool, and its effectiveness hinges on proper setup. Before you begin, ensure the balancer’s components are clean and free of debris. Dust or residue on the magnetic surface can compromise its grip, leading to inaccurate readings. Start by placing the balancer’s base on a flat, stable surface. Even a slight tilt can skew results, so use a machinist’s level if available. The base should be non-ferrous to avoid interference with the magnetic field; a wooden or plastic workbench is ideal. Once the base is secure, attach the magnetic arm firmly to the center of the base. The arm’s pivot point must align perfectly with the base’s center to ensure smooth rotation. A misaligned arm will introduce errors, defeating the purpose of balancing.
Next, position the blade on the magnetic arm. The blade’s center hole should fit snugly over the arm’s tip, ensuring minimal movement. If the blade wobbles, it’s a sign of improper seating, which can lead to false balance readings. For larger blades, use a support stand to prevent sagging. The blade’s weight should be evenly distributed, with no part touching the work surface. If the blade is too heavy for the magnet, consider using a secondary magnet or a non-magnetic clamp to assist. Remember, the goal is to simulate the blade’s natural orientation during operation, so precision in placement is critical.
A common mistake is neglecting to calibrate the balancer before use. After assembly, rotate the blade slowly and observe its resting position. If it consistently tilts in one direction, adjust the arm’s angle slightly until the blade remains horizontal. This step ensures the balancer accounts for any inherent bias in the tool itself. For best results, perform this calibration with a known balanced blade first. If you lack a reference blade, rotate the arm 180 degrees and check if the blade returns to the same position. Discrepancies indicate a need for further adjustment.
Finally, consider environmental factors. Magnetic balancers are sensitive to external magnetic fields, so keep the tool away from motors, transformers, or other magnets. Even a nearby smartphone can interfere. Work in a temperature-controlled area, as extreme heat or cold can affect the magnet’s strength. If the blade is made of a ferromagnetic material, ensure it’s demagnetized before balancing. Residual magnetism can cause the blade to stick unevenly, distorting results. By addressing these details, you’ll ensure the balancer operates at its full potential, delivering accurate and reliable measurements.
Earth's Magnetic Compass: How Animals Navigate Our Planet's Invisible Guide
You may want to see also
Explore related products
Attaching Blades Securely: Techniques to safely mount blades onto the balancer for accuracy
Magnetic blade balancers rely on precise blade attachment to deliver accurate results. Even slight misalignment or instability during mounting can skew balance readings, leading to improper sharpening or performance issues. Understanding the mechanics of magnetic grip and blade placement is crucial for achieving reliable outcomes.
Magnetic force diminishes rapidly with distance, so ensuring the blade's mounting surface sits flush against the balancer's magnetic face is paramount. Any gap, no matter how small, weakens the hold and introduces potential for movement during rotation. This movement translates to inaccurate balance readings, defeating the purpose of using a balancer.
Surface Preparation: Before mounting, meticulously clean both the blade's mounting surface and the balancer's magnetic face. Use a clean, dry cloth to remove any debris, oil, or residue that could interfere with magnetic contact. For stubborn contaminants, a mild solvent like isopropyl alcohol can be used, followed by thorough drying.
Even minor surface imperfections can create microscopic gaps. Consider using a fine-grit sandpaper (400-600 grit) to gently smooth any roughness on the blade's mounting area, ensuring optimal contact with the balancer.
Mounting Technique: Position the blade on the balancer, aligning the center hole with the balancer's spindle. Apply gentle, even pressure to ensure full contact between the blade's surface and the magnet. Avoid excessive force, as this can distort the blade or damage the balancer.
Stability Check: Once mounted, gently attempt to rock the blade back and forth. Any noticeable movement indicates insufficient magnetic hold. If this occurs, remove the blade, re-clean both surfaces, and repeat the mounting process, ensuring proper alignment and contact.
For larger or heavier blades, consider using a secondary securing method, such as a light clamp or strap, to provide additional stability during balancing. This is particularly important when dealing with high-speed rotations.
Safety Considerations: Always wear appropriate safety gear, including eye protection and cut-resistant gloves, when handling blades. Never attempt to balance a blade that shows signs of damage, such as cracks or chips, as these can lead to catastrophic failure during rotation.
By meticulously preparing surfaces, employing proper mounting techniques, and prioritizing safety, you can ensure secure blade attachment on your magnetic balancer, leading to accurate balance readings and optimal blade performance. Remember, precision in mounting translates directly to precision in balancing, ultimately enhancing the effectiveness of your sharpening and maintenance efforts.
Building a Battery-Powered Magnetic Train: Feasibility and DIY Guide
You may want to see also
Explore related products
Reading Balance Indicators: Interpreting balancer readings to identify and correct imbalances
Magnetic blade balancers rely on precise readings to identify and correct imbalances in rotating machinery components like fans, propellers, and impellers. The balancer's indicators—often a combination of visual markers, digital displays, or analog gauges—provide critical data about the weight distribution across the blade's axis. Misinterpretation of these readings can lead to ineffective corrections, increased vibration, and reduced equipment lifespan. Understanding how to accurately read and interpret these indicators is therefore essential for achieving optimal balance.
Consider a typical magnetic blade balancer with a dual-plane indicator system. The upper indicator measures the heavy spot in the horizontal plane, while the lower indicator identifies the vertical imbalance. If the upper indicator shows a 3-gram imbalance at the 12 o’clock position, this suggests the blade is heavier at the top. Conversely, a 2-gram reading at the 6 o’clock position on the lower indicator indicates a heavier bottom. These readings are not arbitrary; they correspond to specific weight discrepancies that must be addressed through material removal or addition. For instance, removing 3 grams of material at the 12 o’clock position or adding 2 grams at the 6 o’clock position would theoretically correct the imbalance.
However, interpreting balancer readings requires more than just identifying numbers and positions. Environmental factors, such as temperature fluctuations or residual vibration from previous tests, can skew results. For example, a blade that appears balanced at room temperature may exhibit imbalances when operating at higher temperatures due to thermal expansion. To mitigate this, recalibrate the balancer before each use and conduct tests under conditions that mimic the blade’s operational environment. Additionally, always perform multiple test runs to ensure consistency in readings, as transient vibrations can produce false positives.
Correcting imbalances based on balancer readings involves a systematic approach. Start by marking the heavy spots identified by the indicators. Use a calibrated drill or grinder to remove material incrementally—typically in 0.5-gram steps—and retest after each adjustment. Over-correction is a common pitfall; removing too much material can shift the imbalance to the opposite side. For example, if the initial reading shows a 4-gram imbalance, remove 2 grams first, retest, and adjust further if necessary. Conversely, adding weight should be done sparingly, using adhesive weights or welding, and only when material removal is not feasible.
In conclusion, reading balance indicators on a magnetic blade balancer demands precision, context awareness, and methodical action. By understanding the relationship between readings and physical imbalances, accounting for environmental variables, and adopting a gradual correction process, operators can achieve accurate and lasting balance. This not only enhances the performance of rotating components but also extends their service life, reducing downtime and maintenance costs. Mastery of this skill transforms the balancer from a mere tool into a cornerstone of predictive maintenance strategies.
Android Auto and Magnetic Chargers: Compatibility and Convenience Explained
You may want to see also
Explore related products
Adjusting Blade Weight: Methods to add or remove weight for optimal balance
Achieving optimal blade balance is crucial for efficiency, precision, and safety in rotating machinery. When using a magnetic blade balancer, adjusting blade weight becomes a precise science, requiring careful consideration of methods to add or remove weight strategically. This process ensures the center of gravity aligns perfectly with the axis of rotation, minimizing vibration and maximizing performance.
Analytical Perspective:
Blade imbalance often stems from uneven weight distribution, material defects, or wear over time. Magnetic balancers identify these discrepancies by measuring vibrational forces at different speeds. Once the imbalance is quantified, the challenge lies in correcting it. Adding or removing weight must be done in small, measured increments—typically 0.5 to 2 grams at a time—to avoid overcompensation. For example, a 12-inch fan blade might require a 1-gram weight addition at the trailing edge to counterbalance a heavier leading edge. Precision is key; even minor adjustments can significantly alter balance.
Instructive Approach:
To add weight, use adhesive-backed tungsten or lead weights, available in pre-cut sizes (e.g., 1g, 2g, 5g). Clean the blade surface thoroughly, then apply the weight at the balancer-indicated location, typically opposite the heaviest point. For removal, carefully grind or file material from the heaviest area, checking balance after every 0.5 grams removed. Alternatively, drill small holes (1–2 mm diameter) in non-critical areas to reduce weight incrementally. Always retest after each adjustment to ensure the blade is within the balancer’s tolerance range, usually ±0.5 grams for industrial applications.
Comparative Insight:
Traditional balancing methods, such as trial-and-error weight placement, are time-consuming and less accurate than magnetic balancers. Modern systems use magnetic fields to suspend the blade, allowing for dynamic measurement and real-time adjustments. For instance, a magnetic balancer can detect a 0.2-gram imbalance in under 30 seconds, whereas manual methods might take minutes per iteration. This efficiency makes magnetic balancers ideal for high-volume manufacturing or precision applications like aerospace turbines, where even minor imbalances can lead to catastrophic failure.
Descriptive Example:
Imagine a 24-inch industrial fan blade with a persistent wobble at 1,200 RPM. A magnetic balancer reveals a 1.8-gram imbalance at the 7 o’clock position. To correct this, a 2-gram tungsten weight is affixed at the 1 o’clock position, directly opposite the heavy spot. After retesting, the balancer shows a residual 0.2-gram imbalance, which is addressed by adding a 0.5-gram weight adjacent to the first. The blade now spins smoothly, vibration reduced by 95%, extending its lifespan and reducing energy consumption by up to 10%.
Practical Tips:
Always document weight adjustments for future reference. Use a digital scale accurate to 0.1 grams when handling weights. For blades with complex geometries, consider 3D-printed weight inserts tailored to specific contours. Avoid adding weights near stress points or edges to prevent detachment during operation. Regularly calibrate your magnetic balancer to ensure accuracy, especially in environments with temperature fluctuations that can affect magnetic field strength. With these methods, achieving optimal blade balance becomes a systematic, repeatable process.
Using Alternative Magnets with Ring Alarm: Compatibility and Safety Tips
You may want to see also
Frequently asked questions
A magnetic blade balancer is a tool used to balance lawnmower blades, ensuring they spin evenly and reduce vibration. It uses magnets to securely hold the blade while you adjust its balance.
Attach the magnetic blade balancer to a flat, stable surface like a workbench. Ensure the magnets are clean and strong enough to hold the blade securely. Place the blade on the balancer’s cone or spindle, allowing it to rotate freely.
Spin the blade gently and observe if it stops in a consistent position or wobbles. If it stops at different points or tilts, it’s unbalanced. Adjust by removing material from the heavier side until it remains stationary in any position.
Yes, magnetic blade balancers are versatile and can be used for most lawnmower blades, including mulching and standard blades. Ensure the blade fits securely on the balancer’s cone or spindle.
Always wear gloves and safety goggles to protect against sharp edges. Ensure the blade is securely held by the magnets before spinning. Disconnect the mower’s spark plug or power source before removing the blade for balancing.
