Evan Parker

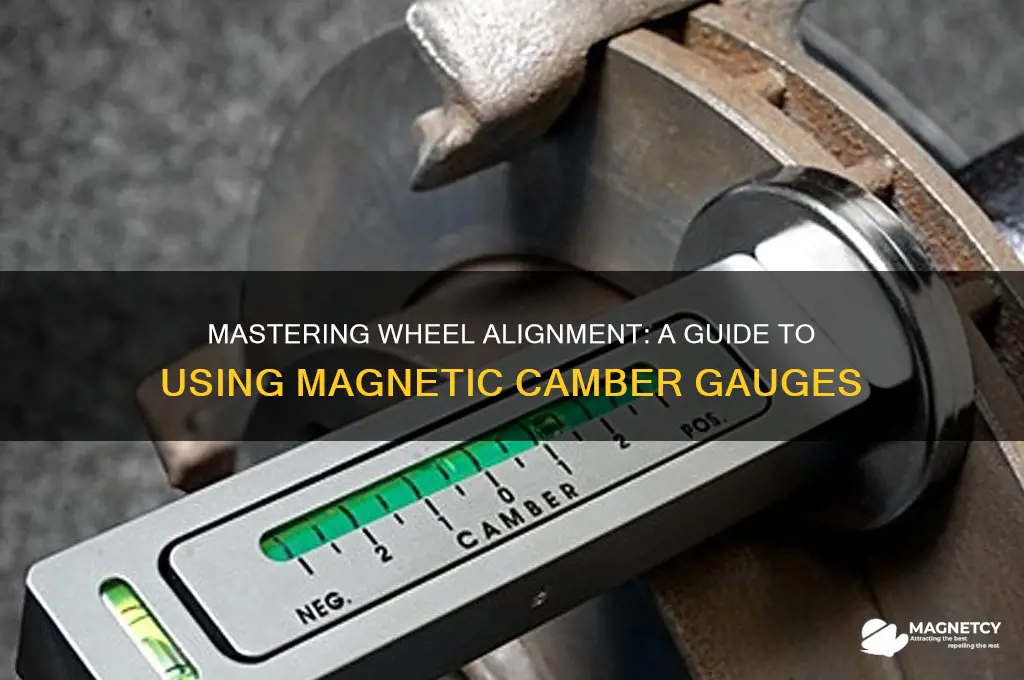

A magnetic camber gauge is an essential tool for accurately measuring the camber angle of a vehicle's wheels, which is crucial for ensuring optimal handling, tire wear, and safety. To use this device effectively, start by securely attaching the gauge's magnetic base to the wheel hub or any flat, ferrous surface near the wheel. Ensure the wheel is in a straight-ahead position and the vehicle is on a level surface. Adjust the gauge's arm so the measuring surface contacts the wheel's rim, then read the camber angle directly from the gauge's scale or digital display. Proper technique ensures precise measurements, allowing for informed adjustments to the suspension system.
| Characteristics | Values |
|---|---|
| Purpose | Measure wheel camber angle relative to the vertical axis. |
| Tool Required | Magnetic camber gauge with adjustable arm and magnetic base. |
| Vehicle Preparation | Park on a flat surface, engage parking brake, and ensure wheels are straight ahead. |
| Attachment Method | Securely attach the gauge’s magnetic base to the wheel hub or flat metal surface near the wheel. |
| Adjustment | Align the gauge’s arm parallel to the wheel’s rim or tire tread surface. |
| Reading Method | Read the camber angle from the gauge’s scale or digital display. |
| Positive Camber | Top of wheel tilts outward (away from vehicle). |
| Negative Camber | Top of wheel tilts inward (toward vehicle). |
| Optimal Camber Range | Typically -0.5° to -1.5° for most vehicles (varies by manufacturer). |
| Safety Precautions | Ensure vehicle is stable and secure before measuring. |
| Accuracy | Depends on gauge quality; digital gauges offer higher precision. |
| Applications | Wheel alignment checks, suspension diagnosis, and performance tuning. |
| Maintenance | Keep gauge clean and store in a dry place to maintain accuracy. |
| Limitations | Magnetic surface required for attachment; not suitable for non-magnetic wheels. |
| Advanced Features | Some gauges include caster and toe measurement capabilities. |
Explore related products
What You'll Learn
- Preparing the Gauge: Ensure the gauge is clean, calibrated, and magnetic surface is free of debris
- Attaching to Wheel: Securely place the gauge on the wheel hub or rim edge
- Reading Camber Angle: Align the gauge bubble level and note the camber angle measurement
- Adjusting Camber: Use the gauge readings to adjust suspension components for proper alignment
- Post-Adjustment Verification: Re-check camber with the gauge to confirm accurate alignment settings
Preparing the Gauge: Ensure the gauge is clean, calibrated, and magnetic surface is free of debris
Before measuring camber with a magnetic gauge, ensure the tool itself is in optimal condition. A clean, calibrated gauge with a debris-free magnetic surface is essential for accurate readings. Dust, grease, or metal shavings can interfere with the magnet’s adhesion to the vehicle’s strut or hub, leading to skewed measurements. Similarly, an uncalibrated gauge may display incorrect values, rendering the entire process futile. Think of it as preparing a precision instrument for surgery—every detail matters.
Cleaning the Gauge: Start by wiping the magnetic surface with a lint-free cloth dampened with isopropyl alcohol. Avoid abrasive materials or solvents that could damage the gauge’s finish or magnetic properties. For stubborn grime, use a soft-bristled brush to gently dislodge particles from crevices. Inspect the gauge’s body for any signs of wear or corrosion, as these can affect both functionality and longevity. A clean gauge not only ensures better adhesion but also prevents contaminants from transferring to the vehicle’s surface.
Calibrating the Gauge: Calibration is often overlooked but critical. Most magnetic camber gauges have a zero-adjustment feature. Place the gauge on a perfectly flat, non-magnetic surface (e.g., a granite inspection plate) and adjust the dial to read zero. If the gauge lacks this feature, compare its reading to a known-accurate tool. Calibration frequency depends on usage—professionals should calibrate monthly, while hobbyists can do so quarterly. Ignoring calibration can introduce errors of up to ±0.5°, which is significant in wheel alignment.
Inspecting the Magnetic Surface: Even a small piece of debris can create an air gap between the gauge and the vehicle, reducing magnetic pull and causing instability. Run your fingertip across the magnetic surface to detect any foreign particles. If present, remove them with a plastic scraper or compressed air. Avoid metal tools that could scratch the surface. A properly maintained magnetic surface ensures the gauge remains firmly attached during measurement, even on vertical surfaces like struts.
Practical Tips for Longevity: Store the gauge in a protective case to shield it from dust and impacts. Periodically demagnetize the tool if it attracts metallic debris excessively—a simple method involves rubbing a neodymium magnet along the surface in one direction several times. For gauges with digital displays, check battery levels regularly to avoid mid-measurement failures. Treating your magnetic camber gauge with care not only ensures accurate results but also extends its lifespan, making it a reliable tool for years to come.
Mastering Magnetic Fishing: A Beginner's Guide to Using Fishing Magnets
You may want to see also
Explore related products
Attaching to Wheel: Securely place the gauge on the wheel hub or rim edge
The magnetic camber gauge's effectiveness hinges on its secure attachment to the wheel. A wobbly or misaligned gauge renders measurements useless. Think of it as a tripod for a camera – stability is paramount for accuracy.
Begin by cleaning both the wheel hub (or rim edge) and the gauge's magnetic surface. Dust, grease, or debris act as saboteurs, weakening the magnetic bond. A quick wipe with a clean cloth ensures optimal contact. For stubborn grime, a mild solvent like isopropyl alcohol can be used, followed by a thorough drying.
Remember, the gauge's magnet is powerful, but not invincible.
Position the gauge so its centerline aligns with the wheel's center. This alignment is crucial for accurate readings. Imagine the gauge as a compass needle – it needs to point true for reliable results. Some gauges feature adjustable arms or indicators to fine-tune this alignment. Take advantage of these features for maximum precision.
Once aligned, firmly press the gauge against the wheel. The magnetic force should hold it securely. Give it a gentle tug to test the attachment. If it feels shaky, readjust and reapply pressure. Think of it like securing a climbing carabiner – a firm click signifies a safe connection.
For added stability, especially on uneven surfaces, consider using a wheel chock to prevent the wheel from rolling during measurement.
Exploring Multimodality Coregistration in Magnetic Resonance Imaging Applications
You may want to see also
Explore related products
Reading Camber Angle: Align the gauge bubble level and note the camber angle measurement
The bubble level is the heart of the magnetic camber gauge, providing a visual reference for accurate measurements. When reading camber angle, aligning this bubble level is your first critical step. Place the gauge on the wheel hub or brake rotor, ensuring the magnetic base adheres firmly. The bubble’s position within the vial indicates whether the gauge is level relative to the vehicle’s surface. If the bubble is off-center, adjust the gauge until it rests perfectly in the middle. This alignment ensures the camber angle measurement reflects the wheel’s true orientation to the road.
Once the bubble level is aligned, the camber angle measurement becomes your focus. The gauge’s scale, typically marked in degrees, will indicate the angle at which the wheel tilts inward or outward. Positive camber means the top of the wheel leans outward, while negative camber indicates an inward tilt. Note the reading directly from the scale, ensuring you account for any offset markings. For precision, record the measurement to the nearest half-degree. This step is crucial for diagnosing alignment issues, as deviations from the manufacturer’s specifications can lead to uneven tire wear, handling problems, or reduced fuel efficiency.
Practical tips can enhance your accuracy when using a magnetic camber gauge. Always ensure the vehicle is on a flat, level surface to eliminate external variables. If the wheel has a significant tilt, consider measuring both the front and rear of the wheel to confirm consistency. For vehicles with adjustable suspension, take measurements under normal driving conditions, as suspension load can affect camber angles. Additionally, compare readings from both sides of the vehicle to identify asymmetry, which may indicate suspension damage or misalignment.
While the process seems straightforward, common mistakes can compromise your results. One frequent error is failing to clean the wheel hub or rotor before attaching the gauge, which can prevent the magnet from adhering properly. Another is misinterpreting the scale, especially if the gauge has dual-axis measurements for camber and caster. Always double-check the bubble level alignment before noting the reading, as even slight misalignment can skew results. By avoiding these pitfalls, you ensure your camber angle measurements are reliable and actionable.
In conclusion, reading camber angle with a magnetic gauge is a precise task that hinges on proper bubble level alignment and accurate scale interpretation. By following these steps and incorporating practical tips, you can diagnose alignment issues effectively. Remember, the goal is not just to measure but to understand how camber affects vehicle performance and safety. With practice, this process becomes second nature, empowering you to maintain optimal wheel alignment with confidence.
Mastering Magnet Links in Firefox: A Step-by-Step Guide
You may want to see also
Explore related products
Adjusting Camber: Use the gauge readings to adjust suspension components for proper alignment
Camber adjustment is a delicate dance between precision and practicality, where the magnetic camber gauge serves as your trusted partner. Once you’ve taken accurate readings with the gauge, the real work begins: translating those numbers into tangible adjustments on your suspension components. The goal is to align the wheel’s vertical tilt (camber) to the manufacturer’s specifications, ensuring optimal tire wear, handling, and safety. Misaligned camber can lead to uneven tire wear, reduced grip, and compromised steering feel, making this step critical for vehicle performance.
To adjust camber, focus on the suspension components that influence wheel tilt, such as control arms, strut mounts, or camber plates. Most modern vehicles use eccentric bolts or adjustable sleeves on the control arms, which allow for fine-tuning. Loosen the locking nuts or bolts securing these components, then rotate the eccentric bolt or adjust the sleeve to alter the camber angle. For example, if the gauge reads negative camber (top of the wheel tilted inward) and you need to reduce it, rotate the bolt in the direction that pushes the top of the wheel outward. Always refer to the vehicle’s service manual for specific adjustment points and torque specifications.
A practical tip: make small adjustments incrementally, rechecking the gauge readings after each change. Camber changes of as little as 0.25 degrees can significantly impact performance, so patience is key. Over-adjusting can lead to excessive tire wear or handling issues, so aim for precision rather than speed. If your vehicle has non-adjustable suspension, camber may need to be corrected with aftermarket components like camber kits or offset bushings, which physically shift the wheel’s position relative to the chassis.
Caution is essential when working on suspension components. Always support the vehicle securely on jack stands, never rely solely on a jack, and ensure all components are tightened to factory torque specifications. Improperly secured suspension parts can fail catastrophically, posing a severe safety risk. Additionally, if you’re adjusting one side, check the opposite side to maintain symmetry, as camber imbalances between wheels can cause pulling or uneven wear.
In conclusion, adjusting camber based on gauge readings is a blend of technical skill and attention to detail. By methodically altering suspension components and verifying changes with the magnetic gauge, you can achieve proper alignment that enhances both performance and longevity. Remember, the goal isn’t just to hit the spec—it’s to ensure the vehicle handles predictably and safely under all driving conditions. With the right tools and approach, camber adjustment becomes a manageable task that yields significant rewards.
Using Aluminum for Magnet Pacifiers on Dolls: Safe or Risky?
You may want to see also
Explore related products
Post-Adjustment Verification: Re-check camber with the gauge to confirm accurate alignment settings
After making adjustments to your vehicle's suspension, the magnetic camber gauge becomes your trusted ally in ensuring precision. Post-adjustment verification is a critical step that separates a job well done from a potential safety hazard. Camber, the angle of the wheel relative to the ground when viewed from the front, directly impacts tire wear, handling, and overall vehicle stability. A mere 0.5-degree deviation can lead to uneven tire wear, while a 1-degree error can significantly affect cornering and steering feel.
To re-check camber, follow these steps meticulously. First, ensure the vehicle is on a flat surface and the suspension is settled after adjustments. Attach the magnetic base of the gauge to the wheel hub or brake rotor, allowing the gauge arm to extend freely. Adjust the gauge’s level bubble to center it, then read the camber angle from the gauge’s scale. Compare this reading to the manufacturer’s specifications, typically ranging from -0.5 to 1.5 degrees for most passenger vehicles. If the reading falls outside this range, further adjustments are necessary.
A common pitfall during verification is neglecting to check both static and dynamic camber. Static camber is measured with the wheel stationary, while dynamic camber accounts for changes during driving. For a comprehensive assessment, consider using a turn plate to simulate steering input and measure dynamic camber. This additional step ensures the alignment holds up under real-world conditions, not just in a static position.
Persuasively, skipping post-adjustment verification is akin to flying blind. Without confirming the camber settings, you risk premature tire wear, compromised handling, and even increased fuel consumption. For instance, a 2-degree negative camber can reduce tire life by up to 30%, while excessive positive camber can lead to unstable highway driving. Investing a few extra minutes in verification not only safeguards your vehicle but also enhances your driving experience.
In conclusion, post-adjustment verification with a magnetic camber gauge is not just a procedural step—it’s a safeguard for safety and performance. By meticulously re-checking camber, you ensure that every adjustment translates into tangible improvements on the road. Remember, precision in alignment is not optional; it’s essential.
Can Samsung Phones Use Magnetic Power Banks? A Complete Guide
You may want to see also
Frequently asked questions
A magnetic camber gauge is used to measure the camber angle of a vehicle's wheels, which is the inward or outward tilt of the wheel when viewed from the front. This measurement helps ensure proper wheel alignment for optimal handling, tire wear, and safety.
Place the gauge's magnetic base firmly against the wheel's outer rim or hub, ensuring it is securely attached. The gauge should be level and stable before taking a reading.
Once the gauge is attached, adjust the bubble level or digital display until it is centered. The scale on the gauge will indicate the camber angle in degrees, either positive (outward tilt) or negative (inward tilt).
Yes, a magnetic camber gauge can be used on most steel or alloy wheels due to its magnetic base. However, it may not work on non-magnetic materials like carbon fiber or certain aftermarket wheels.
The ideal camber angle varies by vehicle and driving conditions, but typically ranges between -0.5° to -1.5° (slightly negative) for street driving. Always refer to the manufacturer's specifications for your specific vehicle.
