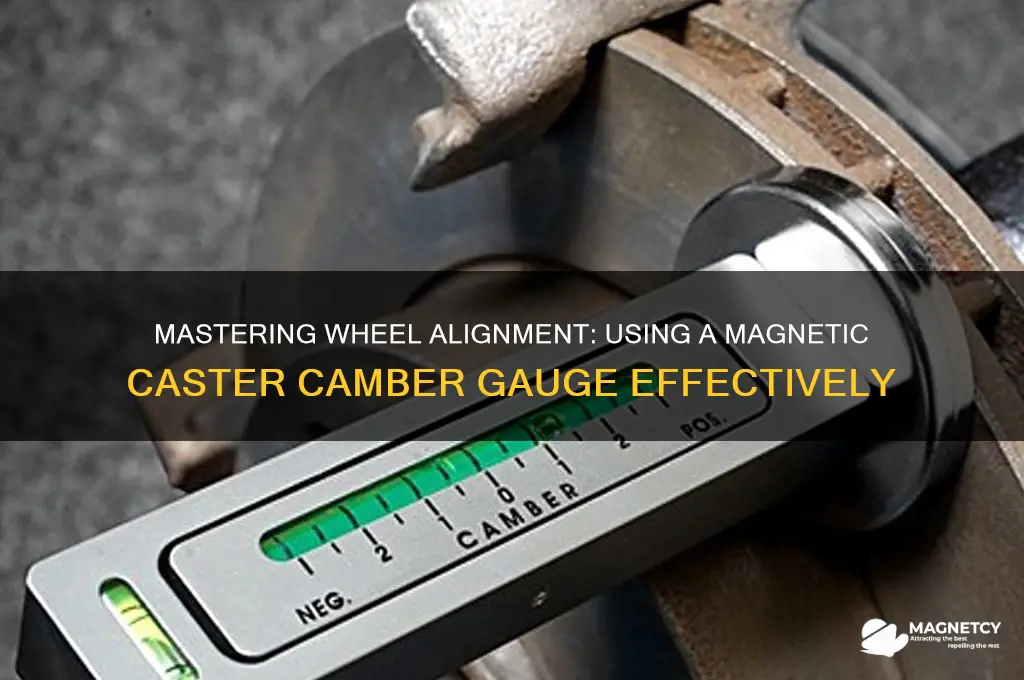

A magnetic caster camber gauge is an essential tool for automotive enthusiasts and mechanics, designed to measure the caster and camber angles of a vehicle's wheels, which are crucial for optimal handling, tire wear, and alignment. This handheld device features a magnetic base that securely attaches to the wheel hub or brake rotor, ensuring accurate readings. To use it, first clean the attachment surface to ensure a strong magnetic connection, then place the gauge on the wheel and adjust it until the bubble level is centered, indicating a proper reading. The gauge's graduated scale will display the caster and camber angles, allowing you to compare them against manufacturer specifications and make necessary adjustments for improved vehicle performance and safety.
| Characteristics | Values |
|---|---|
| Tool Required | Magnetic Caster Camber Gauge |
| Purpose | Measure caster and camber angles of vehicle wheels |
| Vehicle Preparation | Park on a flat surface, turn off engine, engage parking brake |
| Wheel Position | Ensure wheels are in the straight-ahead position |
| Gauge Placement | Attach the gauge magnetically to the wheel hub or rim |
| Camber Measurement | Read the gauge's level vial or digital display for camber angle |
| Caster Measurement | Turn the wheel slightly (e.g., 20 degrees) and read the caster angle |
| Adjustment | Compare readings to manufacturer specifications and adjust as needed |
| Accuracy | Ensure the gauge is calibrated and placed correctly for precise readings |
| Safety | Avoid moving the vehicle during measurement |
| Post-Measurement | Remove the gauge and store it properly |
| Frequency of Use | Recommended after suspension modifications or if alignment issues are suspected |
| Units of Measurement | Degrees (°) |
| Typical Camber Range | -1° to 3° (varies by vehicle) |
| Typical Caster Range | 2° to 8° (varies by vehicle) |
Explore related products
What You'll Learn
- Preparing the Gauge: Ensure the gauge is calibrated, clean, and ready for accurate measurements
- Mounting the Gauge: Attach the gauge securely to the wheel hub for stability
- Measuring Camber: Align the gauge and read the camber angle from the display
- Measuring Caster: Adjust the gauge to measure caster angle accurately using the swivel plate
- Interpreting Results: Compare readings to specifications and adjust suspension as needed for optimal alignment
Preparing the Gauge: Ensure the gauge is calibrated, clean, and ready for accurate measurements
Before attempting any measurements with a magnetic caster camber gauge, it's crucial to verify its calibration. Over time, the delicate mechanisms within the gauge can drift out of alignment, leading to inaccurate readings. Most gauges come with a calibration tool or a set of instructions for adjusting the zero point. Start by placing the gauge on a perfectly flat, non-magnetic surface. Check if the bubble level is centered and the gauge reads zero. If not, follow the manufacturer's guidelines to recalibrate. For instance, some gauges require loosening a set screw, adjusting the position of the indicator, and then tightening the screw again. This step is essential because even a slight miscalibration can lead to incorrect caster and camber measurements, potentially leading to unsafe driving conditions.
Cleaning the gauge is often overlooked but equally vital for accurate measurements. Dust, grease, or debris on the magnetic base or the moving parts can interfere with the gauge's ability to adhere properly or move freely. Use a soft, lint-free cloth to wipe down the magnetic surface, ensuring it adheres firmly to the vehicle's hub or strut. For stubborn grime, a mild solvent like isopropyl alcohol can be applied sparingly, followed by thorough drying. Inspect the gauge's moving parts, such as the swivel mechanism and indicator arms, for any buildup. A small brush or compressed air can dislodge particles that might affect the gauge's range of motion. Neglecting this step could result in the gauge slipping or binding, leading to inconsistent or erroneous readings.
Preparing the gauge also involves ensuring it’s ready for the specific conditions of the measurement. For example, if the gauge has been stored in a cold environment, allow it to acclimate to room temperature before use, as temperature fluctuations can affect the internal components. Similarly, if the gauge has been exposed to moisture, ensure it’s completely dry to prevent rust or corrosion. Some gauges have protective cases or covers; use these when the gauge is not in immediate use to maintain its condition. Additionally, inspect the gauge for any physical damage, such as cracks or bent parts, which could compromise its functionality. A well-maintained gauge not only provides accurate measurements but also extends its lifespan, saving time and money in the long run.
Finally, consider the environment in which the gauge will be used. Measurements should ideally be taken in a controlled setting, away from vibrations or magnetic interference that could skew results. If working in a garage, ensure the vehicle is on a level surface and securely supported on jack stands or a lift. Avoid placing the gauge near large metal objects or electrical equipment that might interfere with its magnetic properties. By taking these precautions, you ensure the gauge operates under optimal conditions, providing reliable data for precise caster and camber adjustments. Proper preparation of the gauge is not just a preliminary step—it’s the foundation for accurate and safe wheel alignment.
Using Magnets to Navigate: A Simple Direction-Finding Technique
You may want to see also
Explore related products
Mounting the Gauge: Attach the gauge securely to the wheel hub for stability
Securing the magnetic caster camber gauge to the wheel hub is the foundation of accurate measurements. A wobbly or misaligned gauge renders readings useless, skewing your understanding of wheel alignment. Think of it as building a house on sand versus solid rock – stability is everything.
The magnetic base of the gauge is designed to adhere firmly to the wheel hub's metal surface. Ensure the hub is clean and free of grease or debris, as these can weaken the magnetic bond. A quick wipe with a clean cloth is often sufficient.
Position the gauge so the vertical arm aligns with the wheel's centerline. This ensures the gauge's bubble vials, which indicate camber and caster angles, are oriented correctly. Double-check this alignment by visually inspecting the gauge from both the front and side of the wheel.
Once positioned, firmly press the gauge onto the hub, engaging the magnet. Apply enough pressure to ensure a strong connection. A gentle tug should confirm the gauge is securely attached. If it feels loose, readjust the position and reapply pressure.
Remember, a stable gauge is paramount. A shaky setup leads to shaky results. Take the time to ensure a firm attachment, and your caster and camber measurements will be reliable and actionable.
Do Elevators Use Magnets? Unveiling the Technology Behind Vertical Transport
You may want to see also
Explore related products
Measuring Camber: Align the gauge and read the camber angle from the display
Camber measurement is a critical step in wheel alignment, ensuring your vehicle handles safely and efficiently. To begin, position the magnetic caster camber gauge on the wheel hub or rim, ensuring the magnetic base adheres firmly. The gauge’s design allows it to align naturally with the wheel’s plane, providing an accurate reference point for measurement. Once attached, adjust the gauge’s arm until it is perfectly parallel with the wheel’s surface, eliminating any potential errors caused by misalignment. This step is crucial because even a slight deviation can skew the camber reading, leading to improper adjustments.
The display on the gauge will now show the camber angle, typically measured in degrees. Positive camber indicates the top of the wheel tilts outward, while negative camber means it tilts inward. Most passenger vehicles aim for a camber angle between -1° and 1°, though specifications vary by make and model. Always refer to your vehicle’s manual for the manufacturer’s recommended range. If the reading falls outside this range, adjustments to the suspension components may be necessary. For example, a camber angle of -2.5° on a front wheel could lead to uneven tire wear and compromised handling, signaling the need for realignment.
When reading the display, pay attention to the gauge’s sensitivity and precision. High-quality magnetic caster camber gauges often feature digital displays with resolutions as fine as 0.1°, allowing for precise measurements. Analog gauges, while less common, can still provide accurate readings if calibrated correctly. To ensure reliability, take multiple measurements and average the results. This practice minimizes the impact of minor inconsistencies, such as slight wheel imperfections or gauge placement variations. For instance, if three readings yield -0.8°, -0.9°, and -0.7°, the average of -0.8° is a more dependable value.
Practical tips can enhance the accuracy and efficiency of camber measurement. Always perform measurements on a level surface to avoid gravitational interference. Ensure the vehicle’s suspension is at its normal ride height, as modifications like lifted or lowered setups can affect camber angles. Additionally, clean the wheel hub or rim before attaching the gauge to prevent debris from interfering with the magnetic connection. For vehicles with alloy wheels, verify that the gauge’s magnets are strong enough to hold securely, as some materials may reduce magnetic adhesion. By following these steps and considerations, you can confidently measure camber angles and maintain optimal wheel alignment.
Do Monorails Use Magnets? Unveiling the Technology Behind These Trains
You may want to see also
Explore related products
Measuring Caster: Adjust the gauge to measure caster angle accurately using the swivel plate
The swivel plate on a magnetic caster camber gauge is your secret weapon for nailing caster angle measurements. Unlike camber, which is a tilt in the vertical plane, caster is a tilt in the horizontal plane, affecting steering feel and stability. This swivel plate mimics the wheel's steering movement, allowing the gauge to capture the true caster angle.
Think of it as a miniature steering wheel for your gauge, ensuring accuracy in your readings.
Mastering the Swivel: A Step-by-Step Guide
- Secure the Gauge: Magnetically attach the gauge to the wheel hub, ensuring it's flush and stable.
- Level the Playing Field: Use the gauge's built-in bubble level to ensure it's perfectly horizontal. This is crucial for accurate readings.
- Swivel into Action: Gently rotate the swivel plate to its full left and right steering positions. The gauge will record the angle difference between these two extremes.
- Read and Record: Note the caster angle displayed on the gauge. Positive caster means the top of the steering axis tilts towards the rear of the vehicle, while negative caster tilts it forward.
Beyond the Numbers: Understanding Caster's Impact
Caster angle isn't just a number; it directly influences your driving experience. Positive caster enhances high-speed stability and straight-line tracking, making highway driving more confident. However, it can make low-speed maneuvering feel heavier. Negative caster, on the other hand, lightens steering effort at low speeds but can compromise stability at higher velocities.
Pro Tip: Consult your vehicle's manual or a trusted mechanic for the recommended caster angle range.
Troubleshooting Caster Measurements
If your caster readings seem off, double-check these factors:
- Wheel Bearing Play: Excessive play can introduce errors. Ensure the wheel bearings are in good condition.
- Tire Pressure: Incorrect tire pressure can affect wheel alignment. Inflate tires to the recommended PSI.
- Surface Level: Measure on a flat, level surface to eliminate external influences.
By mastering the swivel plate and understanding caster's role, you'll be well on your way to achieving optimal wheel alignment and a smoother, more controlled driving experience.
Magnetic Induction Secrets: Melting Metal with Powerful Electromagnets
You may want to see also
Explore related products
Interpreting Results: Compare readings to specifications and adjust suspension as needed for optimal alignment
Once you’ve taken caster and camber measurements with your magnetic gauge, the real work begins: interpreting the results. Start by comparing your readings to the manufacturer’s specifications for your vehicle. These values, typically found in the service manual or online, represent the ideal alignment settings for optimal performance, tire wear, and handling. Deviations from these specifications—whether positive or negative—indicate adjustments are necessary. For example, if your camber reading is -1.5° but the spec calls for -1.0°, the wheel is tilted inward too much, which can cause uneven tire wear on the inner edge.
Analyzing the data requires a systematic approach. Begin with camber, as it directly affects tire wear. Positive camber (wheels tilted outward) or excessive negative camber can lead to premature tire wear and handling issues. Next, evaluate caster, which influences steering stability. Too much positive caster can make steering heavy, while too little can reduce high-speed stability. Toe measurements, though not directly part of a magnetic caster camber gauge’s function, should also align with specs to avoid scrubbing and uneven tire wear. Cross-reference all readings to ensure adjustments in one area don’t negatively impact another.
Adjusting suspension components to achieve optimal alignment is both an art and a science. For camber corrections, focus on the upper control arm or strut mounts, depending on your vehicle’s design. Caster adjustments often involve moving the strut tower or using offset bushings. Always adjust one side at a time and recheck measurements after each change, as small tweaks can have significant effects. For instance, loosening a strut bolt and shifting the assembly slightly can bring caster within spec without requiring major disassembly.
Practical tips can streamline the process. Use a marker to indicate the initial position of adjustable components before making changes, allowing you to revert if needed. Work on a level surface and ensure the vehicle is at its curb weight, as suspension geometry changes under load. If adjustments seem impossible within the available range, inspect for worn or damaged parts that may require replacement. Finally, verify all measurements after completing adjustments, as tightening bolts or settling components can alter alignment.
The ultimate goal is to achieve a balance that meets specifications while considering real-world driving conditions. For performance vehicles, slight deviations from stock specs might be acceptable to enhance handling, but always prioritize safety and tire longevity. Regularly recheck alignment after adjustments, especially if you notice pulling, vibration, or uneven tire wear. By meticulously comparing readings to specs and making precise adjustments, you ensure your vehicle performs optimally and remains safe on the road.
Android Auto and Magnetic Chargers: Compatibility and Convenience Explained
You may want to see also
Frequently asked questions
A magnetic caster camber gauge is a tool used to measure the caster and camber angles of a vehicle's wheels. Caster refers to the steering axis angle when viewed from the side, while camber refers to the vertical tilt of the wheel when viewed from the front. This tool helps ensure proper wheel alignment for optimal handling, tire wear, and safety.
Place the gauge's magnetic base firmly against the wheel's rim or hub, ensuring it is securely attached. The gauge should be positioned so that the measuring arm aligns with the wheel's centerline for accurate readings.
Adjust the gauge's measuring arm to align with the wheel's centerline. The gauge will display the camber angle on the vertical scale and the caster angle on the horizontal scale. Compare the readings to the manufacturer's specifications for your vehicle.
Yes, a magnetic caster camber gauge can be used on most steel or aluminum wheels, as the magnetic base adheres well to these materials. However, it may not work effectively on non-magnetic wheels, such as those made of carbon fiber or certain alloys. Always ensure the surface is clean and flat for accurate measurements.
