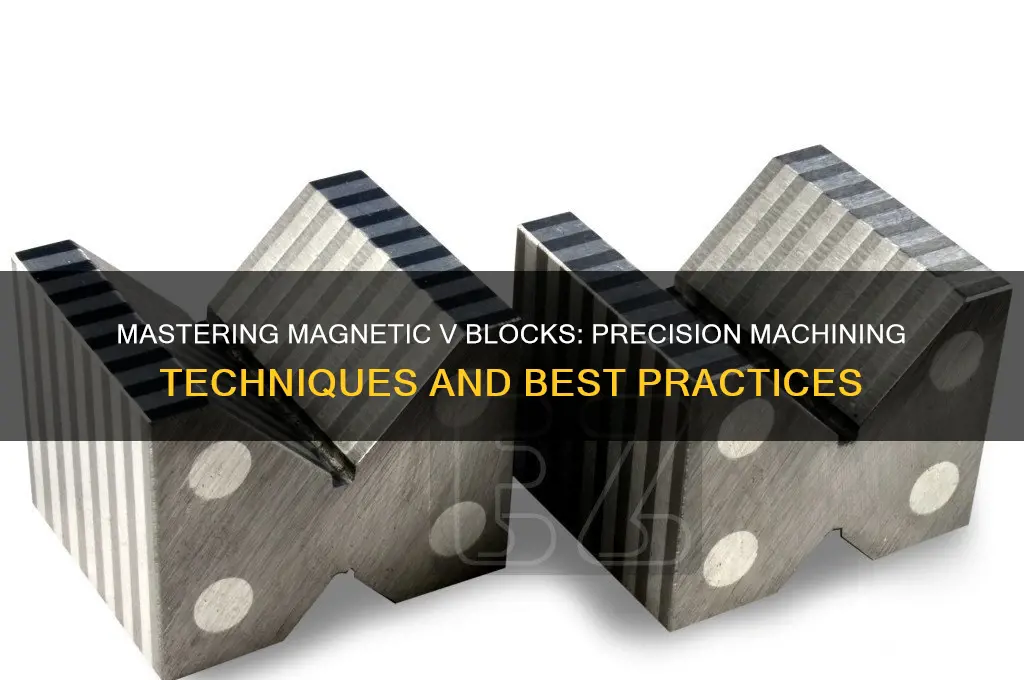

Magnetic V blocks are versatile tools widely used in machining and inspection processes to securely hold cylindrical or round workpieces in place. These blocks feature a V-shaped groove and powerful magnets, allowing for precise alignment and stability during operations such as milling, grinding, or measurement. To use magnetic V blocks effectively, start by cleaning both the workpiece and the block's surface to ensure optimal magnetic adhesion. Position the workpiece in the V-groove, aligning it carefully to achieve the desired orientation. Activate the magnet by engaging the magnetic switch, ensuring the workpiece is firmly held in place. Always verify the alignment and stability before proceeding with any machining or inspection tasks to maintain accuracy and safety. Proper handling and maintenance of magnetic V blocks will maximize their efficiency and longevity in various industrial applications.
| Characteristics | Values |
|---|---|
| Material | Typically made from hardened steel or stainless steel for durability and precision. |
| Magnetic Base | Equipped with strong magnets to securely attach to ferromagnetic surfaces like machine tables or plates. |
| V-Shaped Groove | Designed to hold round or cylindrical workpieces firmly in place, ensuring stability during machining or inspection. |
| Adjustability | Often features adjustable screws or levers to fine-tune the position and clamping pressure. |
| Precision | High precision with tight tolerances (e.g., ±0.001 inches or ±0.02 mm) for accurate workpiece alignment. |
| Size Variations | Available in various sizes (e.g., 2", 3", 4") to accommodate different workpiece diameters. |
| Surface Treatment | Commonly coated with rust-resistant finishes like nickel or chrome plating for longevity. |
| Weight | Varies by size, typically ranging from 1 to 5 pounds for portability and ease of use. |
| Applications | Used in milling, grinding, drilling, and inspection processes for holding cylindrical parts. |
| Compatibility | Works with ferromagnetic surfaces; non-magnetic versions may require additional fixtures. |
| Ease of Use | Simple to set up and adjust, reducing setup time in machining operations. |
| Maintenance | Requires periodic cleaning of the magnetic base and V-groove to ensure optimal performance. |
| Price Range | Typically ranges from $20 to $150 depending on size, material, and brand. |
Explore related products
What You'll Learn
Setting Up Magnetic V Blocks
Magnetic V blocks are precision tools designed to securely hold cylindrical or round workpieces during machining, grinding, or inspection processes. Proper setup is crucial for achieving accurate and repeatable results. Begin by cleaning both the V block’s magnetic surface and the workpiece to ensure optimal magnetic adhesion. Dust, oil, or debris can significantly reduce holding power, compromising stability. Use a lint-free cloth and isopropyl alcohol for thorough cleaning. Once clean, place the workpiece centrally within the V groove, ensuring it sits flush against the magnetic face.
The next step involves activating the magnet. Most magnetic V blocks feature a control knob or lever to adjust magnetic force. Start with the magnet turned off, position the workpiece, and then gradually increase the magnetic strength until the workpiece is firmly held. Over-tightening the magnet can distort delicate materials, so apply only the force necessary to secure the piece. For larger or heavier workpieces, consider using additional support, such as a non-magnetic backing plate, to distribute the load evenly and prevent tipping.
Precision alignment is critical when setting up magnetic V blocks. Use a dial indicator or height gauge to verify that the workpiece is level and centered within the V groove. Misalignment can lead to uneven machining or measurement errors. If the workpiece is not seated correctly, deactivate the magnet, reposition the piece, and recheck alignment. For cylindrical parts with tapered ends, ensure the widest diameter is in contact with the V groove to maximize stability.
Finally, test the setup before proceeding with operations. Gently attempt to move the workpiece by hand to confirm it is securely held. If any movement is detected, readjust the magnet strength or reposition the piece. For high-precision applications, perform a trial run at low speed to ensure the setup remains stable under machining forces. Regularly inspect the V block’s magnetic strength over time, as wear or damage can reduce its effectiveness. Proper setup not only enhances accuracy but also extends the tool’s lifespan, making it a worthwhile investment in your workflow.
Mastering Magnet iOS: A Step-by-Step Guide for Efficient Use
You may want to see also
Explore related products
Aligning Workpieces Accurately
Magnetic V-blocks are indispensable for achieving precise alignment of cylindrical workpieces, but their effectiveness hinges on understanding the interplay between magnet strength, workpiece material, and surface contact. Neodymium magnets, for instance, offer superior holding power compared to ferrite magnets, making them ideal for heavy or ferrous workpieces. However, even the strongest magnet is rendered ineffective if the V-block’s surface is not clean or if the workpiece’s diameter exceeds the block’s groove width. Always ensure the V-block’s magnetic face is free of debris and the workpiece sits squarely in the groove to maximize contact and stability.
To align a workpiece accurately, begin by placing the V-block on a flat, machined surface to eliminate external variables that could skew alignment. Activate the magnet and gently lower the workpiece into the groove, allowing the magnetic force to pull it firmly into place. For non-ferrous materials like aluminum or brass, consider using an adapter plate or a magnetic-backed V-block with adjustable poles to enhance grip. Verify alignment using a dial indicator or height gauge, ensuring the workpiece’s axis is perpendicular to the work surface within ±0.001 inches for critical applications.
A common mistake is overestimating the magnet’s holding power, leading to slippage during machining or measurement. To mitigate this, apply a light downward force to the workpiece after alignment and test its stability by gently tapping the setup. If movement occurs, adjust the V-block’s position or use a second block to support the opposite end of the workpiece, distributing the load evenly. For long or slender workpieces, a third V-block placed midway can prevent sagging, ensuring consistent alignment along the entire length.
Incorporating magnetic V-blocks into a workflow requires balancing precision with practicality. While they offer quick setup and adjustment, they are not a one-size-fits-all solution. For example, workpieces with uneven surfaces or those requiring extreme precision may benefit from additional fixtures or non-magnetic alternatives. Pairing V-blocks with a machined reference plate or using them in conjunction with a sine bar can further refine alignment, particularly in applications demanding angular accuracy. By understanding their limitations and leveraging their strengths, magnetic V-blocks become a powerful tool for achieving reliable, repeatable alignment.
Strontium's Role in Enhancing Magnet Performance and Applications
You may want to see also
Explore related products
Securing V Blocks on Surface
Magnetic V blocks are versatile tools for holding cylindrical workpieces securely during machining, inspection, or assembly. However, their effectiveness hinges on proper securing to the work surface. A wobbly base compromises accuracy and safety, rendering the V block’s magnetic strength irrelevant. Achieving a stable setup requires understanding both the surface material and the V block’s design.
Surface Preparation: The Foundation of Stability
Flatness and cleanliness are non-negotiable. Even minor surface imperfections amplify under load, causing the V block to tilt or shift. Use a precision surface plate or a machined table for optimal results. For less critical applications, a flat steel plate (minimum 1/2" thickness) suffices, provided it’s free of warping. Clean the surface with acetone or isopropyl alcohol to remove oils or debris that could interfere with magnetic adhesion. If working on a non-ferrous surface (e.g., aluminum or composite), pair the V block with a steel adapter plate to enable magnetic bonding.
Magnetic Force Optimization: Beyond Surface Contact
Magnetic V blocks rely on direct, uninterrupted contact with ferrous surfaces to maximize holding power. Ensure the block’s base is free of burrs or gaps that could create air pockets. For added security, especially in high-vibration environments, supplement the magnetic force with mechanical clamping. Position clamps perpendicular to the V block’s axis to counteract lateral forces without obstructing the workpiece. Avoid over-tightening, as excessive pressure can distort the V block’s geometry or damage the surface.
Environmental Considerations: Anticipating Hidden Challenges
Temperature fluctuations and humidity affect magnetic performance. In hot environments, magnetic strength diminishes slightly, while moisture can accelerate corrosion on unprotected surfaces. If working in a humid or outdoor setting, apply a thin coat of rust inhibitor to the V block’s base. For temperature-critical applications, such as precision grinding, preheat the V block and workpiece to the same temperature to prevent thermal expansion discrepancies.
Practical Tips for Everyday Use
For quick setups, mark the V block’s position on the surface plate with scribe lines to ensure consistent placement. When handling heavy workpieces, test the setup by gently tapping the V block before full engagement. If using multiple V blocks, align them using a straightedge to maintain parallelism. Finally, store V blocks with their magnetic faces protected by a steel plate or non-magnetic cover to preserve their strength over time.
By addressing surface preparation, magnetic optimization, environmental factors, and practical techniques, securing V blocks becomes a systematic process rather than a trial-and-error exercise. The result is a stable, reliable foundation that maximizes the tool’s utility across applications.
Creative Fridge Art: Craft Magnets for Unique Decor Ideas
You may want to see also
Explore related products
Adjusting Magnetic Strength Properly
Magnetic V blocks rely on precise magnetic force to securely hold workpieces without marring surfaces. Adjusting this force improperly can lead to slipping, misalignment, or even damage to delicate materials. Understanding the factors influencing magnetic strength and how to control them is crucial for achieving optimal results.
Fine-tuning magnetic strength begins with assessing your workpiece. Material type plays a significant role: ferromagnetic materials like steel respond strongly to magnets, while non-ferrous materials like aluminum require significantly higher force. Thickness is equally important; thicker materials demand stronger magnets to penetrate and hold effectively. Consider the weight of the workpiece as well, ensuring the magnetic force exceeds it to prevent slippage.
Most magnetic V blocks feature adjustable magnets, allowing you to tailor the strength to your specific needs. Start by setting the magnet to its lowest strength and gradually increase it until the workpiece is held firmly in place. Avoid over-tightening, as excessive force can distort the workpiece or damage the magnet itself. Some models offer numerical indicators or color-coded settings for precise adjustments, while others rely on manual calibration.
Refer to the manufacturer's guidelines for recommended strength settings based on material type and thickness. These guidelines provide a starting point, but remember that factors like surface finish and environmental conditions can influence holding power. For critical applications, conduct test runs on scrap material to ensure the chosen setting provides adequate holding force without causing damage.
Regularly inspect your magnetic V blocks for signs of wear or damage. Over time, magnets can lose strength due to demagnetization or physical wear. If you notice a decrease in holding power, consider replacing the magnets or adjusting the settings accordingly. Additionally, keep the V block surfaces clean and free of debris, as contaminants can interfere with magnetic contact and reduce holding strength. By understanding the principles of magnetic force and following these practical tips, you can ensure your magnetic V blocks provide reliable and precise holding power for a wide range of applications.
Mastering Magnetic Minions: Strategies for Dominating Hearthstone Battles
You may want to see also
Explore related products
$29.59
Maintaining and Cleaning V Blocks
Magnetic V blocks are precision tools, and their performance hinges on meticulous maintenance. Neglecting this aspect can lead to inaccurate measurements, reduced holding power, and even damage to the blocks themselves. Regular cleaning and care are essential to ensure their longevity and accuracy.
Understanding the Enemy: Contaminants and Their Impact
Analyzing the primary threats to your V blocks reveals a common culprit: contaminants. Dust, debris, metal shavings, and even fingerprints can accumulate on the magnetic surfaces and V-shaped grooves. These seemingly minor intruders can have significant consequences. Dust and debris can interfere with the magnetic field, weakening the holding power. Metal shavings, if left unchecked, can scratch the delicate surfaces, compromising accuracy. Fingerprints, while less obvious, can leave behind oils that attract more dust and debris, creating a vicious cycle.
Understanding these threats highlights the importance of a proactive cleaning regimen.
A Two-Pronged Approach: Cleaning and Inspection
Effective V block maintenance involves a two-pronged strategy: regular cleaning and thorough inspection. For cleaning, a soft, lint-free cloth dampened with isopropyl alcohol (70% concentration) is ideal. Gently wipe down the magnetic surfaces and V-shaped grooves, ensuring all visible contaminants are removed. Avoid abrasive materials or harsh chemicals that could damage the finish.
After cleaning, a meticulous inspection is crucial. Examine the V-shaped grooves for any signs of wear, scratches, or deformation. Even minor imperfections can affect accuracy. Similarly, inspect the magnetic surfaces for any signs of corrosion or damage. Addressing these issues promptly can prevent further deterioration and ensure continued precision.
Preventative Measures: Storage and Handling
Beyond cleaning and inspection, proper storage and handling are vital for V block longevity. Store your V blocks in a clean, dry environment, preferably in a protective case to shield them from dust and debris. When handling, always use clean gloves to prevent fingerprints and oils from transferring onto the surfaces. Avoid dropping or subjecting the blocks to excessive force, as this can damage the delicate components.
By implementing these maintenance practices, you can ensure your magnetic V blocks remain accurate, reliable, and ready for precise measurements for years to come. Remember, a little care goes a long way in preserving the performance of these essential tools.
Mastering Magnetic Molds: A Step-by-Step Guide for Perfect Results
You may want to see also
Frequently asked questions
Magnetic V blocks are precision tools used for holding and securing cylindrical or round workpieces during machining, inspection, or assembly processes. They provide a stable and accurate clamping solution for operations like grinding, milling, or measurement.
Place the magnetic V blocks on a flat, magnetic surface (like a machine table or magnetic plate). Ensure the V-shaped grooves align with the workpiece's diameter. Activate the magnets, position the workpiece in the grooves, and verify it is centered and securely held.
No, magnetic V blocks require a ferromagnetic workpiece (e.g., steel or iron) to function. For non-magnetic materials like aluminum or brass, use non-magnetic V blocks or additional clamping methods.
Regularly clean the V-shaped grooves and magnetic surfaces with a soft brush or cloth to remove chips and debris. Avoid using harsh chemicals that could damage the magnets. Store them in a dry place to prevent rust and ensure longevity.
