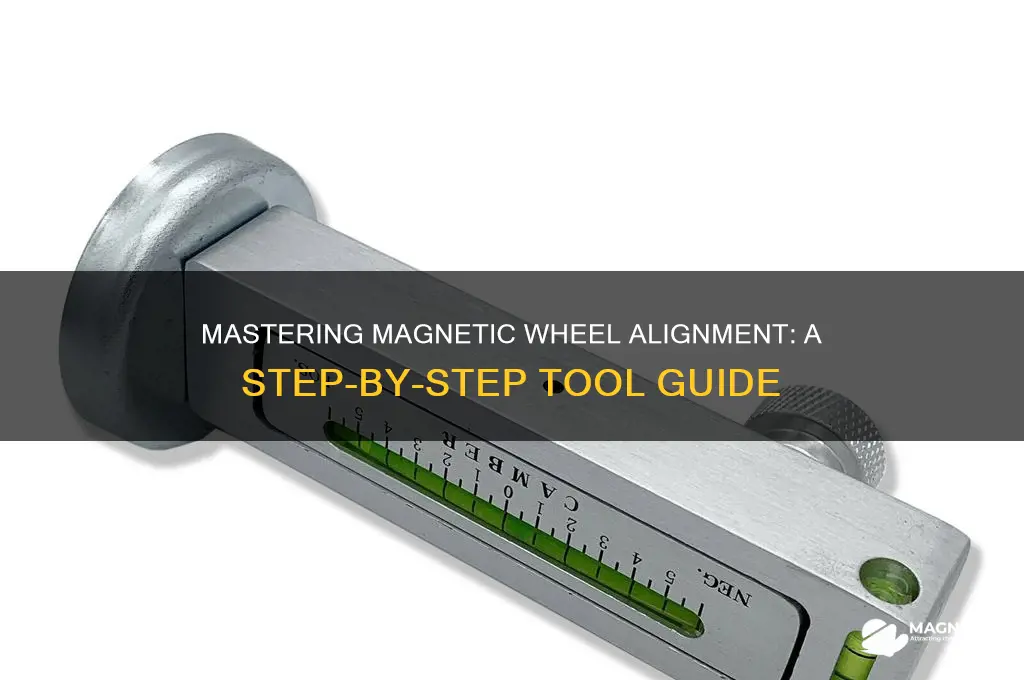

Magnetic wheel alignment tools are essential for ensuring precise and accurate wheel alignment, which is crucial for vehicle safety, performance, and tire longevity. These tools utilize strong magnets to securely attach to the wheel hubs, allowing for easy measurement of camber, caster, and toe angles. To use a magnetic wheel alignment tool effectively, start by cleaning the wheel hub surfaces to ensure a strong magnetic connection. Position the tool on the hub, ensuring it is level and stable, then adjust the vehicle’s suspension according to the manufacturer’s specifications. Measure the alignment angles using the tool’s built-in indicators or digital readouts, making adjustments as needed until the desired alignment is achieved. Regular use of this tool not only improves driving stability but also prevents uneven tire wear, saving time and money in the long run.
Explore related products
What You'll Learn
- Understanding Tool Components: Identify parts like sensors, clamps, and display units for accurate setup
- Vehicle Preparation: Clean tires, ensure even tire pressure, and park on a flat surface
- Attaching Sensors: Secure sensors to wheels, aligning them properly for precise readings
- Calibration Process: Follow manufacturer steps to calibrate the tool for accurate measurements
- Interpreting Results: Analyze alignment data (camber, toe, caster) to make necessary adjustments
Understanding Tool Components: Identify parts like sensors, clamps, and display units for accurate setup
Magnetic wheel alignment tools are precision instruments, and their effectiveness hinges on understanding the interplay of their core components. Each part serves a distinct purpose, contributing to the accuracy and efficiency of the alignment process. Let's dissect these components to ensure you can harness their full potential.
Sensors: The Eyes of Alignment
At the heart of any magnetic wheel alignment tool lie the sensors. These sophisticated devices are the eyes of the system, capturing critical data points from each wheel. Typically, you'll find four sensors, one for each wheel, strategically positioned to measure camber, caster, and toe angles. Modern sensors employ advanced technologies like accelerometers and gyroscopes to provide real-time, precise measurements. For instance, some sensors can detect deviations as small as 0.1 degrees, ensuring your alignment is spot-on. When setting up, ensure sensors are securely attached to the wheels, following the manufacturer's guidelines for placement. A slight misalignment here can lead to significant errors in the final readings.
Clamps: Securing Precision
Clamps are the unsung heroes of the alignment process, providing a stable and secure connection between the sensors and the wheels. These clamps must be robust yet gentle, ensuring a firm grip without damaging the wheel's surface. Most clamps feature adjustable mechanisms to accommodate various wheel sizes and designs. When attaching clamps, apply even pressure to avoid warping the wheel. It's crucial to inspect the clamps for wear and tear regularly, as damaged clamps can compromise the accuracy of the entire system. Remember, the goal is to create a temporary yet rigid connection, allowing the sensors to capture data without any movement or slippage.
Display Units: Decoding the Data
The display unit is your window into the alignment process, translating raw sensor data into actionable information. These units vary widely, from simple LED screens showing basic alignment angles to advanced touchscreen interfaces with 3D wheel visualizations. High-end models may offer features like real-time adjustments, historical data comparison, and even cloud-based reporting. When using the display unit, familiarize yourself with the interface to efficiently navigate through menus and interpret the data. Some systems provide audio cues or color-coded indicators to highlight areas requiring attention, making the alignment process more intuitive.
The Symphony of Components
Understanding the individual components is essential, but it's their harmonious collaboration that delivers accurate wheel alignment. Imagine the sensors as musicians, each playing a unique instrument, and the display unit as the conductor, guiding the orchestra. The clamps, in this analogy, are the sheet music stands, providing the necessary support. When all elements are in sync, the result is a perfectly aligned vehicle, ensuring optimal performance, fuel efficiency, and tire longevity.
In practice, start by calibrating the sensors and ensuring the clamps are securely attached. Then, follow the display unit's prompts to capture data from each wheel. Analyze the readings, making adjustments as needed, and repeat the process until the desired alignment specifications are achieved. Regular maintenance of these components, including cleaning and software updates, will further enhance the tool's longevity and accuracy.
By mastering the identification and function of these components, you'll not only ensure precise wheel alignment but also appreciate the intricate engineering behind this essential automotive tool. This knowledge empowers you to troubleshoot issues, optimize setup times, and ultimately deliver superior alignment services.
