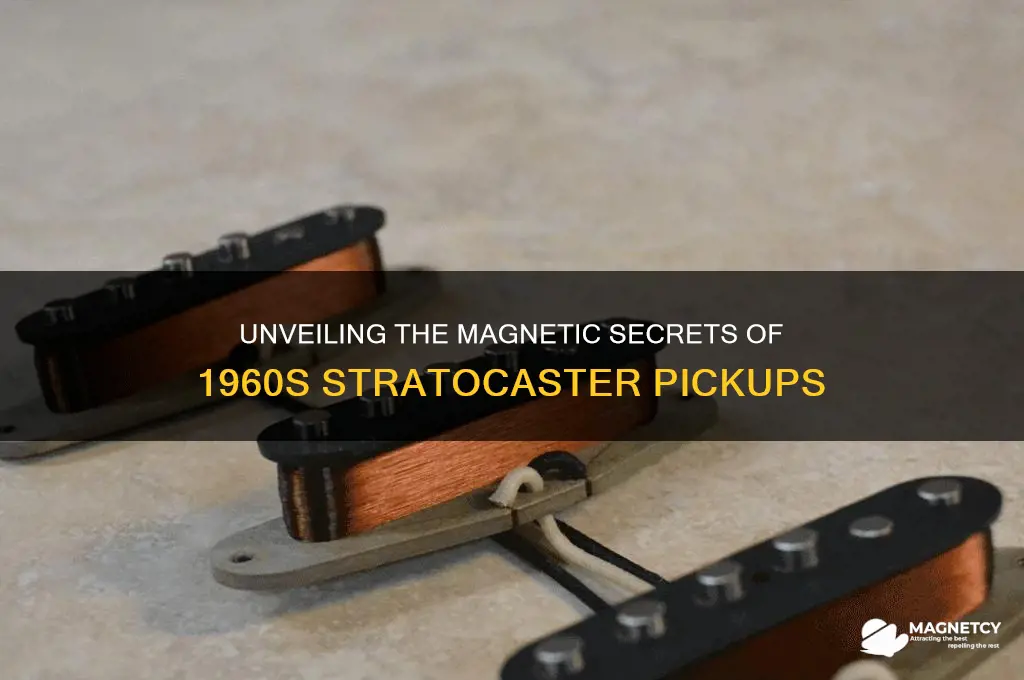

In the 1960s, Fender Stratocaster pickups relied on Alnico (aluminum-nickel-cobalt) magnets, specifically Alnico 5, to shape their iconic tone. Alnico 5 offered a balanced magnetic strength, contributing to the pickups' clear, articulate highs, warm mids, and tight lows that defined the Strat's signature sound. These magnets were chosen for their ability to provide a dynamic response, allowing players to achieve a wide range of tones from bright and twangy to smooth and creamy, making them a cornerstone of the Strat's versatility and enduring popularity.
| Characteristics | Values |
|---|---|
| Magnet Type | Alnico (Aluminum, Nickel, Cobalt alloy) |
| Common Alnico Grades | Alnico 2, Alnico 3, Alnico 5 (Alnico 5 most commonly used in 60s Strat pickups) |
| Magnet Shape | Rectangular bar or rod magnets |
| Magnet Orientation | North pole facing up (toward strings) |
| Magnetic Strength | Lower compared to modern ceramics (softer, warmer tone) |
| Tone Characteristics | Warm, smooth, and dynamic with pronounced midrange |
| Construction | Magnets inserted into fiberglass or plastic bobbins |
| Winding | Typically 7,000-8,000 turns of copper wire per coil |
| DC Resistance | ~5.5-6.5 kΩ (kilohms) per pickup |
| Polarity | Staggered pole pieces for even string response |
| Historical Accuracy | Alnico 5 magnets were standard in Fender Stratocaster pickups of the 1960s |
Explore related products
What You'll Learn
- Alnico 5 Magnets: Most common in 60s Strat pickups, offering balanced tone with clear highs and strong mids
- Magnet Staggering: Poles adjusted for string balance, ensuring even output across all strings
- Flatwork Construction: Magnets embedded in flat fiberboard, standard in vintage Strat pickups
- Alnico 2 Magnets: Used in some pickups for warmer, softer tone with reduced output
- Magnet Aging: Natural degradation over time affecting tone, sought after in vintage pickups
Alnico 5 Magnets: Most common in 60s Strat pickups, offering balanced tone with clear highs and strong mids
The Fender Stratocaster, an iconic guitar of the 1960s, owes much of its signature sound to the magnets used in its pickups. Among the various magnet types, Alnico 5 emerged as the most prevalent choice during this era. This magnet's unique properties contributed to the Strat's distinctive tonal characteristics, shaping the sound of countless classic rock and blues recordings.
The Science Behind Alnico 5's Tone
Alnico 5 magnets are composed of a specific alloy, primarily consisting of aluminum, nickel, cobalt, and iron. This composition results in a magnet with a particular magnetic field strength and coercivity, which directly influence the pickup's output and tone. When a string vibrates near an Alnico 5 magnet, it induces a voltage in the pickup coil, translating the string's movement into an electrical signal. The magnet's properties affect the signal's frequency response, emphasizing certain tonal qualities.
Crafting the 60s Strat Sound
In the context of 60s Strat pickups, Alnico 5 magnets played a pivotal role in achieving the desired tonal balance. These magnets provided a robust magnetic field, ensuring a strong signal output. This strength contributed to the pickups' ability to produce clear, articulate highs, a hallmark of the Strat's sound. Simultaneously, Alnico 5's characteristics allowed for a pronounced midrange, adding warmth and presence to the overall tone. This combination of clear highs and strong mids created a versatile sound that could cut through a mix while retaining a musical, vocal-like quality.
Practical Considerations for Guitarists
For guitarists seeking to replicate the 60s Strat tone, understanding the role of Alnico 5 magnets is essential. When choosing pickups, look for specifications mentioning Alnico 5 magnets to ensure authenticity. Additionally, the height adjustment of these pickups is critical. Experimenting with different heights can fine-tune the balance between highs and mids, allowing players to customize their tone. For a true 60s Strat experience, consider using flatwound strings, which were common during that era and can further enhance the desired tonal characteristics.
A Lasting Legacy
The use of Alnico 5 magnets in 60s Strat pickups has left an indelible mark on guitar tone. This magnet's ability to provide a balanced, musical sound has made it a favorite among guitarists and pickup manufacturers alike. While modern pickups may offer various magnet options, Alnico 5 remains a top choice for those seeking to capture the essence of the 60s Strat sound. Its unique tonal qualities continue to inspire and influence guitar music, ensuring its place in the history of electric guitar design.
Harnessing Magnetic Energy: Can Magnets Generate Sustainable Power?
You may want to see also
Explore related products
Magnet Staggering: Poles adjusted for string balance, ensuring even output across all strings
Magnet staggering in 1960s Stratocaster pickups was a critical technique to address the inherent imbalance in string-to-string output. The high E string, being the thinnest and closest to the pickup, naturally produces a stronger signal compared to the low E string, which is thicker and farther away. To compensate, pickup designers adjusted the height of individual pole pieces, positioning them closer to the low strings and slightly farther from the high strings. This ensured that each string’s magnetic field strength was balanced, resulting in even output across the fretboard. Fender’s original 60s Strat pickups, with their Alnico V magnets, relied heavily on this method to achieve the signature clarity and consistency that defined the era’s tone.
The process of staggering poles requires precision and an understanding of string dynamics. For a 60s Strat pickup, the low E pole piece might be raised to within 0.030 inches of the string, while the high E pole could be recessed to 0.050 inches or more. This adjustment is not arbitrary; it’s based on the string’s gauge, tension, and distance from the pickup. DIY enthusiasts can measure the gap using feeler gauges and adjust the poles with a small screwdriver, ensuring each string’s signal aligns with the desired balance. Over-adjusting, however, can lead to a loss of high-end sparkle or muddy lows, so incremental changes are key.
While magnet staggering is essential, it’s not the sole factor in achieving balanced output. The type of magnet used—typically Alnico V in 60s Strats—plays a significant role in determining the pickup’s overall character. Alnico V magnets offer a bright, dynamic tone with pronounced midrange, making them ideal for the Strat’s versatile sound. However, the staggering technique ensures this tonal quality is consistent across all strings. Without proper staggering, even the best magnets would fall short in delivering the even response guitarists expect from vintage Strat pickups.
A practical tip for players seeking to replicate or restore 60s Strat tone is to reference Fender’s original specifications. Vintage pickups often featured a staggered pole pattern where the A (low E) and D string poles were the tallest, followed by G and B, with the high E pole being the shortest. This pattern can be replicated using modern pickups or adjusted on existing ones. For those building custom pickups, starting with Alnico V magnets and fine-tuning the stagger based on string height and personal preference can yield results that honor the classic Strat sound while tailoring it to individual playing styles.
Revitalize Skin with Mineral-Rich Magnetic Mud Mask: A Complete Guide
You may want to see also
Explore related products
Flatwork Construction: Magnets embedded in flat fiberboard, standard in vintage Strat pickups
In the 1960s, Fender Stratocaster pickups employed a distinctive construction method known as flatwork, where magnets were embedded directly into a flat fiberboard base. This design was a hallmark of vintage Strat pickups, contributing to their unique tonal characteristics. The fiberboard, typically made from materials like Masonite or a similar composite, served as a stable and lightweight foundation for the magnets and coils. This method ensured consistent magnet placement and alignment, which was crucial for achieving the balanced and clear sound that defined the era’s Stratocasters.
Analyzing the flatwork construction reveals its practical advantages. By embedding the magnets into the fiberboard, Fender minimized the risk of misalignment during assembly, a common issue with other pickup designs. The fiberboard’s rigidity also helped maintain the structural integrity of the pickup, reducing unwanted vibrations that could muddy the tone. Additionally, this construction allowed for precise control over the magnetic field’s interaction with the coil, enhancing the pickup’s dynamic response and clarity. For guitarists seeking to replicate the 60s Strat sound, understanding this construction method is essential.
To replicate flatwork construction in a DIY pickup project, start by sourcing a flat fiberboard sheet, ideally 1/8-inch thick Masonite. Cut the board to match the dimensions of a standard Strat pickup (approximately 2.75 inches by 0.875 inches). Next, drill holes for the magnets, typically five or six Alnico V rod magnets, spaced evenly along the centerline. Insert the magnets, ensuring they are flush with the surface, and secure them with a small amount of epoxy. Once cured, attach the coil assembly, winding the wire around the bobbin to achieve the desired number of turns (typically 7,000–8,500 for vintage specs). This method requires precision but yields a pickup with authentic 60s Strat tonal qualities.
Comparing flatwork construction to modern pickup designs highlights its enduring appeal. While contemporary pickups often use plastic or metal bobbins, the fiberboard base in vintage Strats adds a subtle warmth and organic character to the tone. Modern builders sometimes emulate this design using updated materials, but purists argue that the original fiberboard construction is irreplaceable. For those restoring or replicating 60s Strats, preserving this construction method is key to capturing the era’s signature sound.
In conclusion, the flatwork construction of 60s Strat pickups, with magnets embedded in flat fiberboard, remains a benchmark for tonal authenticity. Its simplicity, precision, and contribution to the instrument’s iconic voice make it a fascinating aspect of guitar history. Whether for restoration or experimentation, mastering this technique offers a deeper appreciation for the craftsmanship behind one of the most influential electric guitars ever made.
Mastering the Magnetic Weighted Hula Hoop: Tips for Effective Use
You may want to see also
Explore related products
Alnico 2 Magnets: Used in some pickups for warmer, softer tone with reduced output
Alnico 2 magnets, with their lower magnetic strength compared to other Alnico variants, were a staple in some 1960s Stratocaster pickups. This choice wasn’t arbitrary; it was a deliberate design decision to achieve a specific tonal character. Alnico 2’s magnetic field is weaker, typically measuring around 100–200 Gauss, which results in a pickup that’s less aggressive and more dynamic. This magnet type allowed the guitar’s natural wood and string vibrations to shine through, creating a warmer, softer tone with a slightly reduced output. For players seeking a vintage, rounded sound, Alnico 2 pickups became a go-to option, particularly in the neck and middle positions where clarity and warmth are often prioritized over high output.
To understand why Alnico 2 magnets were favored in certain 60s Strat pickups, consider their impact on the pickup’s frequency response. The weaker magnetic field allows more of the guitar’s lower and mid-range frequencies to come through, while slightly rolling off the high end. This results in a tone that feels fuller and less sharp, ideal for genres like blues, jazz, or early rock. For example, a Strat equipped with Alnico 2 pickups in the neck position can produce a lush, vocal-like quality when playing chords or single-note melodies, whereas a bridge pickup with Alnico 2 might offer a smoother, less biting lead tone compared to its Alnico 5 counterpart.
If you’re looking to replicate the 60s Strat sound using Alnico 2 magnets, there are practical steps to consider. First, ensure the pickups are wound with a lower number of turns (around 7,000–8,000 turns for a typical Strat pickup) to maintain the reduced output characteristic of Alnico 2. Pairing these pickups with flatwound or pure nickel strings can further enhance the warm, vintage tone. Additionally, experiment with pickup height—lowering the pickups slightly reduces their output and emphasizes the softer, more dynamic response of the Alnico 2 magnet. This setup is particularly effective for clean tones or lightly overdriven sounds where articulation and warmth are key.
One common misconception is that Alnico 2 pickups lack versatility. While they may not deliver the high-output crunch of Alnico 5 or the clarity of Alnico 4, they excel in specific applications. For instance, rhythm guitarists in a band setting often find Alnico 2 pickups blend seamlessly with other instruments, providing a rich, supportive foundation without overpowering the mix. Similarly, studio musicians appreciate their ability to capture nuanced playing dynamics, making them a favorite for recording. The key is to match the pickup’s characteristics to the desired musical context, rather than expecting it to perform outside its tonal sweet spot.
In conclusion, Alnico 2 magnets played a unique role in shaping the sound of some 60s Strat pickups by offering a warmer, softer tone with reduced output. Their lower magnetic strength and resulting frequency response make them ideal for players seeking a vintage, dynamic sound. By understanding their properties and pairing them with the right components, guitarists can harness the full potential of Alnico 2 pickups to achieve authentic 60s Strat tones. Whether for clean rhythms or smooth leads, these magnets remain a timeless choice for those who value warmth and articulation over sheer power.
Magnetic Microwave Cover Safety: Risks, Benefits, and Best Practices
You may want to see also
Explore related products
Magnet Aging: Natural degradation over time affecting tone, sought after in vintage pickups
The magnets in 1960s Stratocaster pickups, typically Alnico 5, undergo a subtle yet transformative process known as magnet aging. This natural degradation, driven by factors like temperature fluctuations, humidity, and time, alters the magnetic field strength and uniformity. As the magnet weakens, it affects the pickup’s inductance and resonance, resulting in a softer attack, slightly reduced output, and a warmer, more rounded tone. This phenomenon is why vintage Strat pickups often exhibit a smoother, more articulate sound compared to their modern counterparts.
To understand magnet aging, consider the atomic structure of Alnico magnets. Over decades, the alignment of magnetic domains within the material shifts, leading to a gradual loss of magnetism. This isn’t a linear process; factors like storage conditions and usage play a role. For instance, a pickup stored in a dry, temperature-controlled environment will age differently than one left in a humid garage. The result is a unique tonal fingerprint, with aged pickups often prized for their midrange sweetness and reduced harshness in the high frequencies.
For those seeking to replicate this effect, artificial aging methods exist, but they rarely capture the complexity of natural degradation. One common technique involves baking pickups at low temperatures (around 150°F for 2–4 hours), but this can be inconsistent and risks damaging the coil wire. A more reliable approach is to source vintage pickups or wait for time to work its magic. If purchasing new pickups, look for models that use aged or "de-gaussed" magnets, which simulate the effects of natural aging without the wait.
The allure of magnet aging lies in its unpredictability—no two aged pickups sound exactly alike. This individuality is part of what makes vintage Strat tones so sought after. For players aiming to capture this essence, experimenting with pickups of varying ages or blending aged and modern pickups can yield intriguing results. Ultimately, magnet aging is a testament to the idea that imperfection, when it comes to tone, can be a virtue.
Exploring the World's Largest Magnet: Its Purpose and Power
You may want to see also
Frequently asked questions
The 1960s Stratocaster pickups typically used Alnico (Aluminum-Nickel-Cobalt) magnets, specifically Alnico 5, which was the standard for Fender pickups during that era.
Alnico 5 was preferred for its balanced magnetic properties, offering a clear, bright tone with a strong midrange and smooth highs, which complemented the Stratocaster's signature sound.
While Alnico 5 was the most common, some early 1960s Strat pickups may have used Alnico 3 or Alnico 2 magnets, which provided a warmer, softer tone with less output.
The magnets in 60s Strat pickups were typically unoriented Alnico 5, whereas modern pickups often use oriented Alnico magnets or other materials like ceramic, which can produce different tonal characteristics and output levels.
