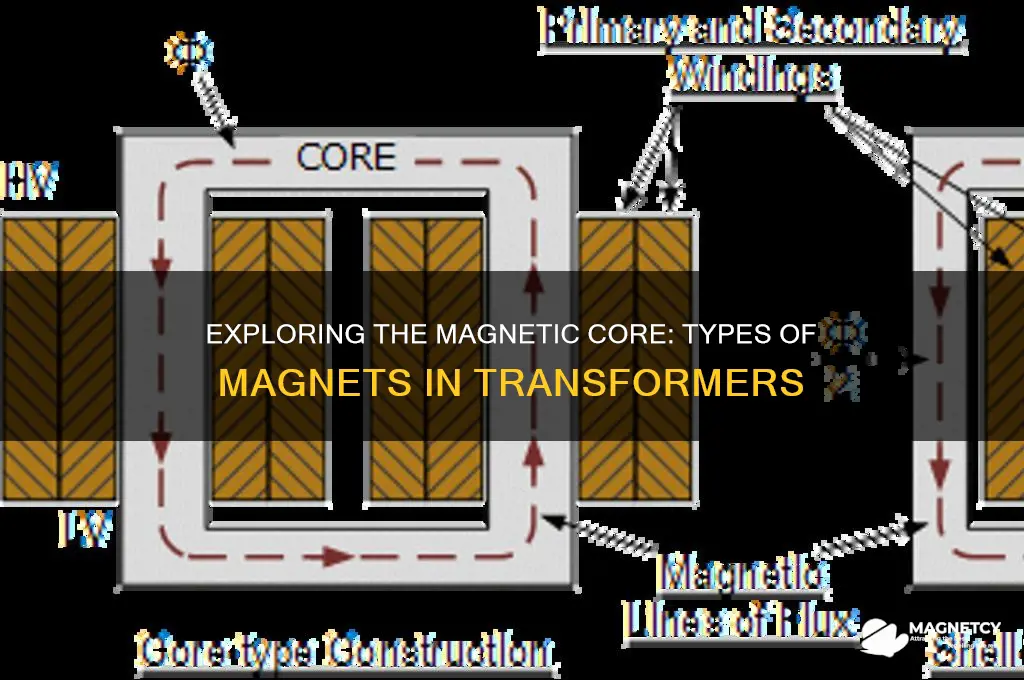

Transformers, essential components in electrical power systems, rely on high-quality magnets to efficiently transfer energy between different voltage levels. The type of magnet most commonly used in transformers is electrically soft magnetic materials, specifically silicon steel laminations. These materials are not permanent magnets but rather soft magnetic cores that easily magnetize and demagnetize with the alternating current (AC) passing through the transformer. Silicon steel, also known as electrical steel, is preferred due to its low core loss, high permeability, and ability to minimize eddy currents, which are critical for maintaining the efficiency and performance of transformers in various applications, from power distribution to electronic devices.
| Characteristics | Values |
|---|---|
| Type of Magnet | Electromagnets (not permanent magnets) |
| Core Material | Ferromagnetic materials (e.g., silicon steel, nickel-iron alloys, amorphous metals, grain-oriented electrical steel) |
| Magnetic Field Source | Alternating current (AC) flowing through the primary winding |
| Magnetic Flux | Time-varying, induced by AC current |
| Frequency Range | Typically 50 Hz or 60 Hz (power transformers), up to kHz (high-frequency transformers) |
| Hysteresis Loss | Minimized by using materials with low hysteresis loops (e.g., silicon steel) |
| Eddy Current Loss | Reduced by laminating the core or using amorphous materials |
| Saturation Characteristics | Core materials chosen to avoid saturation under operating conditions |
| Permeability | High magnetic permeability to enhance flux linkage |
| Temperature Stability | Core materials selected for stable performance across operating temperatures |
| Cost | Balanced between material cost and efficiency (e.g., silicon steel is cost-effective) |
| Applications | Power distribution, voltage regulation, electronic devices, and more |
Explore related products
What You'll Learn
- Ferrite Core Magnets: Commonly used in transformers for high frequency applications due to low losses
- Laminated Steel Cores: Reduce eddy currents, improving efficiency in power transformers
- Amorphous Metal Cores: Offer lower core losses, ideal for energy-efficient transformers
- Silicon Steel Cores: High permeability, widely used in large power transformers
- Toroidal Cores: Compact design, reduces electromagnetic interference in small transformers
Ferrite Core Magnets: Commonly used in transformers for high frequency applications due to low losses
Ferrite core magnets are the unsung heroes of high-frequency transformer applications, prized for their ability to minimize energy losses. Unlike traditional iron cores, which suffer from eddy currents at high frequencies, ferrite cores are composed of ceramic compounds like nickel-zinc or manganese-zinc. These materials exhibit high electrical resistivity, drastically reducing eddy current losses and making them ideal for transformers operating in the kHz to MHz range. This efficiency is critical in devices like power adapters, radio frequency (RF) transformers, and switching power supplies, where energy conservation and heat management are paramount.
Consider the design process for a high-frequency transformer. Selecting a ferrite core involves matching its material properties to the application’s frequency and power requirements. For instance, a transformer in a 50 kHz switching power supply might use a ferrite core with a permeability (μ) of 2000 and a Curie temperature above 120°C to ensure stability under load. Engineers must also account for the core’s geometry, as the number of turns and cross-sectional area directly impact inductance and saturation levels. Practical tip: Always consult the core’s datasheet for its frequency-dependent complex permeability to avoid unexpected performance degradation.
One of the most compelling advantages of ferrite cores is their cost-effectiveness. While powdered iron or laminated cores might offer similar performance in certain scenarios, ferrite cores strike a balance between price and efficiency. For example, a ferrite core transformer in a smartphone charger costs mere cents yet delivers reliable performance across a wide frequency spectrum. This affordability, coupled with their lightweight and compact nature, makes ferrite cores a go-to choice for consumer electronics manufacturers aiming to optimize both size and budget.
However, working with ferrite cores isn’t without challenges. Their brittleness requires careful handling during assembly, and their lower saturation flux density compared to iron cores means designers must compensate with more turns or larger cores. Additionally, ferrite’s temperature coefficient of permeability can introduce variability in inductance at elevated temperatures. Caution: Avoid operating ferrite core transformers near their Curie temperature, as this can lead to irreversible loss of magnetic properties. Regular thermal testing during the design phase can mitigate such risks.
In conclusion, ferrite core magnets are indispensable in high-frequency transformer applications due to their low-loss characteristics, cost-effectiveness, and versatility. By understanding their material properties and design nuances, engineers can harness their full potential while navigating inherent limitations. Whether in a medical device, telecommunications equipment, or everyday electronics, ferrite cores quietly enable the efficient energy transformation that powers modern technology. Practical takeaway: When designing a high-frequency transformer, prioritize ferrite cores for applications above 10 kHz, but always validate performance through prototyping and thermal analysis.
