Determining the direction of a magnetic field generated by an electric current is a fundamental concept in electromagnetism, governed by Ampère's Right-Hand Rule. This rule states that if you wrap your right hand around a straight current-carrying wire with your thumb pointing in the direction of the current, your curled fingers will indicate the direction of the magnetic field lines around the wire. For more complex arrangements, such as loops or coils, the rule can be extended to determine the field's orientation at specific points. Understanding this relationship is crucial for designing and analyzing devices like electromagnets, motors, and transformers, where the interaction between current and magnetic fields plays a central role.
| Characteristics | Values |
|---|---|
| Method Name | Right-Hand Rule (RHR) |
| Primary Principle | Relates the direction of current to the magnetic field direction. |
| Applicable Law | Ampere's Law |
| Hand Orientation | Thumb points in the direction of the current (conventional current). |
| Finger Orientation | Fingers curl in the direction of the magnetic field lines. |
| Current Type | Conventional current (positive charge flow). |
| Field Direction | Tangential to the circular path around the wire. |
| Strength Dependence | Field strength proportional to current magnitude. |
| Distance Dependence | Field strength inversely proportional to distance from the wire. |
| Field Shape | Concentric circles around a straight current-carrying wire. |
| Alternative Method | Corkscrew Rule (analogous to RHR). |
| Unit of Magnetic Field | Tesla (T) or Gauss (G). |
| Practical Application | Electromagnets, motors, solenoids, and magnetic field sensors. |
| Limitations | Assumes steady current and neglects relativistic effects. |
Explore related products
What You'll Learn
- Right-Hand Rule: Use thumb for current direction, curled fingers show magnetic field direction around wire
- Ampère's Law: Integrate current to determine magnetic field direction along closed loops
- Biot-Savart Law: Calculate field direction using cross product of current element and position vector
- Solenoid Fields: Field direction inside solenoid is parallel to axis, determined by current
- Loop Fields: Field direction at loop center depends on current direction via right-hand rule
Right-Hand Rule: Use thumb for current direction, curled fingers show magnetic field direction around wire
The direction of a magnetic field generated by an electric current can be a complex concept to grasp, but the Right-Hand Rule offers a simple, intuitive solution. This mnemonic device allows you to instantly visualize the relationship between current flow and the resulting magnetic field lines. By aligning your right thumb with the direction of current (conventional current flow, from positive to negative), your curled fingers will naturally wrap around the wire, indicating the circular direction of the magnetic field.
Imagine gripping a wire in your right hand with your thumb pointing in the direction of current flow. The way your fingers curl around the wire represents the path of magnetic field lines.
This rule is particularly useful in practical applications like electromagnetism and electronics. For instance, when designing a simple electromagnet, understanding the field direction is crucial for determining polarity and orientation. The Right-Hand Rule ensures you can predictably control the magnetic field's behavior, allowing for precise adjustments in strength and direction by manipulating the current flow.
Consider a solenoid, a coil of wire used in many electrical devices. By applying the Right-Hand Rule, you can determine the north and south poles of the solenoid's magnetic field, essential for applications like relays and motors.
While the Right-Hand Rule is a powerful tool, it's important to remember its limitations. It only applies to straight, current-carrying wires and simple geometries. For more complex arrangements, like multiple wires or curved paths, the rule becomes less straightforward. In such cases, Ampere's Law provides a more comprehensive framework for calculating magnetic fields. However, for basic scenarios, the Right-Hand Rule remains an invaluable, quick-reference guide.
When working with currents above 10 amperes or in high-frequency applications (above 1 MHz), additional factors like skin effect and proximity effect can influence magnetic field distribution, requiring more advanced analysis beyond the Right-Hand Rule.
In essence, the Right-Hand Rule is a fundamental concept in electromagnetism, offering a tangible way to understand the invisible forces at play. By mastering this simple technique, you gain a powerful tool for predicting and controlling magnetic fields in various electrical systems. Whether you're a student, hobbyist, or professional engineer, the Right-Hand Rule is an essential skill to have in your toolkit, enabling you to tackle a wide range of electromagnetic challenges with confidence and precision. For educational purposes, demonstrating the Right-Hand Rule with a simple experiment – such as observing the deflection of a compass needle near a current-carrying wire – can greatly enhance understanding and retention of this concept.
Creative Ways to Use 'Magnet' in a Sentence for Effective Communication
You may want to see also
Explore related products
$13.24 $20.99
Ampère's Law: Integrate current to determine magnetic field direction along closed loops
The magnetic field generated by a current-carrying conductor is a fundamental concept in electromagnetism, and Ampère's Law provides a powerful tool to determine its direction. This law, formulated by André-Marie Ampère, establishes a relationship between the current flowing through a conductor and the resulting magnetic field it produces. By applying Ampère's Law, we can systematically predict the magnetic field's orientation around various current distributions.
Understanding the Law:
Ampère's Law states that the line integral of the magnetic field, B, around a closed loop is proportional to the total current, I, passing through the area enclosed by that loop. Mathematically, it's expressed as ∮ B · dl = μ₀I, where μ₀ is the permeability of free space, a fundamental constant. This equation is a cornerstone in magnetostatics, allowing us to calculate magnetic fields for symmetric current configurations.
Practical Application:
To determine the magnetic field direction, imagine a closed path, or loop, around the current-carrying conductor. The law dictates that the magnetic field lines will circulate around this loop in a direction that aligns with the right-hand rule. Here's a simple procedure: Point your right thumb in the direction of the current, and the curling of your fingers indicates the magnetic field's direction around the conductor. This rule is a direct consequence of Ampère's Law and provides a quick, intuitive method for field direction determination.
Integrating Current for Complex Geometries:
For more intricate setups, such as multiple wires or coils, Ampère's Law becomes even more valuable. By choosing an appropriate closed path that symmetrically encloses the current distribution, you can integrate the current to find the magnetic field at any point along the path. This integration process involves summing up the contributions from all current elements, ensuring that the direction of the field is consistent with the right-hand rule at every point.
Caution and Considerations:
While Ampère's Law is a powerful tool, it has limitations. It assumes a steady current and is most effective for highly symmetric arrangements. Asymmetric current distributions may require more advanced techniques. Additionally, the law provides the magnetic field's direction and magnitude along the chosen path but not necessarily at all points in space. For a comprehensive understanding, combining Ampère's Law with other electromagnetic principles, such as Biot-Savart Law, is often necessary.
In summary, Ampère's Law offers a systematic approach to determining magnetic field direction by integrating current along closed loops. Its application ranges from simple wires to complex coil configurations, making it an indispensable tool in the study of electromagnetism. By understanding and applying this law, one can predict and analyze magnetic fields generated by various current setups with precision and confidence.
Do Permanent Magnets Deteriorate Faster with Frequent Use?
You may want to see also
Explore related products
Biot-Savart Law: Calculate field direction using cross product of current element and position vector
The Biot-Savart Law provides a precise method to determine the direction of a magnetic field generated by a current-carrying conductor. At its core, this law leverages the cross product of two vectors: the current element \( \mathbf{I} \, d\mathbf{l} \) and the position vector \( \mathbf{r} \). This mathematical operation not only quantifies the field’s magnitude but also reveals its direction through the resulting vector’s orientation. Understanding this cross product is essential for predicting how magnetic fields behave around wires, coils, and more complex current distributions.
To apply the Biot-Savart Law, begin by identifying the current element \( \mathbf{I} \, d\mathbf{l} \), which represents a small segment of the conductor carrying current \( I \). The position vector \( \mathbf{r} \) points from this current element to the point in space where you’re calculating the field. The cross product \( \mathbf{I} \, d\mathbf{l} \times \mathbf{r} \) yields a vector whose direction is perpendicular to both the current element and the position vector. This perpendicularity is a direct consequence of the right-hand rule, a mnemonic tool where curling your fingers around \( \mathbf{I} \, d\mathbf{l} \) toward \( \mathbf{r} \) points your thumb in the direction of the magnetic field.
Consider a practical example: a straight wire carrying current upward. For a point to the right of the wire, the position vector \( \mathbf{r} \) points horizontally rightward, while \( \mathbf{I} \, d\mathbf{l} \) points vertically upward. Applying the right-hand rule, the magnetic field at that point will point out of the plane, toward the reader. This example illustrates how the cross product inherently encodes the field’s direction based on the geometry of the current and observation point.
While the cross product is powerful, it requires careful attention to coordinate systems and vector orientations. For instance, in a circular loop of wire, the current element and position vector orientations vary continuously, demanding integration around the loop. Additionally, the Biot-Savart Law assumes steady current and neglects relativistic effects, making it most accurate for low-speed applications. Despite these limitations, mastering this method enables precise predictions of magnetic field directions in diverse configurations, from solenoids to helical coils.
In summary, the Biot-Savart Law’s use of the cross product between the current element and position vector offers a systematic approach to determining magnetic field direction. By combining vector calculus with physical intuition, such as the right-hand rule, this method bridges theory and practice. Whether analyzing simple wires or complex geometries, this technique remains indispensable for engineers, physicists, and students exploring electromagnetism.
Using Magnets to Navigate: A Simple Direction-Finding Technique
You may want to see also
Explore related products
Solenoid Fields: Field direction inside solenoid is parallel to axis, determined by current
The magnetic field inside a solenoid is a prime example of how current direction dictates field orientation. When current flows through the tightly wound coils of a solenoid, it generates a magnetic field that aligns parallel to the solenoid's axis. This predictable behavior makes solenoids invaluable in applications requiring controlled magnetic fields, such as electromagnets, inductors, and MRI machines. Understanding this relationship is fundamental to harnessing the power of electromagnetism in practical devices.

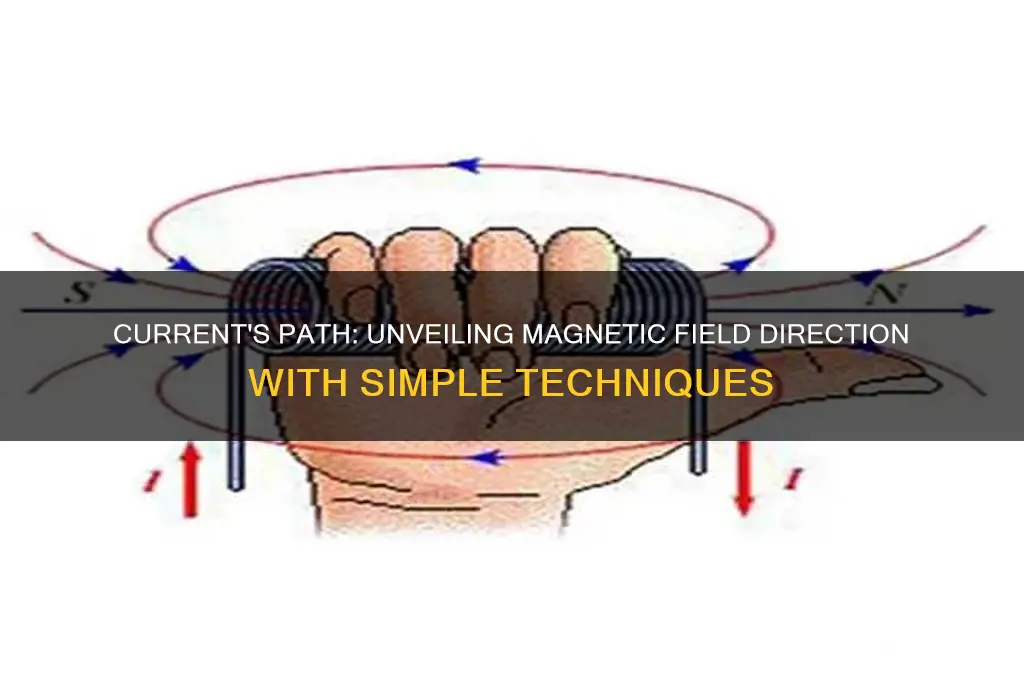

To determine the direction of the magnetic field inside a solenoid, use the right-hand grip rule. Point your right thumb in the direction of the current flow through the coils. Your curled fingers will then indicate the direction of the magnetic field lines within the solenoid. This simple mnemonic ensures accuracy in predicting field orientation, a critical skill for engineers and physicists designing electromagnetic systems. For instance, in a solenoid with current flowing upward, the magnetic field lines run from south to north along the axis, creating a uniform and strong field.
The uniformity of the magnetic field inside a solenoid is directly tied to its design. Longer solenoids with more closely wound coils produce stronger, more consistent fields. For optimal performance, ensure the coil diameter is small compared to the solenoid's length. Practical tip: When constructing a solenoid, use insulated copper wire to minimize energy loss due to resistance. For educational demonstrations, a solenoid with 100 turns and a current of 2 amperes can produce a noticeable magnetic field, easily detectable with a compass.
While solenoids offer a straightforward way to generate controlled magnetic fields, caution is necessary when working with high currents. Excessive current can overheat the wire, leading to insulation failure or even fire. Always use a current-limiting resistor or power supply with adjustable output. For safety, avoid using solenoids in environments with flammable materials. In industrial settings, solenoids should be housed in protective casings to prevent accidental contact with live wires. By adhering to these precautions, you can safely leverage the unique properties of solenoid fields in various applications.
Using Magnets for Cat Eye Effect: What Types Work Best?
You may want to see also
Explore related products
Loop Fields: Field direction at loop center depends on current direction via right-hand rule
The magnetic field at the center of a current-carrying loop isn't a mystery; it's a predictable consequence of the right-hand rule. This fundamental principle allows us to determine the field's direction with surprising ease. Imagine gripping the loop with your right hand, your thumb pointing in the direction of the current flow. Your curled fingers will naturally wrap around the loop, and their direction indicates the magnetic field lines at the center. This simple visualization is the key to unlocking the behavior of loop fields.
Imagine a flat, circular loop of wire carrying current. If the current flows clockwise, the right-hand rule tells us the magnetic field at the center points downward. Conversely, a counterclockwise current results in an upward field. This predictable relationship is crucial for designing electromagnets, motors, and countless other devices reliant on controlled magnetic fields.
While the right-hand rule provides a clear direction, understanding the underlying physics deepens our appreciation. The magnetic field generated by a current-carrying wire forms concentric circles around it. In a loop, these circles combine, resulting in a stronger, more concentrated field at the center. The right-hand rule simply reflects the direction of these combined field lines, highlighting the fundamental connection between current flow and magnetic field orientation.
Applying this knowledge is straightforward. Consider a simple electromagnet: a coil of wire wrapped around a core. By controlling the current direction through the coil, we can easily reverse the polarity of the magnet. This principle underpins the operation of electric motors, where changing current direction in coils creates rotating magnetic fields, driving mechanical motion. Understanding loop fields and the right-hand rule empowers us to manipulate magnetic forces with precision, opening doors to countless technological advancements.
Magnetic Marvels: Unveiling Birds' Navigation Secrets Through Earth's Fields
You may want to see also
Frequently asked questions
You can use the right-hand rule. Point your right thumb in the direction of the current flow. Your fingers will naturally curl around the wire, and the direction in which they curl represents the direction of the magnetic field lines.
Again, the right-hand rule applies. Point your right thumb in the direction of the current flow around the loop. Your curled fingers will indicate the direction of the magnetic field lines, which will be perpendicular to the plane of the loop and passing through its center.
The right-hand rule still works. Imagine the coil as a series of loops. Point your right thumb in the direction of the current flow in any one loop. Your curled fingers will show the direction of the magnetic field at that point. The field strength will be stronger due to the contribution of all the turns in the coil.
