Savannah Reed

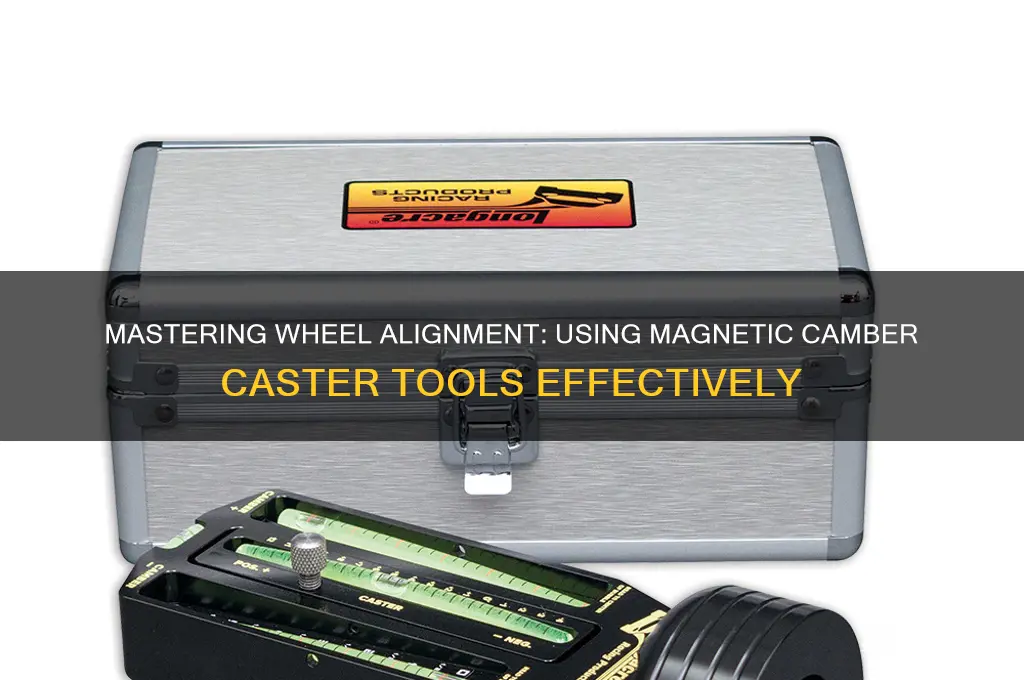

The magnetic camber caster tool is an essential device for automotive enthusiasts and professionals alike, designed to accurately measure wheel alignment parameters such as camber and caster angles. This tool simplifies the process by securely attaching to the wheel hub or brake rotor via its powerful magnet, ensuring stability during measurements. To use it effectively, start by cleaning the attachment surface to guarantee a strong magnetic bond. Place the tool on the wheel, ensuring it’s level and properly aligned with the wheel’s center. Adjust the tool’s bubble vials or digital display to read the camber and caster angles, making note of the measurements for comparison against manufacturer specifications. Regular use of this tool helps maintain optimal vehicle handling, tire wear, and safety, making it a valuable addition to any automotive toolkit.
Explore related products
What You'll Learn
- Understanding Tool Components: Identify gauge, leveling bubble, and adjustment knobs for precise camber and caster measurements
- Vehicle Preparation: Park on flat surface, engage parking brake, and stabilize wheels for accurate readings
- Measuring Camber: Attach gauge to wheel hub, read angle, and compare to manufacturer specifications for alignment
- Measuring Caster: Use caster head, turn steering, and measure angle to ensure proper steering alignment
- Adjusting and Rechecking: Make adjustments, remeasure camber and caster, and verify alignment within tolerance limits
Understanding Tool Components: Identify gauge, leveling bubble, and adjustment knobs for precise camber and caster measurements
Mastering the magnetic camber caster tool begins with understanding its core components: the gauge, leveling bubble, and adjustment knobs. Each plays a critical role in achieving precise measurements, ensuring your vehicle’s alignment is spot-on. The gauge, often a digital or analog display, provides real-time readings of camber and caster angles, typically ranging from -5° to +5° for camber and -3° to +3° for caster. Familiarize yourself with its interface, as accuracy hinges on interpreting these values correctly. Without a clear understanding of the gauge, even the most meticulous adjustments will fall short.
The leveling bubble is the unsung hero of this tool, ensuring the device is perfectly horizontal before measurements are taken. Even a slight tilt can skew results by up to 0.5°, which may seem minor but can significantly impact handling and tire wear. To use it effectively, place the tool on the vehicle’s hub or strut and adjust its position until the bubble centers within the marked circle. This step is non-negotiable—skip it, and your measurements will be unreliable. Think of the leveling bubble as the foundation of your alignment process; without it, the entire structure crumbles.
Adjustment knobs are where precision meets practicality. These knobs allow you to fine-tune the tool’s position on the vehicle, ensuring it remains securely attached and aligned with the wheel’s axis. Most tools feature at least two knobs: one for vertical alignment and another for horizontal. When tightening, apply even pressure to avoid warping the tool or damaging the vehicle’s surface. A common mistake is overtightening, which can distort readings. Aim for a snug fit—tight enough to hold the tool in place but loose enough to allow minor adjustments.
Comparing these components reveals their interdependence. The gauge relies on the leveling bubble for accuracy, while the adjustment knobs ensure both remain stable during measurement. For instance, if the tool is not level, the gauge will display incorrect angles, rendering the adjustment knobs useless. Conversely, improperly tightened knobs can cause the tool to shift, throwing off the bubble and, consequently, the gauge readings. This trifecta of components must work in harmony for precise camber and caster measurements.
In practice, start by securing the tool to the wheel hub using the adjustment knobs, ensuring the magnetic base adheres firmly. Level the tool using the bubble, then take an initial reading from the gauge. If the values are off, loosen the knobs slightly, reposition the tool, and recheck the bubble. Repeat this process until the readings stabilize. For example, if your camber reads -1.2° but should be -0.8°, adjust the suspension components incrementally, rechecking the gauge after each change. This iterative approach ensures accuracy and builds confidence in using the tool effectively.
Magnetic Marvels: How Bullet Trains Use Magnets for Speed
You may want to see also
Explore related products
Vehicle Preparation: Park on flat surface, engage parking brake, and stabilize wheels for accurate readings
Parking your vehicle on a flat, level surface is the cornerstone of accurate camber and caster measurements. Even a slight incline can skew readings, leading to incorrect adjustments. Imagine trying to measure a tilted picture frame—the angles would appear distorted. Similarly, a vehicle's wheels must be perfectly horizontal for the magnetic camber caster tool to provide reliable data. Concrete garage floors or professional alignment bays are ideal, but if using a driveway, ensure it’s free of debris and slopes. A simple bubble level placed on the floor can confirm its flatness before proceeding.
Engaging the parking brake is a safety measure that often doubles as a precision enhancer. By locking the wheels in place, you eliminate the risk of accidental movement during measurement. However, this step alone isn’t enough. Stabilizing the wheels further ensures they remain stationary, especially on vehicles with worn suspension components. Wheel chocks placed behind the tires are a practical solution, particularly for DIY enthusiasts. For added stability, consider using jack stands to support the vehicle’s weight, reducing the strain on the suspension and providing a more consistent reading environment.
The interplay between parking on a flat surface, engaging the brake, and stabilizing the wheels is critical for tool accuracy. Magnetic camber caster tools rely on precise alignment with the wheel’s centerline, which can be disrupted by even minor movements. For instance, a wheel that shifts during measurement can throw off camber readings by several degrees, leading to over- or under-adjustment. This is particularly problematic for vehicles with adjustable suspension systems, where small changes have significant impacts on handling and tire wear.
Professionals often emphasize the importance of consistency in vehicle preparation. A flat surface ensures the tool’s magnets adhere properly to the wheel hub, while a secured wheel guarantees the tool remains aligned during the measurement process. Skipping these steps can result in costly mistakes, such as uneven tire wear or compromised steering feel. For example, a 1-degree error in camber measurement can lead to a 10% reduction in tire tread life, according to industry studies. Thus, meticulous preparation isn’t just a recommendation—it’s a necessity for achieving accurate and meaningful results.
Magnet-Coil Synergy: Enhancing Coil Performance with Magnetic Intensification
You may want to see also
Explore related products
Measuring Camber: Attach gauge to wheel hub, read angle, and compare to manufacturer specifications for alignment
Attaching a magnetic camber gauge to the wheel hub is the first critical step in accurately measuring camber. Ensure the wheel is in a straight-ahead position and the vehicle is on a level surface. The gauge’s magnetic base adheres firmly to the hub, providing a stable reference point for measurement. This method eliminates the variability introduced by tire wear or surface imperfections, offering a direct reading of the wheel’s angle relative to the vertical axis. Precision here is key, as even a slight misalignment can lead to uneven tire wear, compromised handling, or reduced fuel efficiency.
Once the gauge is securely attached, read the angle displayed on the tool’s scale or digital screen. Camber is measured in degrees, typically ranging from -3° to 3°, with negative values indicating inward tilt (toward the vehicle) and positive values indicating outward tilt. Most passenger vehicles have a camber specification between -1° and 1°, but always refer to the manufacturer’s guidelines for your specific model. A deviation of just 0.5° can significantly impact performance, making this step both technical and consequential.
Comparing the measured angle to the manufacturer’s specifications is where the diagnostic process culminates. If the camber falls outside the recommended range, adjustments to the suspension components—such as strut mounts or control arms—may be necessary. This step requires not only the right tools but also an understanding of vehicle dynamics. For instance, excessive negative camber improves cornering grip but accelerates inner tire wear, while positive camber reduces tire wear but compromises stability. Balancing these factors is essential for optimal alignment.
Practical tips can streamline this process. Always measure camber with the vehicle at curb weight, as additional load can alter suspension geometry. If using a digital gauge, ensure the battery is fully charged to avoid mid-measurement failures. For vehicles with adjustable suspension, document initial settings before making changes to facilitate a return to baseline if needed. Finally, repeat measurements after adjustments to confirm accuracy, as small errors can compound during realignment. This meticulous approach ensures not just compliance with specifications but also long-term vehicle health and performance.
Mastering Wixley Magnetic Gauge: A Step-by-Step Usage Guide
You may want to see also
Explore related products
Measuring Caster: Use caster head, turn steering, and measure angle to ensure proper steering alignment
Caster angle is a critical factor in a vehicle's steering performance, influencing straight-line stability and self-centering of the steering wheel. To measure this angle accurately, a magnetic camber caster tool is indispensable. Begin by attaching the caster head of the tool to the wheel hub or spindle, ensuring it’s securely magnetized and level. This step is crucial because even a slight misalignment can skew the reading. Once attached, turn the steering wheel to the desired angle—typically full lock or a specific degree of turn—and observe the tool’s gauge. The caster angle is measured in degrees, with positive values indicating the steering axis tilts toward the rear of the vehicle, enhancing stability.
The process requires precision, as caster angles vary by vehicle make and model. For instance, a typical passenger car may have a caster angle between 2 to 6 degrees, while performance vehicles might require higher values for sharper handling. Always refer to the manufacturer’s specifications before adjusting. A common mistake is failing to account for the steering wheel’s position during measurement, which can lead to inaccurate readings. To avoid this, ensure the steering wheel is turned consistently for each measurement, and double-check the tool’s alignment.
Measuring caster isn’t just about reading a number—it’s about understanding how that angle affects driving dynamics. Positive caster improves high-speed stability but can make low-speed steering heavier, while negative caster reduces steering effort but compromises stability. This trade-off highlights the importance of precise measurement. If the caster angle is off, symptoms like wandering steering or uneven tire wear may arise, signaling the need for realignment.
For DIY enthusiasts, here’s a practical tip: use a helper to hold the steering wheel steady while you take the measurement. This ensures consistency and reduces the risk of error. Additionally, always measure caster with the vehicle on a flat surface and under normal load conditions to simulate real-world driving. If adjustments are needed, proceed cautiously—small changes in caster angle can have a significant impact on handling. By mastering this technique with a magnetic camber caster tool, you’ll ensure your vehicle’s steering alignment is optimized for both safety and performance.
Magnet Power: Can Magnets Boost Energy or Performance?
You may want to see also
Explore related products
Adjusting and Rechecking: Make adjustments, remeasure camber and caster, and verify alignment within tolerance limits
After making initial adjustments to your vehicle's suspension, the critical next step is to remeasure camber and caster using your magnetic camber/caster tool. This iterative process ensures that your alignment falls within the manufacturer's specified tolerance limits, typically ±0.5° for camber and ±1.0° for caster. Precision here directly impacts tire wear, handling, and fuel efficiency, making this step non-negotiable. Begin by reattaching the tool to the wheel hub or brake rotor, ensuring the magnetic base is securely fastened and the tool’s bubble level is calibrated. Record the new readings and compare them to the target values. If discrepancies persist, further adjustments are necessary.
The adjustment process varies depending on your vehicle’s suspension design. For camber, this often involves loosening the strut tower bolts or control arm bushings and using a pry bar or alignment tool to shift the wheel to the desired angle. For caster, adjustments typically require altering the position of the strut or control arm mounting points. After each adjustment, tighten the bolts to the manufacturer’s torque specifications (e.g., 80–120 ft-lbs for strut tower bolts) to prevent shifting under load. Failure to torque properly can lead to misalignment and safety hazards.
Once adjustments are made, recheck the camber and caster readings with the magnetic tool. Small deviations may require fine-tuning, such as tapping the suspension components with a mallet or using shims for precise alignment. For example, adding a 1mm shim to a control arm can adjust camber by approximately 0.2°, depending on the suspension geometry. Always refer to your vehicle’s service manual for specific shim sizes and adjustment points. This trial-and-error process, though time-consuming, is essential for achieving optimal alignment.
Verification is the final and most crucial step. Compare your final readings to the tolerance limits provided in the manual. If the alignment is within range, secure all components and test drive the vehicle to ensure stability and responsiveness. If not, re-evaluate your adjustments and repeat the process. Remember, even a 0.1° error can lead to uneven tire wear over time. For DIY enthusiasts, investing in a digital angle finder can complement the magnetic tool for added accuracy, especially in complex suspension systems.
In summary, adjusting and rechecking camber and caster with a magnetic tool is a methodical process that demands patience and attention to detail. By systematically making adjustments, remeasuring, and verifying alignment, you ensure your vehicle performs safely and efficiently. Treat this as a skill to refine over time, as each vehicle’s suspension behaves uniquely. With practice, you’ll develop an intuitive sense for how adjustments translate to alignment changes, making future tasks faster and more precise.
Mastering Navigation: A Beginner's Guide to Using a Magnetic Compass
You may want to see also
Frequently asked questions
A magnetic camber caster tool is a device used to measure the camber (vertical tilt) and caster (forward or backward tilt) angles of a vehicle's wheels. It attaches magnetically to the wheel hub or brake rotor, allowing for precise alignment measurements during wheel alignment procedures.
Clean the wheel hub or brake rotor surface to ensure it is free of dirt and debris. Place the magnetic base of the tool firmly against the surface, ensuring it is securely attached. Double-check that the tool is level and stable before taking measurements.
Yes, the magnetic camber caster tool is versatile and can be used on most vehicles, including cars, trucks, and SUVs. However, ensure the tool’s magnetic base is compatible with the wheel hub or brake rotor material and that the wheel size allows for proper tool placement. Always refer to the vehicle’s specifications for alignment procedures.
